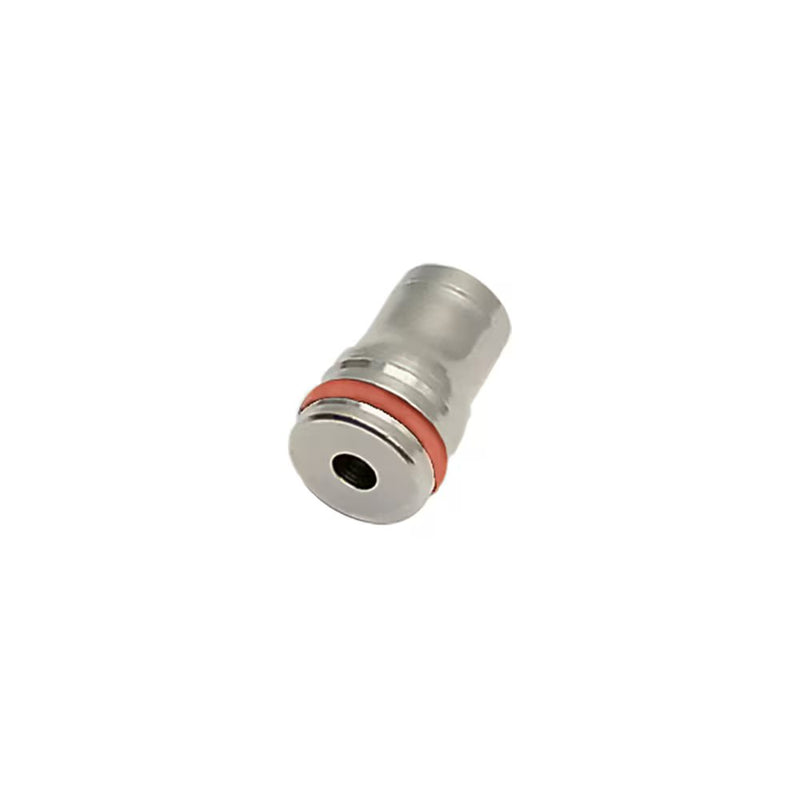

3800 08 00 by Parker | Legris Cartridge | 8 mm Tube Size | 21 mm Length | 316L Stainless Steel | Pack of 2

Save $54.81

$137.02

$137.02 - $137.02

$137.02

$82.21

$82.21 - $82.21

$82.21

by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3800 Cartridge

Package Quantity: 2 Units

Specifications for Variant SKU: 3800 08 00 Parker \| 2 \|
Series:	3800 Series
Shape (Orientation):	No Orientation
Material(s):	316L Stainless Steel
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Corrosion Resistance

Technical Characteristics:	Compatible Fluids: All fluids compatible with the fitting component materials Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889) Working Temperature: -25°C to +150°C
Advantages:	Resistance to corrosion thanks to the component material Suitable for permanent food contact Suitable for industrial cleaning agents and detergents Hygienic external design, for reducing retention zones
Regulations:	ISO 14743 RoHS REACH FDA: 21 CFR PED
Component Materials:	Body: Stainless Steel 316L Adapter: Stainless Steel 316L Collet: Stainless Steel 316L Protection Washer: Stainless Steel 316L Seals: FKM


Part Number	ØD	G	G1	H	H1	H2	N	Kg
3800 04 00	4 mm	9.8 mm	8 mm	17 mm	8.5 mm	8.5 mm	11 mm	.006 Kg
3800 06 00	6 mm	12.1 mm	10 mm	19 mm	10.5 mm	8.5 mm	13.5 mm	.008 Kg
3800 08 00	8 mm	14.8 mm	13 mm	21 mm	12.5 mm	8.5 mm	16 mm	.012 Kg
3800 10 00	10 mm	17.5 mm	15 mm	24.5 mm	14 mm	10.5 mm	20 mm	.019 Kg
