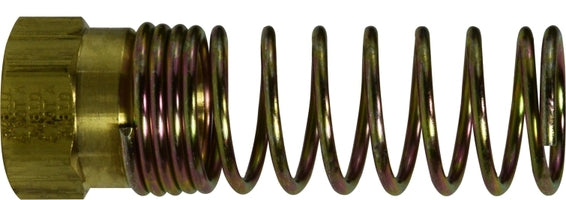

38015 (38-015) Midland DOT Air Brake Reusable Hose Fitting - Nut and Spring Assembly - 3/8" Hose ID - Brass

38015 by Midland | DOT Air Brake Reusable Hose Fitting | Nut and Spring Assembly | 3/8" Hose ID | Brass

Save $2.17 Save $2.17
$5.42
$5.42 - $5.42
$5.42
$3.25
$3.25 - $3.25
$3.25

Midland Industries
Brass Fitting - D.O.T. Air Brake Reusable Hose Fitting - Nut and Spring Assembly - Brass

Inventory @ Manufacturers Warehouse: 394 Units
Specifications for Variant SKU: 38015 Midland
Shape (Orientation): No Orientation
Material(s): Brass
Applicable Specs & Approvals: Applicable D.O.T. Requirements, Applicable SAE Standards

SPECIFICATIONS

Applications: Air Brake hose connections. Advantages: Can be used for nearly any brake line. Easy to assemble with a good selection of hose end configurations. Brass material offers excellent resistance against corrosion.
SAE Rating: N/A Conformance: Meets SAE & DOT specifications (FMVCS 10 GAL)
Pressure: Determined by maximum working pressure for hose size. Up to 125 psi Temperature Range: -40°F to + 120°F ( -40°C to +48°C )
Tolerance: +/- .02 on all dimensions.
Assembly Instructions:
  • 1) Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward fitting.
  • 2) Push hose into fitting until it bottoms.
  • 3) Screw nut until contact is made with body hex.
  • NOTE: When reassembling fitting, body and nut should be inspected. Only reuse if in proper condition. Sleeves should never be reused.
Crossover Series:
HE61NG 379 67RBSG 0999999
Part Number Hose I.D. Size Approx. Weight
(Lbs.)
38015
(38-015)		 3/8" 0.18
38016
(38-016)		 1/2" 0.24

Dimension Data can change without notice.

Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
