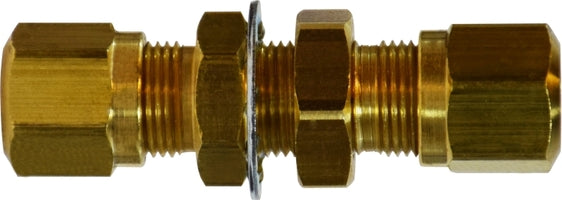

38029 (38-029) Midland DOT Air Brake Fitting (Nylon Tubing) - Bulkhead Union - 3/8" Tube OD - Brass

38029 by Midland | DOT Air Brake Fitting | Nylon Tubing | Bulkhead Union | 3/8" Tube OD | Brass

Save $1.38

$12.43

$12.43 - $12.43

$12.43

$11.05

$11.05 - $11.05

$11.05

Midland Industries
Brass Fitting - D.O.T. Air Brake Fitting (Nylon Tubing) - Bulkhead Union - Brass

Easy to assemble (no tube preparation or flaring required.) Built in tube support. Fittings utilize a ribbed sleeve for compression and positive grip. May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve. Insert should be removed for copper tubing use.

Inventory @ Manufacturers Warehouse: 247 Units

Quantity

Specifications for Variant SKU: 38029 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/8in Tube Compression, 3/8in Tube Compression, Some Ends Match
Material(s):	Brass
Applicable Specs & Approvals:	D.O.T. FMVSS 571.106, Applicable SAE Standards

SPECIFICATIONS

Applications:	Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.	Used With:	NT Nylon Tubing - SAE J844 Type A and B.
SAE Rating:	N/A	Conformance:	Meets specifications and standards of SAE and DOT FMVSS 571,106.
Vibration:	Fair Resistance.	Temperature Range:	-40°F to +200°F (-40°C to +93°C)
Tolerance:	+/- .02 on all dimensions	Pressure:	Maximum operating pressure of 150 PSI

Tube OD	1/4"	3/8"	1/2"	5/8"	3/4"
Thread Size - B	7/16-24	17/32-24	11/16-20	13/16-18	1-18

Assembly Instructions:
1) Cut tubing to desired length. 2) Slide nut and then sleeve on tubing. Threaded end of nut "A" must face toward fitting body. 3) Insert tubing into the preassembled fitting. Be sure tubing is bottomed in fitting. 4) Tighten nut to required torque as indicated on chart. Disassembling: Remove nut and pull tubing out of fitting body. Insert will remain in tubing. Reassembly: Push tubing and insert into fitting body until it bottoms. Thread nut onto fitting body.

Crossover Series:
62NABH	NT62BH	62NBH	1474	475

Part Number	Tube OD	Approx. Weight (Lbs.)
38028 (38-028)	1/4"	0.11
38029 (38-029)	3/8"	0.16
38030 (38-030)	1/2"	0.26

Dimension data can change without notice.
