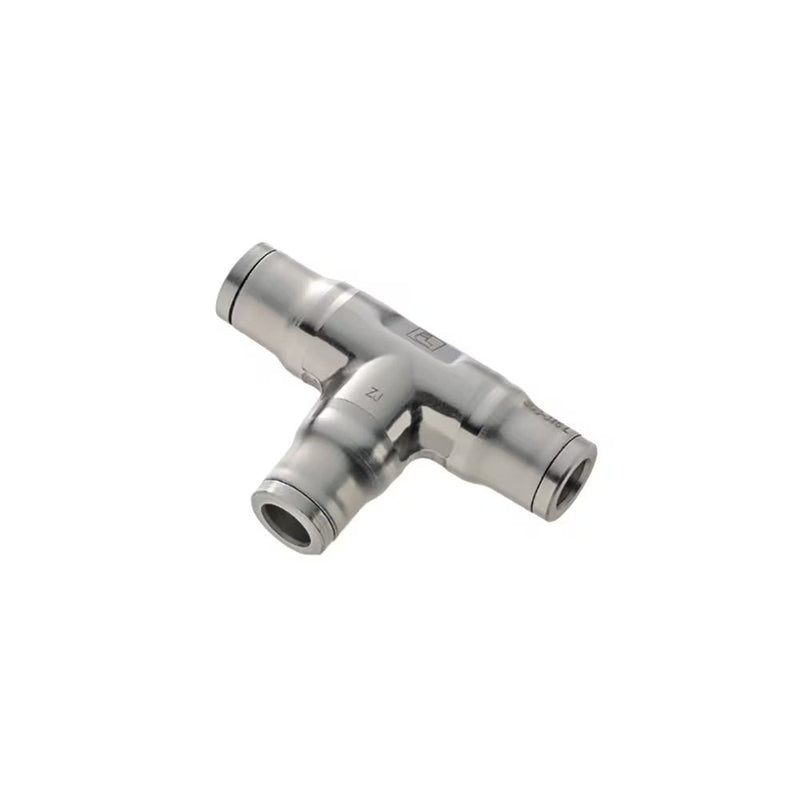

3804 06 00 by Parker | Legris Tube-to-Tube Fitting | 6 mm Tube Size | 48 mm length | Tee | 316L Stainless Steel | Pack of 2

Save $126.85

$317.12

$317.12 - $317.12

$317.12

$190.27

$190.27 - $190.27

$190.27

by Parker Hannifin
LF 3800 Push-In Fittings / Tube-to-Tube Fittings:3804 Equal Tee

Package Quantity: 2 Units

Quantity

Specifications for Variant SKU: 3804 06 00 Parker \| 2 \|
Series:	3804 Series
Shape (Orientation):	Tee
Material(s):	316L Stainless Steel
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Corrosion Resistance

Technical Characteristics:	Compatible Fluids: All fluids compatible with the fitting component materials Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889) Working Temperature: -25°C to +150°C
Advantages:	Resistance to corrosion thanks to the component material Suitable for permanent food contact Suitable for industrial cleaning agents and detergents Hygienic external design, for reducing retention zones
Regulations:	ISO 14743 RoHS REACH FDA: 21 CFR PED
Component Materials:	Body: Stainless Steel 316L Adapter: Stainless Steel 316L Collet: Stainless Steel 316L Protection Washer: Stainless Steel 316L Seals: FKM


Part Number	ØD	G	H	L/2	Kg
3804 04 00	4 mm	10 mm	22 mm	19 mm	.020 Kg
3804 06 00	6 mm	12 mm	26 mm	24 mm	.031 Kg
3804 08 00	8 mm	15 mm	29.5 mm	25 mm	.040 Kg
3804 10 00	10 mm	17.5 mm	36.5 mm	31 mm	.063 Kg
3804 12 00	12 mm	20 mm	40 mm	33 mm	.087 Kg
