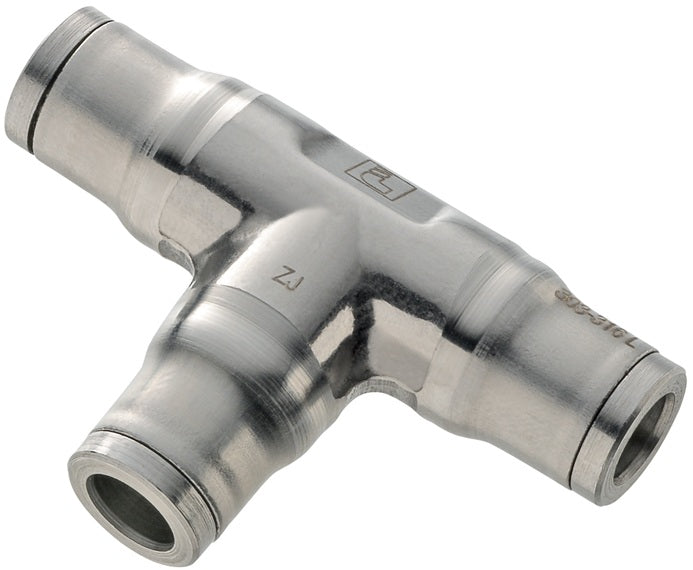

38046000 by Dixon Valve | Legris Push-In Fitting | Union Tee | 3/8" Tube OD | Stainless Steel

38046000 by Dixon Valve | Legris Push-In Fitting | Union Tee | 3/8" Tube OD | Stainless Steel

Save $12.75 Save $12.75
$241.14
$241.14 - $241.14
$241.14
$228.39
$228.39 - $228.39
$228.39

Dixon Valve & Coupling
Legris Push-In Fitting | Union Tee | Tube End x Tube End

Suitable for many industries such as: medical, chemical transfer, pharmaceutical, petrochemicals, paper industry, food processing.
Specifications for Variant SKU: 38046000 Dixon
Brand: Legris
Shape (Orientation): Tee
Ends Configuration: 3/8in Push-to-Connect, 3/8in Push-to-Connect, Some Ends Match
Material(s): 316 Stainless Steel
Seal Material(s): Viton/FKM
Compatible with a Range of Tubes:
  • Semi-rigid nylon tube
  • Flexible polyurethane tube
  • Low density polyethylene
  • PTFE tube FEP 140
  • Stainless steel and copper tube (when grooved)
Features:
  • Internal hex allows ease of assembly in tight places.
Construction:
  • AISI 316 stainless steel body with 316L stainless steel backup washer and 303L stainless steel collet.
  • Silicone free.
  • FKM O-ring.
Specifications:
  • Temperature range: -13°F to 302°F (-25°C to 150°C)
  • Maximum operating pressure: 435 PSI (30 bar)
  • Vacuum capability: 28" HG
Approvals:
  • Materials conforming to FDA and 1934/2004 CE standards.
Safety Notes:
  • Maximum circuit pressure depends equally on the type and diameter of the tube used.
  • Thread sealant does not come pre-applied on male threads, allowing the appropriate sealant for the application to be applied by the user.
Part Number Tube O.D.
38045600 1/4"
38046000 3/8"
38046200 1/2"
