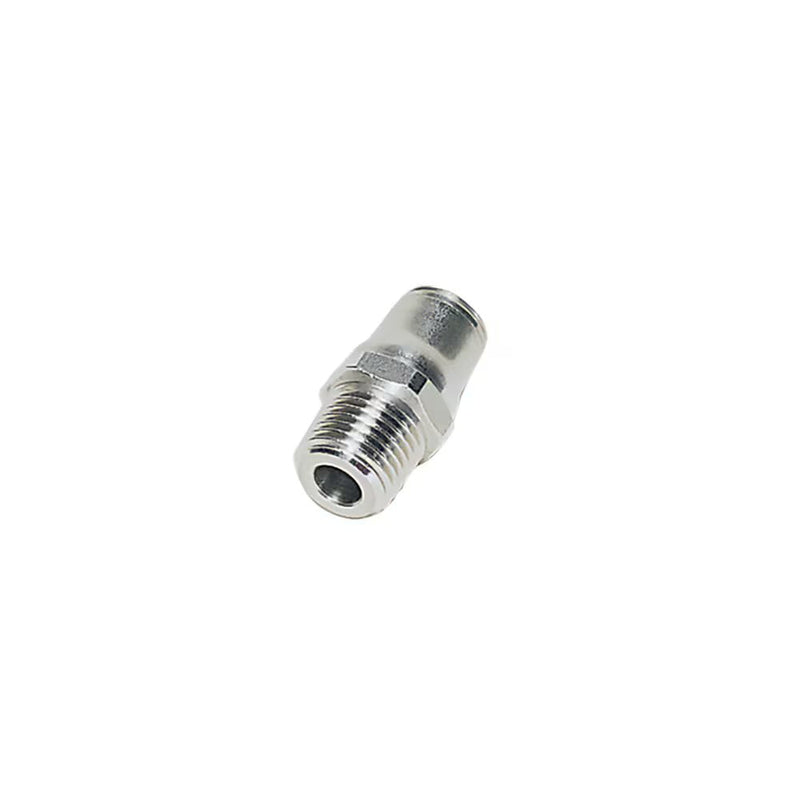

3805 10 14 by Parker | Legris Stud Fitting | 10 mm Tube Size x 1/4" Male NPT Thread | 19 mm Hex | Straight | 316L Stainless Steel | Pack of 5

Save $177.33

$443.33

$443.33 - $443.33

$443.33

$266.00

$266.00 - $266.00

$266.00

by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3805 Stud Fitting, Male NPT Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 3805 10 14 Parker \| 5 \|
Series:	3805 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Corrosion Resistance

Technical Characteristics:	Compatible Fluids: All fluids compatible with the fitting component materials Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889) Working Temperature: -25°C to +150°C
Advantages:	Resistance to corrosion thanks to the component material Suitable for permanent food contact Suitable for industrial cleaning agents and detergents Hygienic external design, for reducing retention zones
Regulations:	ISO 14743 RoHS REACH FDA: 21 CFR PED
Component Materials:	Body: Stainless Steel 316L Adapter: Stainless Steel 316L Collet: Stainless Steel 316L Protection Washer: Stainless Steel 316L Seals: FKM


Part Number	ØD	C	F	F1	H	Kg
3805 04 11	4 mm	1/8"	11 mm	3 mm	14.5 mm	.009 Kg
3805 06 11	6 mm	1/8"	13 mm	4 mm	18 mm	.012 Kg
3805 06 14	6 mm	1/4"	14 mm	4 mm	16.5 mm	.017 Kg
3805 08 11	8 mm	1/8"	15 mm	5 mm	19 mm	.015 Kg
3805 08 14	8 mm	1/4"	15 mm	6 mm	18 mm	.018 Kg
3805 10 14	10 mm	1/4"	19 mm	6 mm	24 mm	.028 Kg
3805 10 18	10 mm	3/8"	19 mm	7 mm	22.5 mm	.031 Kg
3805 12 14	12 mm	1/4"	22 mm	7 mm	25 mm	.034 Kg
3805 12 18	12 mm	3/8"	22 mm	8 mm	24 mm	.039 Kg
3805 12 22	12 mm	1/2"	22 mm	10 mm	23 mm	.045 Kg
