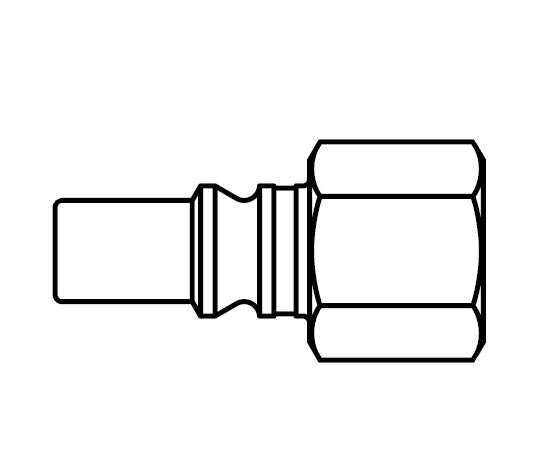

3806 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 310 Series | 3/8" Female NPTF x 3/8" Body Size | Plug | Steel

3806 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 310 Series | 3/8" Female NPTF x 3/8" Body Size | Plug | Steel

$17.35 - $17.35
$17.35
$17.35 - $17.35
$17.35

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 310 Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 210/310 series pneumatic couplings have a pin-type one-way shut off operation.
Specifications for Variant SKU: 3806 Danfoss
Brand: Hansen
Series: 310 Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Automatic push-to-connect.
  • Pin-lock design.
Applications & Markets:
  • Construction
  • Maintenance and Repair
  • In-plant/Industrial
  • Pneumatic Tools
Materials:
  • Standard body material: Zinc trivalent plated carbon steel.
  • Standard seal material: Buna-N.
  • Alloy steel locking pins.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
210 1/4" 17 bar 250 psi 68 bar 1,000 psi 538 lpm 19 scfm
310 3/8" 17 bar 250 psi 68 bar 1,000 psi 1,415 lpm 50 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
310 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
310 Socket/Female 3/8" 3/8" 3/8-18 Male NPTF Steel 1 2.1"
(53.3mm)		 1.21"
(30.7mm)		 0.94"
(23.9mm)
310 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
C D Hex
3806 Socket/Female 3/8" 3/8" 3/8-18 Male NPTF Steel 2 1.84"
(46.7mm)		 0.94"
(23.9mm)		 0.81"
(20.6mm)
