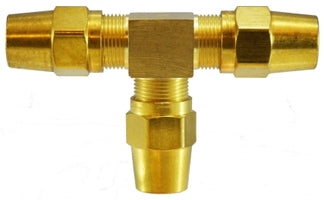

38188 (38-188) Midland DOT Air Brake Fitting (Copper Tubing) - Tee - 1/4" Tube OD - Brass

38188 by Midland | DOT Air Brake Fitting | Copper Tubing | 1/4" Tube OD | Tee | Brass

Save $1.06

$9.50

$9.50 - $9.50

$9.50

$8.44

$8.44 - $8.44

$8.44

Midland Industries
Brass Fitting - D.O.T. Air Brake Fitting (Copper Tubing) - Tee - Brass

Quantity

Specifications for Variant SKU: 38188 Midland
Shape (Orientation):	Tee
Ends Configuration:	1/4in Tube Compression, 1/4in Tube Compression, 1/4in Tube Compression
Material(s):	Brass
Applicable Specs & Approvals:	Applicable D.O.T. Requirements, D.O.T. FMVSS 49 571.106, Applicable SAE Standards

SAE Rating:	SAE# 120401BA	Tolerance:	+/- .02 on all dimensions

Crossover Series:
64AB	AB64	264AB	1364


Part Number	Tube OD	A	Approx. Weight (Lbs.)
38188 (38-188)	1/4"	0.62"	0.16
38189 (38-189)	3/8"	0.82"	0.24
38190 (38-190)	1/2"	0.94"	0.48
38191	5/8"	-	0.60

Dimension data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
