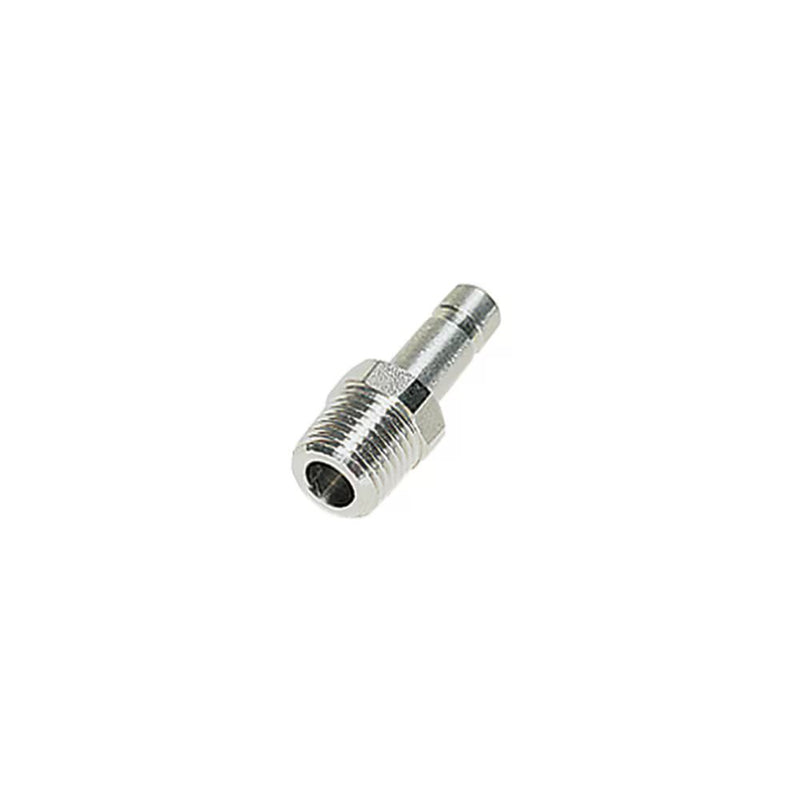

3821 60 18 by Parker | Legris Stud Standpipe | 3/8" Tube Size x 3/8" Male NPT Thread | 19 mm Hex | Straight | 316L Stainless Steel

3821 60 18 by Parker | Legris Stud Standpipe | 3/8" Tube Size x 3/8" Male NPT Thread | 19 mm Hex | Straight | 316L Stainless Steel | Pack of 2

Save $13.36 Save $13.36
$91.44
$91.44 - $91.44
$91.44
$78.08
$78.08 - $78.08
$78.08

by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3821 Stud Standpipe, Male NPT Thread

Package Quantity: 2 Units

Specifications for Variant SKU: 3821 60 18 Parker | 2 |
Series: 3821 Series
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): FKM
Special Properties: Food Grade, Silicone Free, Corrosion Resistance
Technical Characteristics:
  • Compatible Fluids: All fluids compatible with the fitting component materials
  • Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Resistance to corrosion thanks to the component material
  • Suitable for permanent food contact
  • Suitable for industrial cleaning agents and detergents
  • Hygienic external design, for reducing retention zones
Regulations:
  • ISO 14743
  • RoHS
  • REACH
  • FDA: 21 CFR
  • PED
Component Materials:
  • Body: Stainless Steel 316L
  • Adapter: Stainless Steel 316L
  • Collet: Stainless Steel 316L
  • Protection Washer: Stainless Steel 316L
  • Seals: FKM
Part Number ØD C F H Kg
3821 56 11 1/4" 1/8" 10 mm 26 mm .009 Kg
3821 56 14 1/4" 1/4" 14 mm 27 mm .016 Kg
3821 60 18 3/8" 3/8" 19 mm 32 mm .028 Kg
3821 62 18 1/2" 3/8" 19 mm 37 mm .025 Kg
