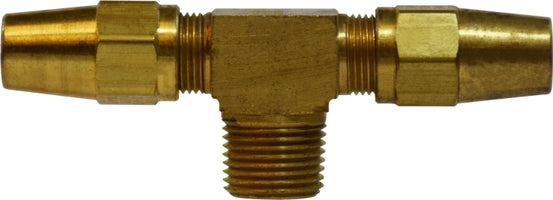

38279 (38-279) Midland DOT Air Brake Fitting (Copper Tubing) - Male Branch Tee - 3/8" Tube OD x 3/8" Tube OD x 3/8" Male NPTF - Brass

38279 by Midland | DOT Air Brake Fitting | Copper Tubing | Branch 3/8" Tube OD x 3/8" Tube OD x 3/8" Male NPTF | Tee | Brass

Save $0.97

$6.27

$6.27 - $6.27

$6.27

$5.30

$5.30 - $5.30

$5.30

Midland Industries
Brass Fitting - D.O.T. Air Brake Fitting (Copper Tubing) - Male Branch Tee - Brass

Inventory @ Manufacturers Warehouse: 8 Units

Quantity

Specifications for Variant SKU: 38279 Midland
Shape (Orientation):	Tee
Ends Configuration:	3/8in Tube Compression, 3/8in Tube Compression, 3/8in Male NPTF, Some Ends Match
Material(s):	Brass
Applicable Specs & Approvals:	D.O.T. FMVSS 571.106, Applicable SAE Standards

SPECIFICATIONS

SAE Rating:	SAE# 120425BA	Tolerance:	+/- .02 on all dimensions

Crossover Series:
72AB	AB72	272AB	1372


Part Number	Tube OD x Male NPTF	A	B	Approx. Weight (Lbs.)
38278 (38-278)	3/8" x 1/4"	0.78"	0.91"	0.18
38279 (38-279)	3/8" x 3/8"	0.85"	0.92"	0.24

Dimension data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
