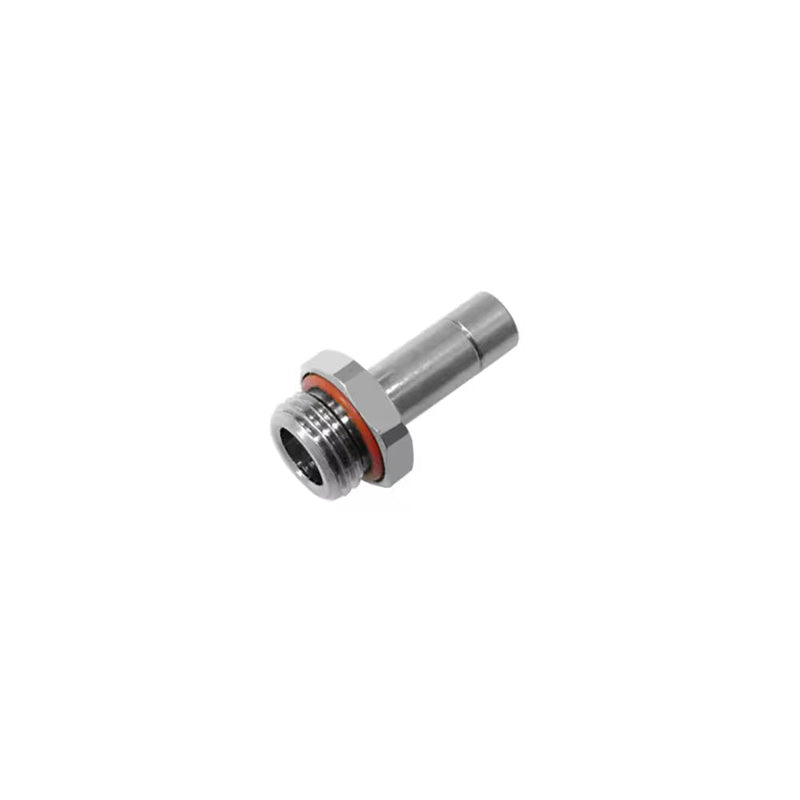

3831 04 10 by Parker | Legris Stud Standpipe | 4mm Tube Size x 1/8" Male BSPP Thread | 13mm Hex | Straight | 316L Stainless Steel | Pack of 2

Save $49.14

$122.85

$122.85 - $122.85

$122.85

$73.71

$73.71 - $73.71

$73.71

by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3831 Stud Standpipe, Male BSPP and Metric Thread

Package Quantity: 2 Units

Specifications for Variant SKU: 3831 04 10 Parker \| 2 \|
Series:	3831 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Corrosion Resistance

Technical Characteristics:	Compatible Fluids: All fluids compatible with the fitting component materials Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889) Working Temperature: -25°C to +150°C
Advantages:	Resistance to corrosion thanks to the component material Suitable for permanent food contact Suitable for industrial cleaning agents and detergents Hygienic external design, for reducing retention zones
Regulations:	ISO 14743 RoHS REACH FDA: 21 CFR PED
Component Materials:	Body: Stainless Steel 316L Adapter: Stainless Steel 316L Collet: Stainless Steel 316L Protection Washer: Stainless Steel 316L Seals: FKM


Part Number	ØD	C	F	H	Kg
3831 04 19	4 mm	M5x0.8	10 mm	23.5 mm	.004 Kg
3831 04 10	4 mm	1/8"	13 mm	22 mm	.008 Kg
3831 06 10	6 mm	1/8"	13 mm	24 mm	.009 Kg
3831 06 13	6 mm	1/4"	17 mm	24 mm	.015 Kg
3831 08 10	8 mm	1/8"	13 mm	25 mm	.010 Kg
3831 08 13	8 mm	1/4"	17 mm	27 mm	.019 Kg
3831 10 13	10 mm	1/4"	17 mm	32 mm	.021 Kg
3831 10 17	10 mm	3/8"	21 mm	32 mm	.025 Kg
3831 12 13	12 mm	1/4"	17 mm	33 mm	.021 Kg
3831 12 17	12 mm	3/8"	21 mm	33 mm	.028 Kg
3831 12 21	12 mm	1/2"	24 mm	36 mm	.043 Kg
