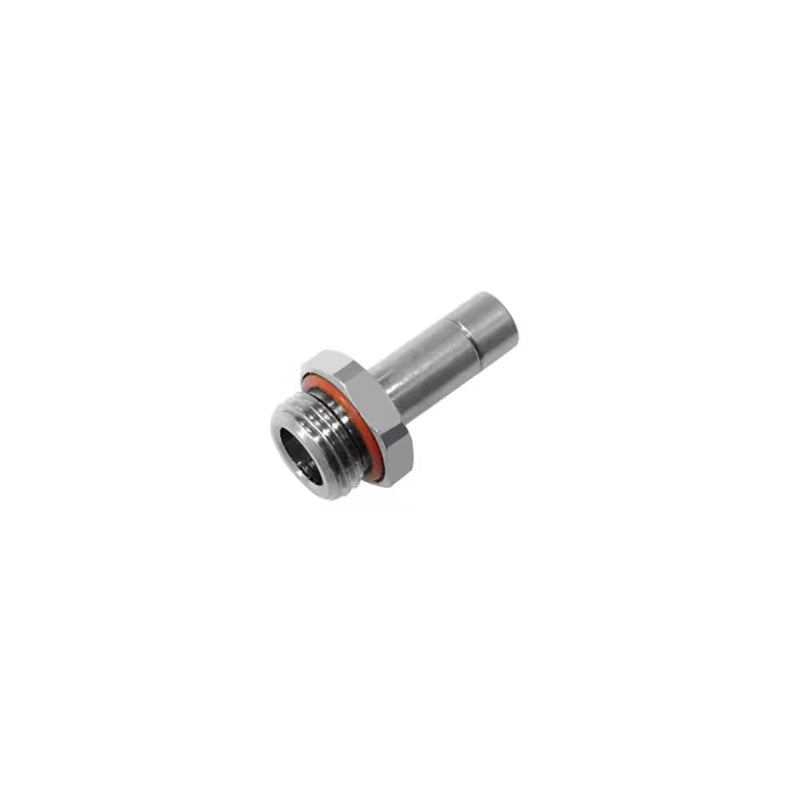

3831 10 13 by Parker | Legris Stud Standpipe | 10mm Tube Size x 1/4" Male BSPP Thread | 17mm Hex | Straight | 316L Stainless Steel | Pack of 2

Save $89.69

$224.22

$224.22 - $224.22

$224.22

$134.53

$134.53 - $134.53

$134.53

by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3831 Stud Standpipe, Male BSPP and Metric Thread

Package Quantity: 2 Units

Specifications for Variant SKU: 3831 10 13 Parker \| 2 \|
Series:	3831 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free, Corrosion Resistance

Technical Characteristics:	Compatible Fluids: All fluids compatible with the fitting component materials Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889) Working Temperature: -25°C to +150°C
Advantages:	Resistance to corrosion thanks to the component material Suitable for permanent food contact Suitable for industrial cleaning agents and detergents Hygienic external design, for reducing retention zones
Regulations:	ISO 14743 RoHS REACH FDA: 21 CFR PED
Component Materials:	Body: Stainless Steel 316L Adapter: Stainless Steel 316L Collet: Stainless Steel 316L Protection Washer: Stainless Steel 316L Seals: FKM


Part Number	ØD	C	F	H	Kg
3831 04 19	4 mm	M5x0.8	10 mm	23.5 mm	.004 Kg
3831 04 10	4 mm	1/8"	13 mm	22 mm	.008 Kg
3831 06 10	6 mm	1/8"	13 mm	24 mm	.009 Kg
3831 06 13	6 mm	1/4"	17 mm	24 mm	.015 Kg
3831 08 10	8 mm	1/8"	13 mm	25 mm	.010 Kg
3831 08 13	8 mm	1/4"	17 mm	27 mm	.019 Kg
3831 10 13	10 mm	1/4"	17 mm	32 mm	.021 Kg
3831 10 17	10 mm	3/8"	21 mm	32 mm	.025 Kg
3831 12 13	12 mm	1/4"	17 mm	33 mm	.021 Kg
3831 12 17	12 mm	3/8"	21 mm	33 mm	.028 Kg
3831 12 21	12 mm	1/2"	24 mm	36 mm	.043 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
