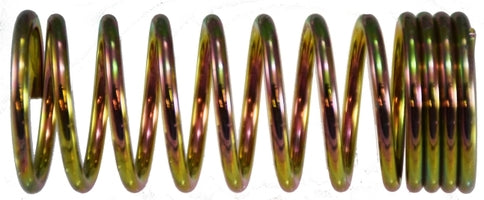

38351 (38-351) Midland DOT Air Brake Reusable Hose Fitting - Spring - 3/8" Hose ID - Brass

38351 by Midland | DOT Air Brake Reusable Hose Fitting | Spring | 3/8" Hose ID | Brass

Save $0.87 Save $0.87
$2.17
$2.17 - $2.17
$2.17
$1.30
$1.30 - $1.30
$1.30

Midland Industries
Brass Fitting - D.O.T. Air Brake Reusable Hose Fitting - Spring - Brass

Inventory @ Manufacturers Warehouse: 619 Units
Specifications for Variant SKU: 38351 Midland
Shape (Orientation): No Orientation
Material(s): Brass
Applicable Specs & Approvals: Applicable D.O.T. Requirements, Applicable SAE Standards

SPECIFICATIONS

Applications: Air Brake hose connections. Advantages: Can be used for nearly any brake line. Easy to assemble with a good selection of hose end configurations. Brass material offers excellent resistance against corrosion.
SAE Rating: N/A Conformance: Meets SAE & DOT specifications (FMVCS 10 GAL)
Pressure: Determined by maximum working pressure for hose size. Up to 125 psi Temperature Range: -40°F to + 120°F ( -40°C to +48°C )
Tolerance: +/- .02 on all dimensions.
Assembly Instructions:
  • 1) Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward fitting.
  • 2) Push hose into fitting until it bottoms.
  • 3) Screw nut until contact is made with body hex.
  • NOTE: When reassembling fitting, body and nut should be inspected. Only reuse if in proper condition. Sleeves should never be reused.
Crossover Series:
61HSG HE61G #60SG 0901045 3380-C 377
Part Number Hose I.D. Size Approx. Weight
(Lbs.)
38351
(38-351)		 3/8" 0.20
38352
(38-352)		 1/2" 0.22

Dimension Data can change without notice.
