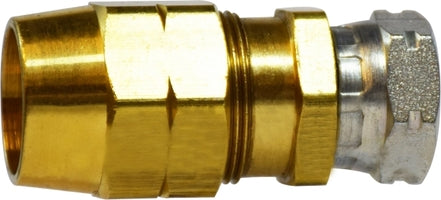

38357 (38-357) Midland DOT Air Brake Reusable Hose Fitting - Female Connector Hose - 3/8" Hose ID x 3/4-20 Female ABS - Brass

38357 by Midland | DOT Air Brake Reusable Hose Fitting | Connector Hose | 3/8" Hose ID x 3/4-20 Female ABS | Brass

Save $14.41 Save $14.41
$36.02
$36.02 - $36.02
$36.02
$21.61
$21.61 - $21.61
$21.61

Midland Industries
Brass Fitting - D.O.T. Air Brake Reusable Hose Fitting - Female Connector Hose - Brass

Inventory @ Manufacturers Warehouse: 1450 Units
Specifications for Variant SKU: 38357 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Reusable Hose End, 3/4in Reusable Hose End
Material(s): Brass
Applicable Specs & Approvals: Applicable D.O.T. Requirements, Applicable SAE Standards

SPECIFICATIONS

Applications: Air Brake hose connections. Advantages: Can be used for nearly any brake line. Easy to assemble with a good selection of hose end configurations. Brass material offers excellent resistance against corrosion.
SAE Rating: N/A Conformance: Meets SAE & DOT specifications (FMVCS 10 GAL)
Pressure: Determined by maximum working pressure for hose size. Up to 125 psi Temperature Range: -40°F to + 120°F ( -40°C to +48°C )
Tolerance: +/- .02 on all dimensions.
Assembly Instructions:
  • 1) Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward fitting.
  • 2) Push hose into fitting until it bottoms.
  • 3) Screw nut until contact is made with body hex.
  • NOTE: When reassembling fitting, body and nut should be inspected. Only reuse if in proper condition. Sleeves should never be reused.
Crossover Series:
66HEA #66ABS 66RBSV 3380B-Y7 386
Part Number Hose I.D. x Female ABS Approx. Weight
(Lbs.)
38357
(38-357)		 3/8" x 3/4-20 0.24
38358
(38-358)		 1/2" x 7/8-20 0.39

Dimension Data can change without notice.

Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
