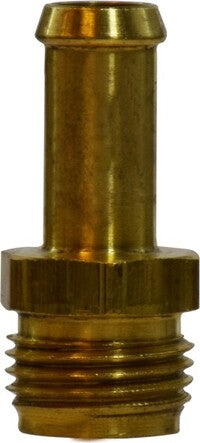

38834 (38-834) Midland Fuel Hose Barb - Inverted Flare Male Connector - 3/8" Hose ID x 5/16" Male Inverted Flare - Brass

38834 by Midland | Fuel Hose Barb | Inverted Flare Connector | 3/8" Hose ID x 5/16" Male Inverted Flare | Brass

Save $2.88 Save $2.88
$7.20
$7.20 - $7.20
$7.20
$4.32
$4.32 - $4.32
$4.32

Midland Industries
Brass Fitting - Fuel Hose Barb - Inverted Flare Male Connector

Inventory @ Manufacturers Warehouse: 39 Units
Specifications for Variant SKU: 38834 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 5/16in Male Inverted Flare
Material(s): Brass

SPECIFICATIONS

Applications: Low pressure air, fuel and oil applications. Generally used for automotive, light truck, and small engine fuel lines. Used With: Use with fuel hose SAE 30R7 & SAE 30R9.
SAE Rating: N/A Conformance: N/A
Vibration: N/A Temperature Range: N/A
Tolerance: N/A Lead Free: N/A
Advantages: Easy to assemble, just push the fitting into the hose & clamp. Good selection of configurations at reasonable cost.
Crossover Series:
269HB 159IN 291FSB
Part Number Hose ID Male Inverted Flare IND #
38828
(38-828) 		5/16" 1/4" 1598
38830
(38-830) 		5/16" 5/16" 1560
38832
(38-832) 		5/16" 3/8" 1561
38834
(38-834) 		3/8" 5/16" 1568
38836
(38-836) 		3/8" 3/8" 1570
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
