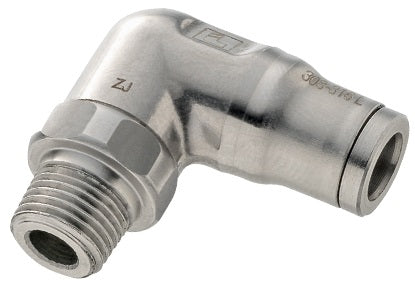

38896218 by Dixon Valve | Legris Push-In Fitting | Male Connector | 90° Elbow | 1/2" Tube OD x 3/8" Male NPT | Stainless Steel

38896218 by Dixon Valve | Legris Push-In Fitting | Male Connector | 90° Elbow | 1/2" Tube OD x 3/8" Male NPT | Stainless Steel

Save $170.50 Save $170.50
$426.25
$426.25 - $426.25
$426.25
$255.75
$255.75 - $255.75
$255.75

Dixon Valve & Coupling
Legris Push-In Fitting | Male Connector | 90° Elbow | Tube End x Male NPT

Suitable for many industries such as: medical, chemical transfer, pharmaceutical, petrochemicals, paper industry, food processing.

Note: Body is orientable for positioning purposes.
Specifications for Variant SKU: 38896218 Dixon
Brand: Legris
Shape (Orientation): Straight
Ends Configuration: 1/2in Push-to-Connect, 3/8in Male NPT
Material(s): 316 Stainless Steel
Seal Material(s): Viton/FKM
Compatible with a Range of Tubes:
  • Semi-rigid nylon tube
  • Flexible polyurethane tube
  • Low density polyethylene
  • PTFE tube FEP 140
  • Stainless steel and copper tube (when grooved)
Features:
  • Internal hex allows ease of assembly in tight places.
Construction:
  • AISI 316 stainless steel body with 316L stainless steel backup washer and 303L stainless steel collet.
  • Silicone free.
  • FKM O-ring.
Specifications:
  • Temperature range: -13°F to 302°F (-25°C to 150°C)
  • Maximum operating pressure: 435 PSI (30 bar)
  • Vacuum capability: 28" HG
Approvals:
  • Materials conforming to FDA and 1934/2004 CE standards.
Safety Notes:
  • Maximum circuit pressure depends equally on the type and diameter of the tube used.
  • Thread sealant does not come pre-applied on male threads, allowing the appropriate sealant for the application to be applied by the user.
Part Number Tube O.D. Male NPT
38895611 1/4" 1/8"
38895614 1/4" 1/4"
38896014 3/8" 1/4"
38896018 3/8" 3/8"
38896218 1/2" 3/8"
38896222 1/2" 1/2"
