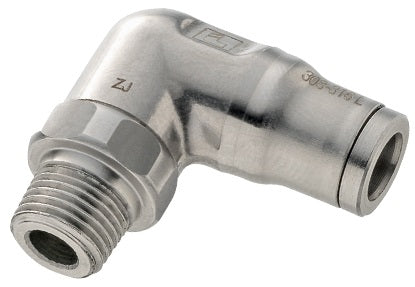

38896222 by Dixon Valve | Legris Push-In Fitting | Male Connector | 90° Elbow | 1/2" Tube OD x 1/2" Male NPT | Stainless Steel

Save $15.35

$283.22

$283.22 - $283.22

$283.22

$267.87

$267.87 - $267.87

$267.87

Dixon Valve & Coupling
Legris Push-In Fitting | Male Connector | 90° Elbow | Tube End x Male NPT

Suitable for many industries such as: medical, chemical transfer, pharmaceutical, petrochemicals, paper industry, food processing.

Note: Body is orientable for positioning purposes.

Quantity

Specifications for Variant SKU: 38896222 Dixon
Brand:	Legris
Shape (Orientation):	Straight
Ends Configuration:	1/2in Push-to-Connect, 1/2in Male NPT
Material(s):	316 Stainless Steel
Seal Material(s):	Viton/FKM

Compatible with a Range of Tubes:
Semi-rigid nylon tube Flexible polyurethane tube Low density polyethylene PTFE tube FEP 140 Stainless steel and copper tube (when grooved)
Features:
Internal hex allows ease of assembly in tight places.
Construction:
AISI 316 stainless steel body with 316L stainless steel backup washer and 303L stainless steel collet. Silicone free. FKM O-ring.
Specifications:
Temperature range: -13°F to 302°F (-25°C to 150°C) Maximum operating pressure: 435 PSI (30 bar) Vacuum capability: 28" HG
Approvals:
Materials conforming to FDA and 1934/2004 CE standards.
Safety Notes:
Maximum circuit pressure depends equally on the type and diameter of the tube used. Thread sealant does not come pre-applied on male threads, allowing the appropriate sealant for the application to be applied by the user.

Part Number	Tube O.D.	Male NPT
38895611	1/4"	1/8"
38895614	1/4"	1/4"
38896014	3/8"	1/4"
38896018	3/8"	3/8"
38896218	1/2"	3/8"
38896222	1/2"	1/2"
