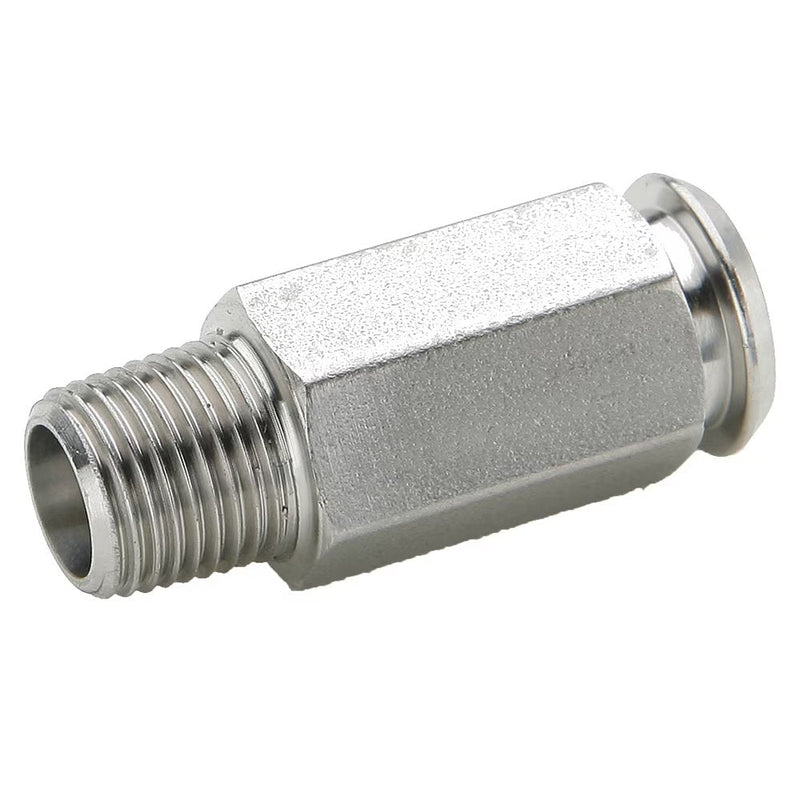

391PSS-4-2 by Parker | Poly-Tite Fittings | Coupler Body | 1/4" Insert Diameter x 1/8" Male Pipe Thread | .500" Hex | 1.271" Length | Straight | Stainless Steel

Save $11.25

$123.73

$123.73 - $123.73

$123.73

$112.48

$112.48 - $112.48

$112.48

by Parker Hannifin
Poly-Tite Fittings:Pipe Coupler Body 391PSS

Quantity

Specifications for Variant SKU: 391PSS-4-2 Parker
Series:	391PSS Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel
Special Properties:	Silicone Free

Specification:
Product Features:	Self aligning captive sleeve Built-in tube support Knurled nuts for hand tightening Plastic and brass sleeves available Chrome plated and stainless steel side latch couplers available
Markets:	Dental Packaging Machine Tools Car Wash Printing
Applications:	Pneumatic Systems Water Lines Dental Equipment
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	0° to +150° F (-17.7° to +65.5° C)
O-Rings:	Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:	Polyethylene Nylon Polypropylene Vinyl


Part Number	Insert Diameter (D)	Pipe Thread	L	Hex (C)	M
391PSS-4-2	1/4"	1/8"	1.271"	.500	.900"
391PSS-4-4	1/4"	1/4"	1.271"	.562	.710"
391PSS-6-4	3/8"	1/4"	1.400"	.625	.840"
