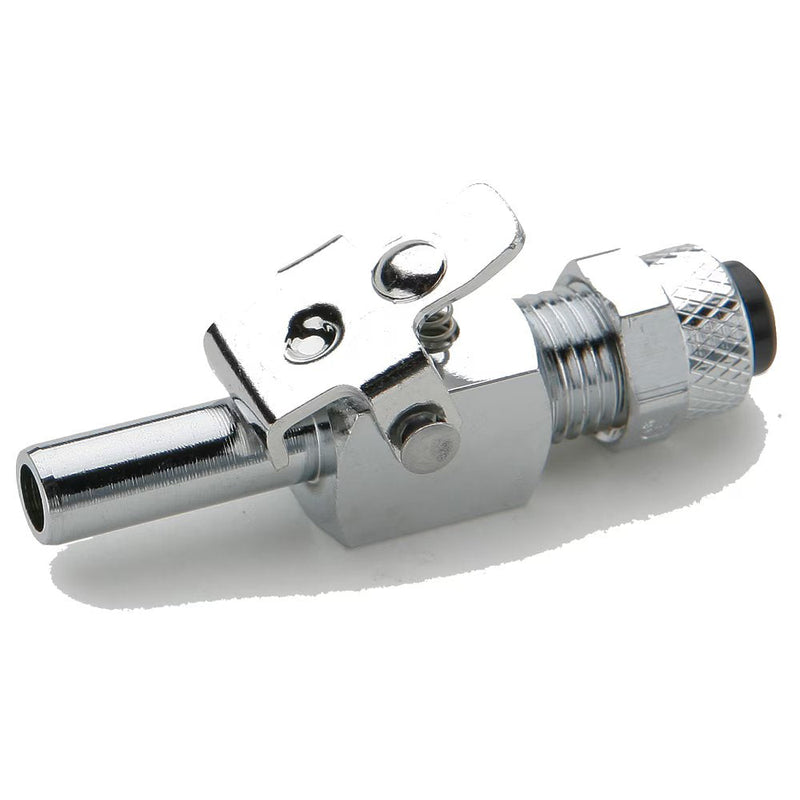

393P-6-6 by Parker | Poly-Tite Fittings | Through Type Insert | 3/8" Tube Size x 3/8" Insert Diameter x 1/2" Thread | 1/2" Square | Straight | Chrome Plated Brass | Pack of 5

393P-6-6 by Parker | Poly-Tite Fittings | Through Type Insert | 3/8" Tube Size x 3/8" Insert Diameter x 1/2" Thread | 1/2" Square | Straight | Chrome Plated Brass | Pack of 5

Save $21.49 Save $21.49
$168.09
$168.09 - $168.09
$168.09
$146.60
$146.60 - $146.60
$146.60

by Parker Hannifin
Poly-Tite Fittings:Through Type Insert 393P

Package Quantity: 5 Units

Specifications for Variant SKU: 393P-6-6 Parker | 5 |
Series: 393P Series
Shape (Orientation): Straight
Material(s): Chrome-Plated Brass, Acetal Copolymer
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Tube Size Insert Diameter (D) Straight Thread Square (C) H Flow Diameter (F)
393P-4-4 1/4" 1/4" 3/8"-24 7/16" 1.12" .125"
393P-6-6 3/8" 3/8" 1/2"-24 1/2" 1.34" .203"
