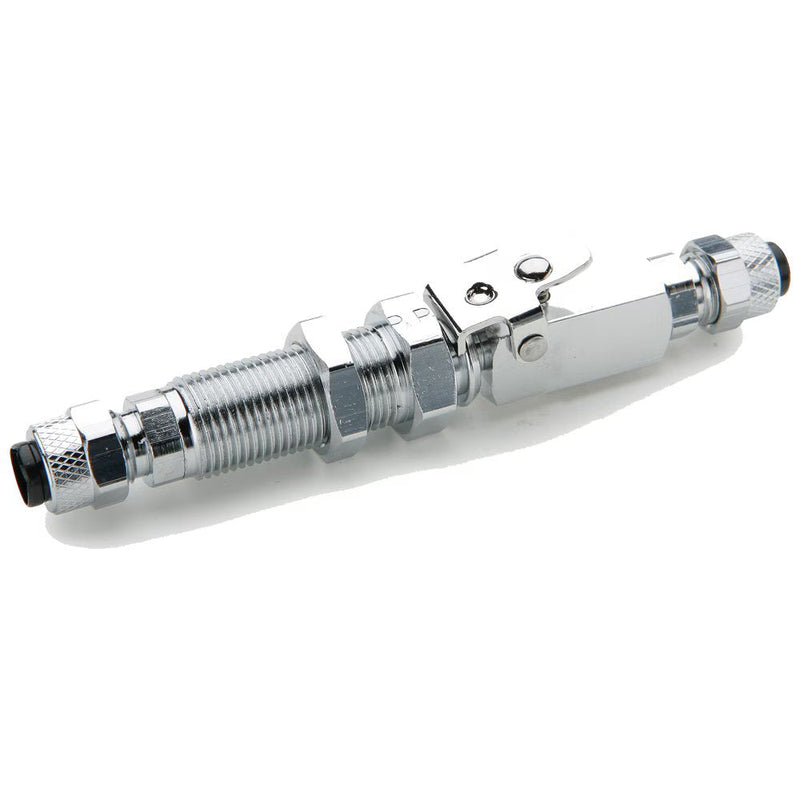

394PD-4-4 by Parker | Poly-Tite Fittings | Double End Shutoff Bulkhead Quick Coupler | 1/4" Tube Size x 1/2" Thread | 5/8" Hex | 3.77" Length | Straight | Chrome Plated Brass | Pack of 5

394PD-4-4 by Parker | Poly-Tite Fittings | Double End Shutoff Bulkhead Quick Coupler | 1/4" Tube Size x 1/2" Thread | 5/8" Hex | 3.77" Length | Straight | Chrome Plated Brass | Pack of 5

Save $246.06 Save $246.06
$615.15
$615.15 - $615.15
$615.15
$369.09
$369.09 - $369.09
$369.09

by Parker Hannifin
Poly-Tite Fittings:Double End Shutoff Bulkhead Quick Coupler 394PD

Package Quantity: 5 Units

Specifications for Variant SKU: 394PD-4-4 Parker | 5 |
Series: 394PD Series
Shape (Orientation): Straight
Material(s): Chrome-Plated Brass, Acetal Copolymer
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Tube Size Straight Thread Hex (C) Max (P) H L M Bulkhead Hole Diameter Flow Diameter (F)
394PD-4-4 1/4" 1/2"-24 5/8" .84" .39" 3.77" 2.13" 1/2" .125"
394PD-6-6 3/8" 11/16"-24 11/16" .93" .37" 3.48" 2.01" 111/16" .204"
