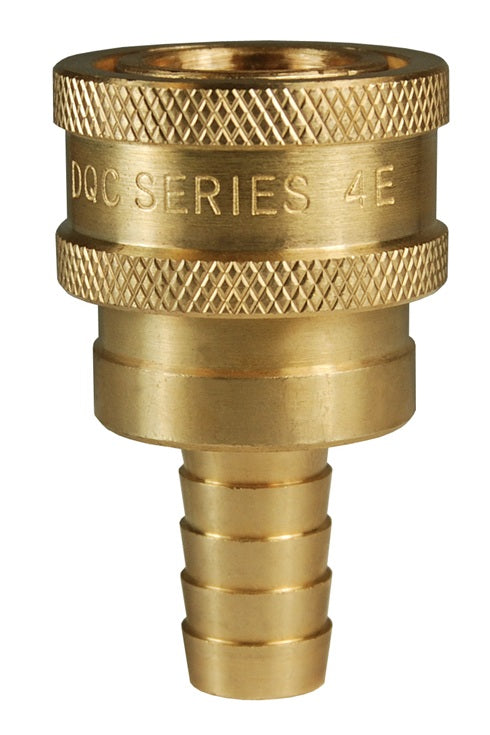

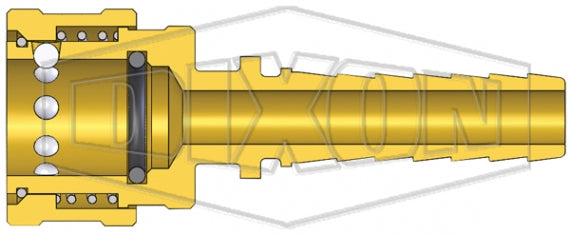

3ES3-B by Dixon Valve | Hydraulic Quick Disconnect Coupling | E-Series | Hose Barb | 3/8" Hose ID x 3/8" Straight-Through Interchange | Socket | Nitrile Seal | Brass
3ES3-B by Dixon Valve | Hydraulic Quick Disconnect Coupling | E-Series | Hose Barb | 3/8" Hose ID x 3/8" Straight-Through Interchange | Socket | Nitrile Seal | Brass
3ES3-B by Dixon Valve | Hydraulic Quick Disconnect Coupling | E-Series | Hose Barb | 3/8" Hose ID x 3/8" Straight-Through Interchange | Socket | Nitrile Seal | Brass

3ES3-B by Dixon Valve | Hydraulic Quick Disconnect Coupling | E-Series | Hose Barb | 3/8" Hose ID x 3/8" Straight-Through Interchange | Socket | Nitrile Seal | Brass

Save $7.21 Save $7.21
$18.02
$18.02 - $18.02
$18.02
$10.81
$10.81 - $10.81
$10.81

Dixon Valve & Coupling
Hydraulic Coupling: E-Series Straight-Through Interchange Coupler (Hose Barb)
Specifications for Variant SKU: 3ES3-B Dixon
Series: E-Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 3/8in Female Straight-Thru QD Interchange
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Compatibility & Interchange:
  • Straight-through pressure-wash interchange
  • Parker ST-Series, Foster FST-Series, Hansen ST-Series
Features:
  • These couplers have no internal valves, providing maximum flow with minimum pressure drop.
Construction:
  • Machined components are manufactured using solid steel, brass, or 303 stainless steel bar stock.
  • Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS-compliant trivalent chrome.
  • 1-1/4" to 2" brass couplers have steel sleeves as standard to maximize service life, hardened to resist deformation.
  • Steel plugs are hardened to provide heavy-duty performance.
Seal Components:
  • Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C).
Safety Notes:
  • Do Not Disconnect with pressure in line.
  • Dixon cannot assume liability for misapplication of products resulting in equipment down-time, lost production, property damage and/or personal injury including death.
  • Operating pressures for the standard hose barbs utilizing hose barb end connections may be dramatically reduced to that of the hose rating and/or hose and end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
Additional Information:
E-Series | Straight-Through Interchange (Connected) Rated Pressure Chart
Body
Size		 Brass Coupler/Steel Plug Brass Coupler/Plug 303 Stainless Steel
Coupler/Plug		 Locking Ball
Quantity		 Flow
ΔP = 30 PSI
Max. Working Burst Max. Working Burst Max. Working Burst
1/8" 2,600 PSI
(179 Bar)		 10,400 PSI
(717 Bar)		 2,500 PSI
(172 Bar)		 10,000 PSI
(689 Bar)		 4,200 PSI
(290 Bar)		 16,800 PSI
(1,158 Bar)		 6 3 GPM
1/4" 5,500 PSI
(379 Bar)		 22,000 PSI
(1,517 Bar)		 5,200 PSI
(359 Bar)		 20,800 PSI
(1,434 Bar)		 6,700 PSI
(462 Bar)		 26,800 PSI
(1,848 Bar)		 6 6 GPM
3/8" 3,500 PSI
(241 Bar)		 14,000 PSI
(966 Bar)		 2,700 PSI
(186 Bar)		 10,800 PSI
(745 Bar)		 5,500 PSI
(379 Bar)		 22,000 PSI
(1,517 Bar)		 8 14 GPM
1/2" 2,700 PSI
(186 Bar)		 10,800 PSI
(745 Bar)		 2,200 PSI
(152 Bar)		 8,800 PSI
(607 Bar)		 3,000 PSI
(207 Bar)		 12,000 PSI
(827 Bar)		 8 24 GPM
3/4" 2,700 PSI
(186 Bar)		 10,800 PSI
(745 Bar)		 1,700 PSI
(117 Bar)		 6,800 PSI
(469 Bar)		 3,000 PSI
(207 Bar)		 12,000 PSI
(827 Bar)		 8 58 GPM
1" 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 1,200 PSI
(83 Bar)		 4,800 PSI
(331 Bar)		 1,700 PSI
(117 Bar)		 6,800 PSI
(469 Bar)		 8 100 GPM
1-1/4" 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 1,700 PSI
(117 Bar)		 6,800 PSI
(469 Bar)		 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 8 150 GPM
1-1/2" 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 1,400 PSI
(97 Bar)		 5,600 PSI
(386 Bar)		 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 8 250 GPM
2" 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 1,400 PSI
(97 Bar)		 5,600 PSI
(386 Bar)		 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 8 350 GPM
E-Series | Straight-Through Interchange Coupler (Hose Barb)
Part
Number		 Coupling
Type		 Body
Size		 Hose I.D. Size Material Length Max.
OD		 Hex
2ES2-B Socket/Female 1/4" 1/4" Brass 2.06"
(52.2mm)		 1.00"
(24.4mm)		 -
3ES3-B Socket/Female 3/8" 3/8" Brass 2.03"
(51.6mm)		 1.13"
(28.6mm)		 -
4ES4-B Socket/Female 1/2" 1/2" Brass 3.45"
(87.6mm)		 1.34"
(34.0mm)		 -
6ES6-B Socket/Female 3/4" 3/4" Brass 3.64"
(92.3mm)		 1.64"
(41.7mm)		 -
8ES8-B Socket/Female 1" 1" Brass 4.58"
(116.2mm)		 1.99"
(50.5mm)		 -
E-Series | Straight-Through Interchange Plug (Hose Barb)
Part
Number		 Coupling
Type		 Body
Size		 Hose I.D. Size Material Length Max.
OD		 Hex
E2S2 Plug/Male 1/4" 1/4" Steel 1.90"
(48.3mm)		 0.56"
(14.2mm)		 -
E2S2-B Plug/Male 1/4" 1/4" Brass 1.90"
(48.3mm)		 0.56"
(14.2mm)		 -
E3S3 Plug/Male 3/8" 3/8" Steel 2.03"
(51.6mm)		 0.63"
(16.0mm)		 -
E3S3-B Plug/Male 3/8" 3/8" Brass 2.03"
(51.6mm)		 0.63"
(16.0mm)		 -
E4S4 Plug/Male 1/2" 1/2" Steel 2.09"
(53.1mm)		 0.75"
(19.1mm)		 -
E4S4-B Plug/Male 1/2" 1/2" Brass 2.09"
(53.1mm)		 0.75"
(19.1mm)		 -
E6S6 Plug/Male 3/4" 3/4" Steel 2.28"
(57.9mm)		 1.13"
(28.7mm)		 -
E6S6-B Plug/Male 3/4" 3/4" Brass 2.28"
(57.9mm)		 1.13"
(28.7mm)		 -
E8S8 Plug/Male 1" 1" Steel 3.28"
(83.3mm)		 1.38"
(35.1mm)		 -
E8S8-B Plug/Male 1" 1" Brass 3.28"
(83.3mm)		 1.38"
(35.1mm)		 -
