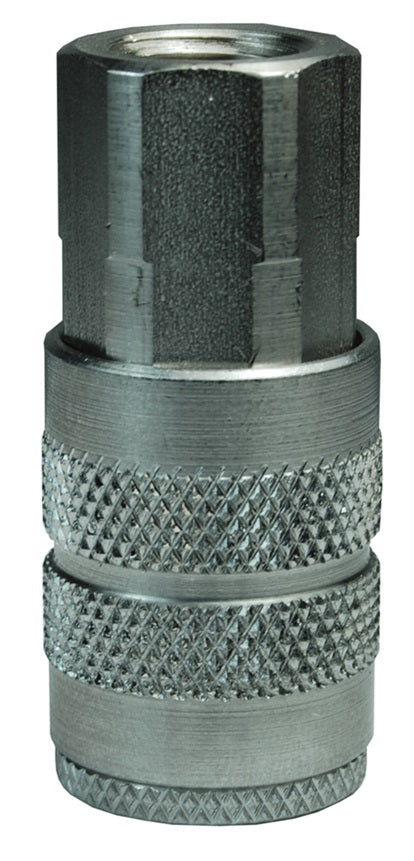

3FF3-S by Dixon Valve | Pneumatic Quick Disconnect Coupling | F-Series | 3/8" Female NPTF x 3/8" Manual Industrial Interchange | Socket | Nitrile Seal | 303 Stainless Steel

3FF3-S by Dixon Valve | Pneumatic Quick Disconnect Coupling | F-Series | 3/8" Female NPTF x 3/8" Manual Industrial Interchange | Socket | Nitrile Seal | 303 Stainless Steel

Save $4.74 Save $4.74
$42.65
$42.65 - $42.65
$42.65
$37.91
$37.91 - $37.91
$37.91

Dixon Valve & Coupling
Pneumatic Coupling: F-Series Manual Industrial Interchange Coupler (Female Threads)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 3FF3-S Dixon
Series: F-Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Female ISO-6150 Series B Industrial Pneumatic QD Interchange, 3/8in Female NPTF
Material(s): 303 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Compatibility & Interchange:
  • Foster 3, 4, 5 and 6 Series
  • Parker 20-Series Manual Interchange
  • Hansen 1000, 400 and 500

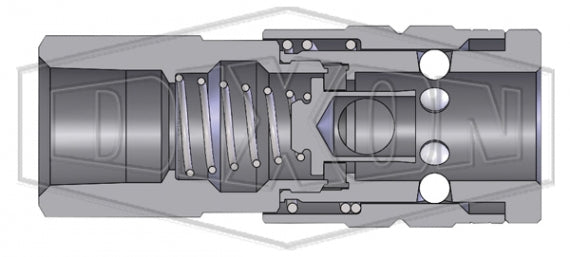

Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Nitrile (Nitrile Rubber) seals are standard.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Steel sleeve and steel tubular valve.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
D-Series | Automatic Industrial Interchange Socket/Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Thread Material Length Max.
OD		 Hex Max. Working
Pressure		 Burst
Pressure
Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:		 Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:
2FF1-B Socket/Female 1/4" 1/8" - 27 Female NPTF Brass 1.91"
(48.6mm)		 0.93"
(23.5mm)		 3/4" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 8,500 PSI
(586 bar)		 9,000 PSI
(620 bar)
2FBF1-B Socket/Female 1/4" 1/8" - 28 Female BSPP Brass 1.91"
(48.6mm)		 0.93"
(23.5mm)		 3/4" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 8,500 PSI
(586 bar)		 9,000 PSI
(620 bar)
2FF2 Socket/Female 1/4" 1/4" - 18 Female NPTF Steel 2.07"
(52.6mm)		 0.93"
(23.5mm)		 3/4" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 6,500 PSI
(448 bar)
2FF2-B Socket/Female 1/4" 1/4" - 18 Female NPTF Brass 2.07"
(52.6mm)		 0.93"
(23.5mm)		 3/4" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 8,500 PSI
(586 bar)		 9,000 PSI
(620 bar)
2FF2-S Socket/Female 1/4" 1/4" - 18 Female NPTF 303 Stainless 2.07"
(52.6mm)		 0.93"
(23.5mm)		 3/4" 303 S.S. Coupler & 303 S.S. Plug: 500 PSI
(35 bar)		 303 S.S. Coupler & 303 S.S. Plug: 11,500 PSI
(795 bar)
2FBF2-B Socket/Female 1/4" 1/4" - 19 Female BSPP Brass 2.07"
(52.6mm)		 0.93"
(23.5mm)		 3/4" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 8,500 PSI
(586 bar)		 9,000 PSI
(620 bar)
2FF3-B Socket/Female 1/4" 3/8" - 18 Female NPTF Brass 2.10"
(53.4mm)		 0.93"
(23.5mm)		 13/16" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 8,500 PSI
(586 bar)		 9,000 PSI
(620 bar)
2FF3-S Socket/Female 1/4" 3/8" - 18 Female NPTF 303 Stainless 2.10"
(53.4mm)		 0.93"
(23.5mm)		 13/16" 303 S.S. Coupler & 303 S.S. Plug: 500 PSI
(35 bar)		 303 S.S. Coupler & 303 S.S. Plug: 11,500 PSI
(795 bar)
2FBF3-B Socket/Female 1/4" 3/8" - 19 Female BSPP Brass 2.13"
(54.2mm)		 0.93"
(23.5mm)		 13/16" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 8,500 PSI
(586 bar)		 9,000 PSI
(620 bar)
3FF2 Socket/Female 3/8" 1/4" - 18 Female NPTF Steel 2.41"
(61.2mm)		 1.13"
(28.6mm)		 7/8" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 19,500 PSI
(1,345 bar)
3FF3 Socket/Female 3/8" 3/8" - 18 Female NPTF Steel 2.41"
(61.2mm)		 1.13"
(28.6mm)		 7/8" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 19,500 PSI
(1,345 bar)
3FF3-S Socket/Female 3/8" 3/8" - 18 Female NPTF 303 Stainless 2.41"
(61.2mm)		 1.13"
(28.6mm)		 7/8" 303 S.S. Coupler & 303 S.S. Plug: 500 PSI
(35 bar)		 303 S.S. Coupler & 303 S.S. Plug: 20,500 PSI
(1,415 bar)
3FBF3 Socket/Female 3/8" 3/8" - 19 Female BSPP Steel 2.42"
(61.5mm)		 1.13"
(28.6mm)		 7/8" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 19,500 PSI
(1,345 bar)
3FF4 Socket/Female 3/8" 1/2" - 14 Female NPTF Steel 2.63"
(66.9mm)		 1.13"
(28.6mm)		 1" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 19,500 PSI
(1,345 bar)
4FF3** Socket/Female 1/2" 3/8" - 18 Female NPTF Steel 2.85"
(72.5mm)		 1.24"
(31.4mm)		 1" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 15,500 PSI
(1,070 bar)
4FF4** Socket/Female 1/2" 1/2" - 14 Female NPTF Steel 3.06"
(77.8mm)		 1.24"
(31.4mm)		 1" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 15,500 PSI
(1,070 bar)
4FF4-S Socket/Female 1/2" 1/2" - 14 Female NPTF 303 Stainless 3.06"
(77.8mm)		 1.24"
(31.4mm)		 1" 303 S.S. Coupler & 303 S.S. Plug: 500 PSI
(35 bar)		 303 S.S. Coupler & 303 S.S. Plug: 15,000 PSI
(1,035 bar)
4FBF4 Socket/Female 1/2" 1/2" - 14 Female BSPP Steel 3.09"
(78.4mm)		 1.24"
(31.4mm)		 1" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 15,500 PSI
(1,070 bar)
4FF6** Socket/Female 1/2" 3/4" - 14 Female NPTF Steel 3.15"
(79.9mm)		 1.24"
(31.4mm)		 1-3/16" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 15,500 PSI
(1,070 bar)

** Can be used with DQC J-series Automotive plugs

DF-Series | Industrial Interchange Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Thread Material Length Max.
OD		 Hex Working Pressure / Burst Pressure
when Connected to:
D2F1 Plug/Male 1/4" 1/8" - 27 Female NPTF Steel 1.44"
(36.6mm)		 0.65"
(16.5mm)		 9/16"
  • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
  • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 9,000 PSI (620 bar) Burst
  • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar) Burst
    D2F2 Plug/Male 1/4" 1/4" - 18 Female NPTF Steel 1.66"
    (42.2mm)    		 0.79"
    (20.1mm)    		 11/16"
    • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
    • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 9,000 PSI (620 bar) Burst
    • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar) Burst
      D2F2-B Plug/Male 1/4" 1/4" - 18 Female NPTF Brass 1.66"
      (42.2mm)      		 0.79"
      (20.1mm)      		 11/16"
      • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
      • Brass F-Series Manual Couplers: Max. Working: 300 PSI (20 bar) | Burst: 8,500 PSI (586 bar) Burst
        D2F2-S Plug/Male 1/4" 1/4" - 18 Female NPTF 303 Stainless 1.66"
        (42.2mm)        		 0.79"
        (20.1mm)        		 11/16"
        • 303 S.S. D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 26,000 PSI (1,795 bar)
        • 303 S.S. F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (795 bar)
          D2BF2 Plug/Male 1/4" 1/4" - 19 Female BSPP Steel 1.66"
          (42.2mm)          		 0.79"
          (20.1mm)          		 11/16"
          • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
          • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 9,000 PSI (620 bar)
          • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar)
            D2F3 Plug/Male 1/4" 3/8" - 18 Female NPTF Steel 1.66"
            (42.2mm)            		 1.01"
            (25.7mm)            		 7/8"
            • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
            • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 9,000 PSI (620 bar)
            • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar)
              D2F3-B Plug/Male 1/4" 3/8" - 18 Female NPTF Brass 1.66"
              (42.2mm)              		 1.01"
              (25.7mm)              		 7/8"
              • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
              • Brass F-Series Manual Couplers: Max. Working: 300 PSI (20 bar) | Burst: 8,500 PSI (586 bar)
                D2F3-S Plug/Male 1/4" 3/8" - 18 Female NPTF 303 Stainless 1.66"
                (42.2mm)                		 1.01"
                (25.7mm)                		 7/8"
                • 303 S.S. D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 26,000 PSI (1,795 bar)
                • 303 S.S. F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (795 bar)
                  D2BF3 Plug/Male 1/4" 3/8" - 19 Female BSPP Steel 1.66"
                  (42.2mm)                  		 1.01"
                  (25.7mm)                  		 7/8"
                  • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
                  • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 9,000 PSI (620 bar)
                  • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar)
                    D3F2 Plug/Male 3/8" 1/4" - 18 Female NPTF Steel 1.78"
                    (45.2mm)                    		 0.79"
                    (20.1mm)                    		 11/16"
                    • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                    • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                    • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
                      D3F3 Plug/Male 3/8" 3/8" - 18 Female NPTF Steel 1.78"
                      (45.2mm)                      		 1.01"
                      (25.7mm)                      		 7/8"
                      • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                      • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                      • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
                        D3F3-B Plug/Male 3/8" 3/8" - 18 Female NPTF Brass 1.78"
                        (45.2mm)                        		 1.01"
                        (25.7mm)                        		 7/8"
                        • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,500 PSI (1,000 bar)
                        • Brass F-Series Manual Couplers: Max. Working: 300 PSI (20 bar) | Burst: 10,000 PSI (690 bar)
                          D3F3-S Plug/Male 3/8" 3/8" - 18 Female NPTF 303 Stainless 1.78"
                          (45.2mm)                          		 1.01"
                          (25.7mm)                          		 7/8"
                          • 303 Stainless Steel D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 25,500 PSI (1,760 bar)
                          • 303 Stainless Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 20,500 PSI (1,415 bar)
                            D3BF3 Plug/Male 3/8" 3/8" - 19 Female BSPP Steel 1.78"
                            (45.2mm)                            		 1.01"
                            (25.7mm)                            		 7/8"
                            • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                            • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                            • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
                              D3F4 Plug/Male 3/8" 1/2" - 14 Female NPTF Steel 1.94"
                              (49.3mm)                              		 1.16"
                              (29.5mm)                              		 1"
                              • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                              • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                              • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
                                D4F3 Plug/Male 1/2" 3/8" - 18 Female NPTF Steel 2.10"
                                (53.3mm)                                		 1.01"
                                (25.7mm)                                		 7/8"
                                • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
                                • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                  D4F4 Plug/Male 1/2" 1/2" - 14 Female BSPP Steel 2.27"
                                  (57.7mm)                                  		 1.16"
                                  (29.5mm)                                  		 1"
                                  • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
                                  • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                    D4F4-B Plug/Male 1/2" 1/2" - 14 Female NPTF Brass 2.27"
                                    (57.7mm)                                    		 1.16"
                                    (29.5mm)                                    		 1"
                                    • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,500 PSI (725 bar)
                                      D4F4-S Plug/Male 1/2" 1/2" - 14 Female NPTF 303 Stainless 2.27"
                                      (57.7mm)                                      		 1.16"
                                      (29.5mm)                                      		 1"
                                      • 303 S.S D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 20,500 PSI (1,415 bar)
                                      • 303 S.S F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,000 PSI (1,035 bar)
                                        D4BF4 Plug/Male 1/2" 1/2" - 14 Female BSPP Steel 2.27"
                                        (57.7mm)                                        		 1.16"
                                        (29.5mm)                                        		 1"
                                        • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
                                        • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                          D4F6 Plug/Male 1/2" 3/4" - 14 Female NPTF Steel 2.30"
                                          (58.4mm)                                          		 1.37"
                                          (34.8mm)                                          		 1-3/16"
                                          • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
                                          • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                            D4F6-B Plug/Male 1/2" 3/4" - 14 Female NPTF Brass 2.30"
                                            (58.4mm)                                            		 1.37"
                                            (34.8mm)                                            		 1-3/16"
                                            • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,500 PSI (725 bar)
                                              D6F4 Plug/Male 3/4" 1/2" - 14 Female NPTF Steel 2.22"
                                              (56.4mm)                                              		 1.52"
                                              (38.6mm)                                              		 1-5/16"
                                              • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (670 bar)
                                                D6F6 Plug/Male 3/4" 3/4" - 14 Female NPTF Steel 2.22"
                                                (56.4mm)                                                		 1.52"
                                                (38.6mm)                                                		 1-5/16"
                                                • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (670 bar)
                                                  D6F8 Plug/Male 3/4" 1" - 11-1/2 Female NPTF Steel 2.41"
                                                  (61.2mm)                                                  		 1.80"
                                                  (45.7mm)                                                  		 1-9/16"
                                                  • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (670 bar)
                                                    Dixon Valve & Coupling

                                                    Dixon Valve & Coupling

                                                    Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

                                                    Shop Parts by Dixon Valve & Coupling
