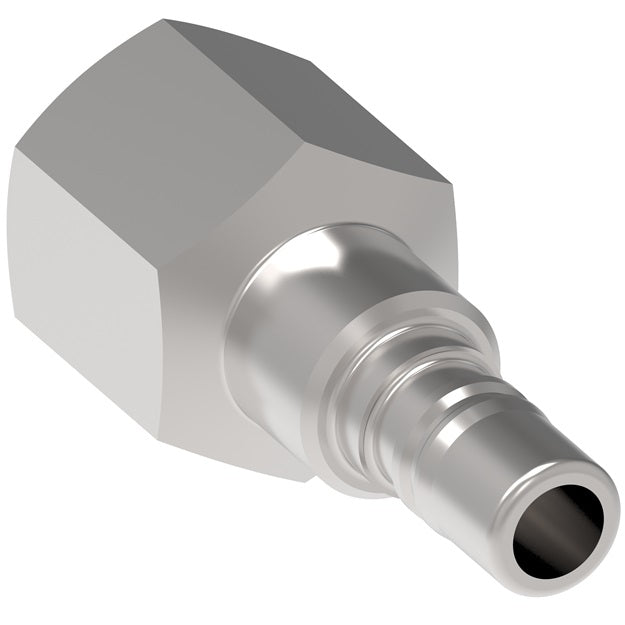

3L21 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | 3/8" Female NPTF x 3/8" Body Size | Plug | Steel
3L21 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | 3/8" Female NPTF x 3/8" Body Size | Plug | Steel
3L21 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | 3/8" Female NPTF x 3/8" Body Size | Plug | Steel
3L21 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | 3/8" Female NPTF x 3/8" Body Size | Plug | Steel

3L21 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | 3/8" Female NPTF x 3/8" Body Size | Plug | Steel

$31.00 - $31.00
$31.00
$31.00 - $31.00
$31.00

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 3RL Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 2RL/3RL ring lock series quick disconnect pneumatic couplings have a unique interchange which Danfoss designed for use with compressed air.
Specifications for Variant SKU: 3L21 Danfoss
Brand: Hansen
Series: 3RL Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • High Flow capacity.
  • Push to connect with a ring lock sleeve.
  • Ring lock design prevents accidental disconnection.
  • To disconnect rotate sleeve 20 degrees.
Applications & Markets:
  • Shipyards
  • General Pneumatics
  • Mining
  • Marine
Materials:
  • Standard body material: Trivalent Plated Steel
  • Standard seal material: Buna-N
Series Coupling Size Max. Operating Pressure Min. Burst Pressure Rated Flow
2RL 1/4" 20 bar 300 psi 80 bar 1,200 psi 1,350 lpm 48 scfm
3RL 3/8" 20 bar 300 psi 80 bar 1,200 psi 2,250 lpm 80 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
3RL Series | Socket
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
A B Hex
3R16 Socket/Female 3/8" 1/4" 1/4-18 Female NPTF 1 2.29"
(58.2mm)		 1.31"
(33.3mm)		 1.00"
(25.4mm)
3R21 Socket/Female 3/8" 3/8" 3/8-18 Female NPTF 1 2.35"
(59.7mm)		 1.31"
(33.3mm)		 1.00"
(25.4mm)
3R26 Socket/Female 3/8" 1/2" 1/2-14 Female NPTF 1 2.63"
(66.8mm)		 1.31"
(33.3mm)		 1.00"
(25.4mm)
3R31A Socket/Female 3/8" 3/4" 3/4-14 Female NPTF 1 2.66"
(67.6mm)		 1.31"
(33.3mm)		 1.19"
(30.2mm)
3RL Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
A B Hex
3L16 Plug/Male 3/8" 1/4" 1/4-18 Female NPTF 2 1.48"
(37.6mm)		 0.79"
(20.1mm)		 0.69"
(17.5mm)
3L16G Plug/Male 3/8" 1/4" 1/4-18 Female NPTF 2 2.39"
(60.7mm)		 0.98"
(24.9mm)		 0.88"
(22.4mm)
3L21 Plug/Male 3/8" 3/8" 3/8-18 Female NPTF 2 1.63"
(41.4mm)		 0.94"
(23.9mm)		 0.81"
(20.6mm)
3L26 Plug/Male 3/8" 1/2" 1/2-14 Female NPTF 2 2.25"
(57.2mm)		 1.15"
(29.2mm)		 1.00"
(25.4mm)
3L26G Plug/Male 3/8" 1/2" 1/2-14 Female NPTF 2 2.91"
(73.9mm)		 0.98"
(24.9mm)		 1.00"
(25.4mm)
3L31 Plug/Male 3/8" 3/4" 3/4-14 Female NPTF 2 2.25"
(57.2mm)		 1.37"
(34.8mm)		 1.19"
(30.2mm)

* With Bleeder Ball Check - Reduces Hose Whip
