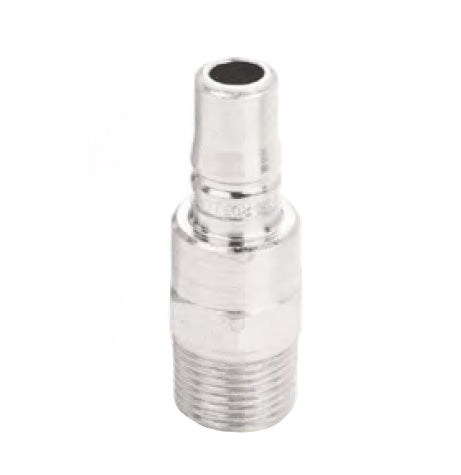

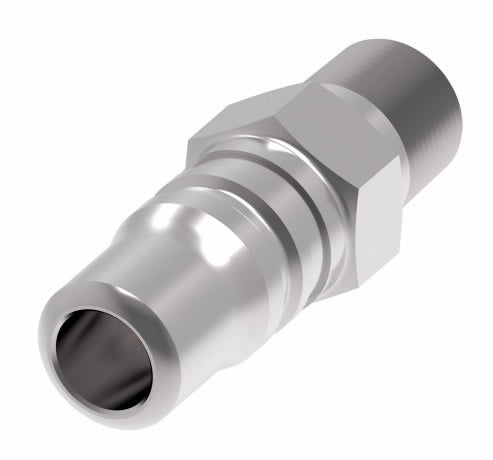

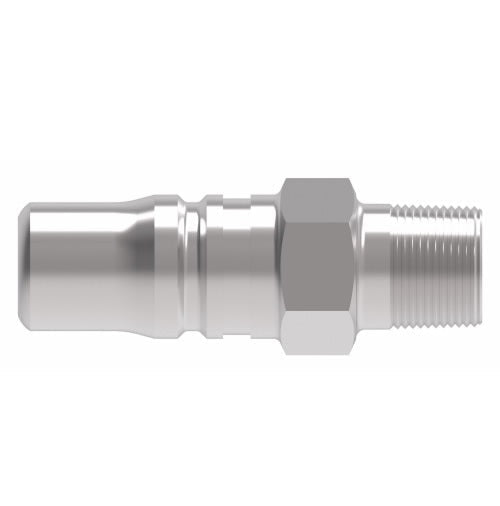

3L25 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | 1/2" Male NPTF x 3/8" Body Size | Plug | Steel
3L25 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | 1/2" Male NPTF x 3/8" Body Size | Plug | Steel
3L25 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | 1/2" Male NPTF x 3/8" Body Size | Plug | Steel
3L25 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | 1/2" Male NPTF x 3/8" Body Size | Plug | Steel

3L25 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | 1/2" Male NPTF x 3/8" Body Size | Plug | Steel

$7.06 - $7.06
$7.06
$7.06 - $7.06
$7.06

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 3RL Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 2RL/3RL ring lock series quick disconnect pneumatic couplings have a unique interchange which Danfoss designed for use with compressed air.
Specifications for Variant SKU: 3L25 Danfoss
Brand: Hansen
Series: 3RL Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • High Flow capacity.
  • Push to connect with a ring lock sleeve.
  • Ring lock design prevents accidental disconnection.
  • To disconnect rotate sleeve 20 degrees.
Applications & Markets:
  • Shipyards
  • General Pneumatics
  • Mining
  • Marine
Materials:
  • Standard body material: Trivalent Plated Steel
  • Standard seal material: Buna-N
Series Coupling Size Max. Operating Pressure Min. Burst Pressure Rated Flow
2RL 1/4" 20 bar 300 psi 80 bar 1,200 psi 1,350 lpm 48 scfm
3RL 3/8" 20 bar 300 psi 80 bar 1,200 psi 2,250 lpm 80 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
3RL Series | Socket
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
A B Hex
3R15 Socket/Female 3/8" 1/4" 1/4-18 Male NPTF 1 2.34"
(59.4mm)		 1.31"
(33.3mm)		 1.00"
(25.4mm)
3R20 Socket/Female 3/8" 3/8" 3/8-18 Male NPTF 1 2.35"
(59.7mm)		 1.31"
(33.3mm)		 1.00"
(25.4mm)
3R25 Socket/Female 3/8" 1/2" 1/2-14 Male NPTF 1 2.54"
(64.5mm)		 1.31"
(33.3mm)		 1.00"
(25.4mm)
3R30 Socket/Female 3/8" 3/4" 3/4-14 Male NPTF 1 2.54"
(64.5mm)		 1.31"
(33.3mm)		 1.06"
(26.9mm)
3RL Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
A B Hex
3L10 Plug/Male 3/8" 1/8" 1/8-27 Male NPTF 2 1.54"
(39.1mm)		 0.72"
(18.3mm)		 0.63"
(16.0mm)
3L15 Plug/Male 3/8" 1/4" 1/4-18 Male NPTF 2 1.70"
(43.2mm)		 0.72"
(18.3mm)		 0.63"
(16.0mm)
3L15G* Plug/Male 3/8" 1/4" 1/4-18 Male NPTF 2 2.64"
(67.1mm)		 0.98"
(24.9mm)		 0.88"
(22.4mm)
3L20 Plug/Male 3/8" 3/8" 3/8-18 Male NPTF 2 1.76"
(44.7mm)		 0.79"
(20.1mm)		 0.69"
(17.5mm)
3L20G* Plug/Male 3/8" 3/8" 3/8-18 Male NPTF 2 2.64"
(67.1mm)		 0.98"
(24.9mm)		 0.88"
(22.4mm)
3L25 Plug/Male 3/8" 1/2" 1/2-14 Male NPTF 2 2.31"
(58.7mm)		 1.01"
(25.7mm)		 0.88"
(22.4mm)
3L25G* Plug/Male 3/8" 1/2" 1/2-14 Male NPTF 2 2.83"
(71.9mm)		 0.98"
(24.9mm)		 0.88"
(22.4mm)
3L30 Plug/Male 3/8" 3/4" 3/4-14 Male NPTF 2 2.38"
(60.5mm)		 1.23"
(31.2mm)		 1.06"
(26.9mm)
3L30G* Plug/Male 3/8 " 3/4" 3/4-14 Male NPTF 2 2.88"
(73.2mm)		 1.19"
(30.2mm)		 1.06"
(26.9mm)

* With Bleeder Ball Check - Reduces Hose Whip
