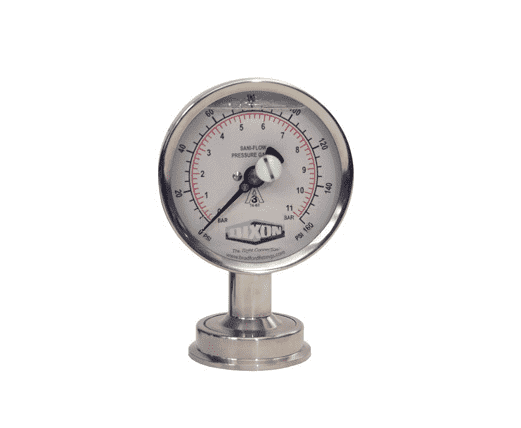

3S-D-15I-NFBTSS Dixon Stainless Steel Bottom Mount Sanitary Pressure Gauge (No Fill) - 3-1/2" Dial Size - 1-1/2" Male I-Line Clamp Size - 0-100 PSI Range

3S-D-15I-NFBTSS Dixon Stainless Steel Bottom Mount Sanitary Pressure Gauge (No Fill) - 3-1/2" Dial Size - 1-1/2" Male I-Line Clamp Size - 0-100 PSI Range

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Pressure Gauges
3-1/2" Gauge - 0-100 PSI Range - Stainless Steel
Specifications for Variant SKU: 3S-D-15I-NFBTSS Dixon
Features:
  • Accuracy: ± 1.5% of full scale
  • Over range capacity: 30%
  • Wetted surfaces: 316L stainless steel
  • Surface finishes (wetted parts): Ra max = 25 microinches
  • Case material: 304 stainless steel
  • Dial size: 3-1/2"
  • Lens material: polycarbonate
  • Temperature range: 0°F (-18°C) to 250°F (121°C)
  • Standard fill: food grade glycerin
  • Rezero feature: standard on pointer
Part Number Dial Size Clamp Size Pressure Range
(PSI)		 Fill Mount
3S-D-15I-NFBTSS 3-1/2" 1-1/2" 0-100 PSI No Fill Bottom Mount
3S-D-15U-GFBKSS 3-1/2" 1-1/2" 0-100 PSI Glycerin Back Mount
3S-D-15U-GFBTSS 3-1/2" 1-1/2" 0-100 PSI Glycerin Bottom Mount
3S-D-15U-GFLFSS 3-1/2" 1-1/2" 0-100 PSI Glycerin Left Mount
3S-D-15U-GFRTSS 3-1/2" 1-1/2" 0-100 PSI Glycerin Right Mount
3S-D-15U-NFBKSS 3-1/2" 1-1/2" 0-100 PSI No Fill Center Back Mount
3S-D-15U-NFBTSS 3-1/2" 1-1/2" 0-100 PSI No Fill Bottom Mount
3S-D-25U-GFBTSS 3-1/2" - 0-100 PSI Glycerin Bottom Mount
3S-D-2I-GFBTSS 3-1/2" 2" 0-100 PSI Glycerin Bottom Mount
3S-D-2I-NFBTSS 3-1/2" 2" 0-100 PSI No Fill Bottom Mount
3S-D-2U-GF-LFS 3-1/2" 2" 0-100 PSI Glycerin Left Mount
3S-D-2U-GFBKSS 3-1/2" 2" 0-100 PSI Glycerin Back Mount
3S-D-2U-GFBTSS 3-1/2" 2" 0-100 PSI Glycerin Bottom Mount
3S-D-2U-GFRTSS 3-1/2" 2" 0-100 PSI Glycerin Right Mount
3S-D-2U-GFTPSS 3-1/2" 2" 0-100 PSI Glycerin Top Mount
3S-D-2U-NF-BT-S 3-1/2" 2" 0-100 PSI Glycerin Bottom Mount
3S-D-2U-NFBTSS 3-1/2" 2" 0-100 PSI No Fill Bottom Mount
3S-D-2UGFBTSSF
(with Flo Dry Logo)		 3-1/2" 2" 0-100 PSI Glycerin Bottom Mount
3S-D-3U-GFBTSS 3-1/2" 3" 0-100 PSI Glycerin Bottom Mount
3S-D2.5UGF-LTS 3-1/2" 2-1/2" 0-100 PSI Glycerin Left Mount
3S-DB-15U-NFBTS 3-1/2" 1-1/2" 0-100 PSI / 0-7 Bar Range No Fill Bottom Mount
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
