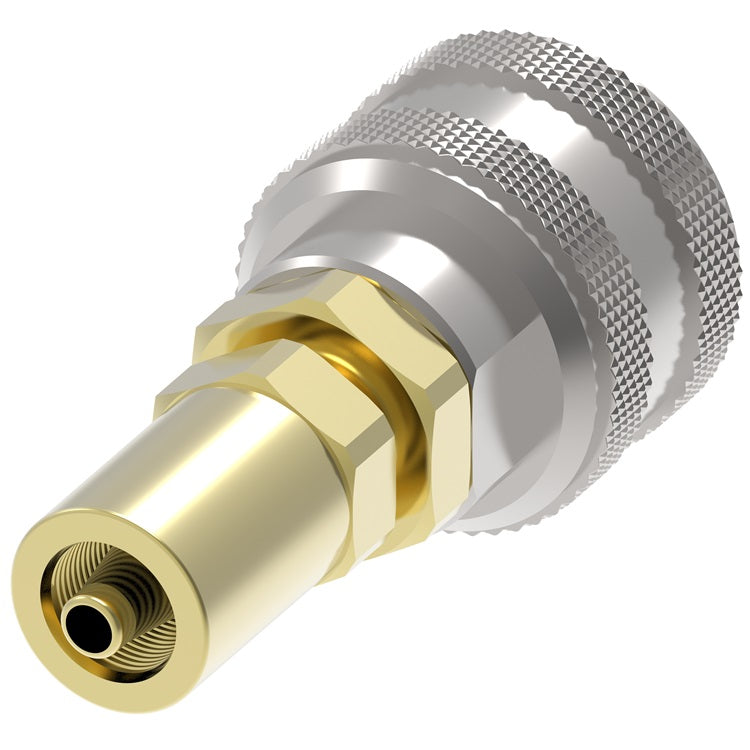

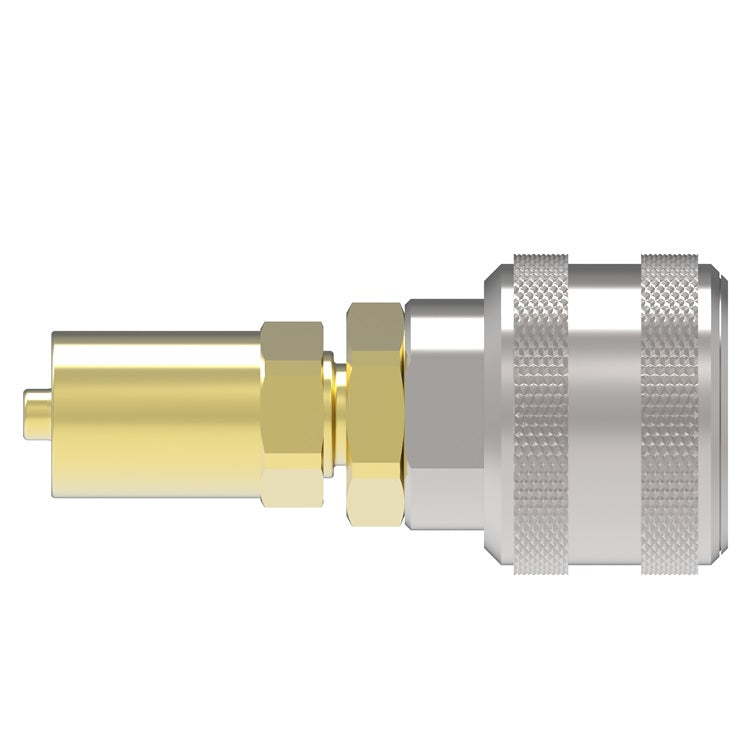

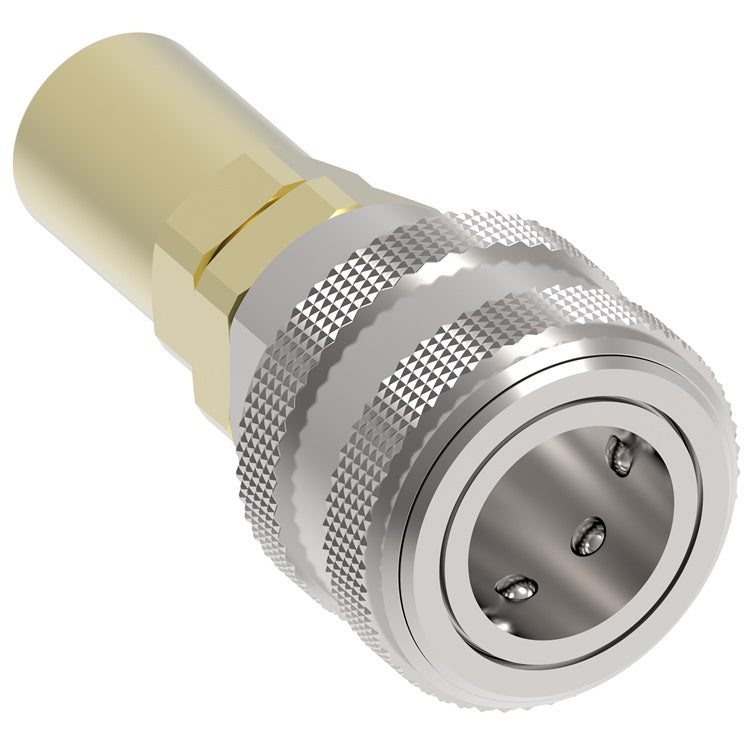

3SC7 Hansen® by Danfoss | Quick Disconnect Coupling | 3000 Series | Hose Crimp End | 5/8" Hose OD | 5/16" Hose ID x 1/4" Body Size | Socket | NBR Seal | Brass

3SC7 Hansen® by Danfoss | Quick Disconnect Coupling | 3000 Series | Hose Crimp End | 5/8" Hose OD | 5/16" Hose ID x 1/4" Body Size | Socket | NBR Seal | Brass

$46.94 - $46.94
$46.94
$46.94 - $46.94
$46.94

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 3000 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 3000/4000/5000/6000 Series Industrial Interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids.

This series sets the industry standard for pin lock style pneumatic couplings.
Specifications for Variant SKU: 3SC7 Danfoss
Brand: Hansen
Series: 3000 Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
Applications & Markets:
  • Industrial Breathing Air
  • General Pneumatics
  • Maintenance & Repair
  • Fluid Transfer
Materials:
  • Standard body material: Brass
  • Standard seal material: Nitrile (NBR)
Specifications:
  • All sizes accept US industrial Interchange; 1/4" & 1/2" also accept ISO 6150 Series B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
3000 1/4" 138 bar 2,000 psi 552 bar 8,000 psi 680 lpm 24 gpm
Interchangeability
All Sizes 1/4" & 1/2"
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
3000 Series | Sockets
Part Number Coupling Type Body Size Hose ID Hose OD End Type Material Figure Dimensions
A B Hex
3SA0 Socket/Female 1/4" 3/16" 7/16" Hose Crimp Brass 1 2.65"
(67.31mm)		 1.19"
(30.23mm)		 0.56"
(14.22mm)
3SB1 Socket/Female 1/4" 1/4" 15/32" Hose Crimp Brass 1 2.72"
(69.09mm)		 1.19"
(30.23mm)		 0.63"
(16.00mm)
3SB3 Socket/Female 1/4" 1/4" 1/2" Hose Crimp Brass 1 2.72"
(69.09mm)		 1.19"
(30.23mm)		 0.63"
(16.00mm)
3SB5 Socket/Female 1/4" 1/4" 9/16" Hose Crimp Brass 1 2.72"
(69.09mm)		 1.19"
(30.23mm)		 0.69"
(17.53mm)
3SB7 Socket/Female 1/4" 1/4" 5/8" Hose Crimp Brass 1 2.72"
(69.09mm)		 1.19"
(30.23mm)		 0.75"
(19.05mm)
3SC5 Socket/Female 1/4" 5/16" 9/16" Hose Crimp Brass 1 2.78"
(70.61mm)		 1.19"
(30.23mm)		 0.69"
(17.53mm)
3SC7 Socket/Female 1/4" 5/16" 5/8" Hose Crimp Brass 1 2.78"
(70.61mm)		 1.19"
(30.23mm)		 0.75"
(19.05mm)
3SC9 Socket/Female 1/4" 5/16" 11/16" Hose Crimp Brass 1 2.78"
(70.61mm)		 1.19"
(30.23mm)		 0.81"
(20.57mm)
3SD5 Socket/Female 1/4" 3/8" 9/16" Hose Crimp Brass 1 2.84"
(72.14mm)		 1.19"
(30.23mm)		 0.69"
(17.53mm)
3SD7 Socket/Female 1/4" 3/8" 5/8" Hose Crimp Brass 1 2.84"
(72.14mm)		 1.19"
(30.23mm)		 0.75"
(19.05mm)
3SD9 Socket/Female 1/4" 3/8" 11/16" Hose Crimp Brass 1 2.84"
(72.14mm)		 1.19"
(30.23mm)		 0.81"
(20.57mm)
3SD11 Socket/Female 1/4" 3/8" 3/4" Hose Crimp Brass 1 2.84"
(72.14mm)		 1.19"
(30.23mm)		 0.88"
(22.35mm)
3000 Series | Plugs
Part Number Coupling Type Body Size Hose ID Hose OD End Type Material Figure Dimensions
C D Hex
3PB1 Plug/Male 1/4" 1/4" 15/32" Hose Crimp Steel 2 2.31"
(58.67mm)		 0.70"
(17.78mm)		 0.63"
(16.00mm)
3PB3 Plug/Male 1/4" 1/4" 1/2" Hose Crimp Steel 2 2.31"
(58.67mm)		 0.70"
(17.78mm)		 0.63"
(16.00mm)
3PB5 Plug/Male 1/4" 1/4" 9/16" Hose Crimp Steel 2 2.31"
(58.67mm)		 0.77"
(19.56mm)		 0.69"
(17.53mm)
3PB7 Plug/Male 1/4" 1/4" 5/8" Hose Crimp Steel 2 2.31"
(58.67mm)		 0.84"
(21.34mm)		 0.75"
(19.05mm)
3PC5 Plug/Male 1/4" 5/16" 9/16" Hose Crimp Steel 2 2.38"
(60.45mm)		 0.77"
(19.56mm)		 0.69"
(17.53mm)
3PC7 Plug/Male 1/4" 5/16" 5/8" Hose Crimp Steel 2 2.38"
(60.45mm)		 0.84"
(21.34mm)		 0.75"
(19.05mm)
3PD5 Plug/Male 1/4" 3/8" 9/16" Hose Crimp Steel 2 2.44"
(61.98mm)		 0.77"
(19.56mm)		 0.69"
(17.53mm)
3PD7 Plug/Male 1/4" 3/8" 5/8" Hose Crimp Steel 2 2.44"
(61.98mm)		 0.84"
(21.34mm)		 0.75"
(19.05mm)
3PD9 Plug/Male 1/4" 3/8" 11/16" Hose Crimp Steel 2 2.44"
(61.98mm)		 0.91"
(23.11mm)		 0.81"
(20.57mm)
3PD11 Plug/Male 1/4" 3/8" 3/4" Hose Crimp Steel 2 2.44"
(61.98mm)		 1.01"
(25.65mm)		 0.88"
(22.35mm)
