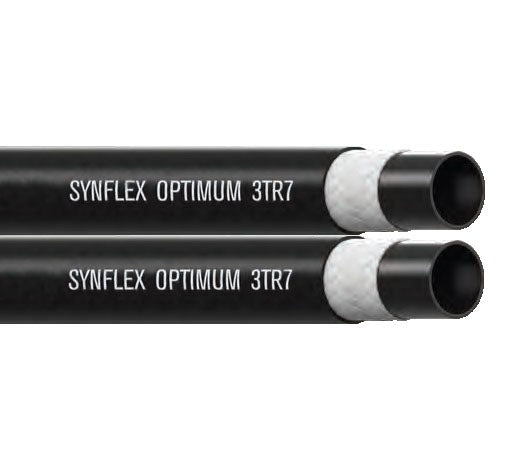

3TR7-04-2-250BX Synflex Optimum by Danfoss Eaton | 3TR7 Twin Line Thermoplastic Hydraulic Hose (SAE 100R7) | -04 Hose | 250ft / Box (Two Pieces)

3TR7-04-2-250BX Synflex Optimum by Danfoss | 3TR7 Twin Line Thermoplastic Hydraulic Hose | SAE 100R7 | -04 Hose | Old Part # 3130-04 | 250ft / Box (Two Pieces)

$1,954.15 - $1,954.15

$1,954.15

$1,954.15 - $1,954.15

$1,954.15

Synflex Optimum by Danfoss
3TR7 Thermoplastic Hydraulic Hose - SAE 100R7

3TR7 supersedes 3130, 3160

Package Quantity: 250 FT

Quantity

Specifications for Variant SKU: 3TR7-04-2-250BX Danfoss \| 250 \|
Brand:	Aeroquip, Synflex Optimum
Series:	3TR7 Series
Hose Color(s):	Black
Dash Size:	-4
Internal Diameter:	0.25in
Outer Diameter:	0.49in
Tubing Construction:	Nylon
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R7
Special Properties:	Twin Line

SPECIFICATIONS

Other Features:
Applications:	Agriculture, Horticulture, Chemical transfer, Foam systems, Food processing, Forestry delimber, General construction, General hydraulic systems, Lubrication systems, Marine steering, Utility vehicles and pickers, Rescue apparatus & tools, Water jetter drain/sewer
SAE Rating:	SAE 100R7	Other Ratings:	N/A
Tube:	Nylon	Reinforcement:	1-textile braid
Cover:	Nonstick polyurethane	Temperature Range:	For oil-based fluids: -40°C to +100°C (-40°F to +212°F) For water-based fluids: -40°C to +66°C (-40°F to +150°F)
Approved Fittings:	4TA series, TTC/Z series with sleeve (FF91064), 902 series	Part Number Key	BC: Continuous length in box BX: 2 lengths per box, no length less than 20 ft. RL: Random length reel, 2 lengths per reel, no length less than 20 ft. R: Continuous length on reel
UV / Ozone Protection: The thermoplastic polyurethane and polyester outer-cover resists ozone, ultraviolent light and aging. Easier Routing and Installation: Eaton Synflex Optimum 100R7 and 100R8 hose covers were formulated to require 50% less routing force reducing the chance of kinking. Custom Thermoforming: Ability to mold into configurations that match system design. Higher Abrasion Resistance: The new TPU and polyester cover increases abrasion resistant by 10%. Powerful Performance: Lift and handle heavy loads with hose power ranges extending from 1,015 psi to 5,000 psi. Chemical Resistance: Thermoplastic composition paired with nylon lining prevents absorption of most oils and hydraulic fluids. Flexible Design: Lightweight hose design drives performance efficiencies, reducing vehicle power requirements. Lighter Weight: Synthetic reinforced thermoplastic hoses are about 2x lighter then equivalent wire braided rubber hose. Bonding Capabilities: Synflex thermoplastic hoses can be permanently joined without the use of any mechanical devices. System Cleanliness: Thermoplastic hose will not degrade or create contaminants in filters and valves to help you maintain a clean system. Noise Reduction: Special reinforcements on the thermoplastic hoses help reduce machine noise.

50ft Box (Two Pieces)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight (Lbs/Ft)
		Hose ID	Hose OD	SAE		Min. Burst Pressure		Min. Bend Radius		Weight (Lbs/Ft)
		in.	in.	bar	PSI	bar	PSI	in.		kg/m	lbs/ft
3TR7-02-050BX	-02	0.12"	0.33"	-	3050 PSI	-	12200 PSI	0.50"	50ft	-	0.3 lbs/ft
3TR7-03-050BX	-03	0.19"	0.425"	-	3050 PSI	-	12200 PSI	0.75"	50ft	-	0.05 lbs/ft
3TR7-04-050BX	-04	0.25"	0.49"	192 bar	2800 PSI	759 bar	11000 PSI	1.25"	50ft	0,09 kg/m	0.06 lbs/ft
3TR7-05-050BX	-05	0.31"	0.57"	175 bar	2550 PSI	690 bar	10000 PSI	1.50"	50ft	0,13 kg/m	0.08 lbs/ft
3TR7-06-050BX	-06	0.38"	0.65"	157 bar	2300 PSI	621 bar	9000 PSI	2.00"	50ft	0,15 kg/m	0.10 lbs/ft
3TR7-08-050BX	-08	0.50"	0.82"	140 bar	2050 PSI	621 bar	9000 PSI	2.75"	50ft	0,21 kg/m	0.14 lbs/ft
3TR7-10-050BX	-10	0.63"	0.93"	105 bar	1525 PSI	421 bar	6100 PSI	4.00"	50ft	0,24 kg/m	0.16 lbs/ft
3TR7-12-050BX	-12	0.75"	1.04"	87 bar	1250 PSI	348 bar	5000 PSI	4.25"	50ft	0,26 kg/m	0.17 lbs/ft
3TR7-16-050BX	-16	1.00"	1.33"	70 bar	1000 PSI	280 bar	4000 PSI	7.50"	50ft	0,40 kg/m	0.27 lbs/ft

50ft Box (One Continuous Piece)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight (Lbs/Ft)
		Hose ID	Hose OD	SAE		Min. Burst Pressure		Min. Bend Radius		Weight (Lbs/Ft)
		in.	in.	bar	PSI	bar	PSI	in.		kg/m	lbs/ft
3TR7-02-050BC	-02	0.12"	0.33"	-	3050 PSI	-	12200 PSI	0.50"	50ft	-	0.3 lbs/ft
3TR7-03-050BC	-03	0.19"	0.425"	-	3050 PSI	-	12200 PSI	0.75"	50ft	-	0.05 lbs/ft

250ft / Box (Two Pieces)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight (Lbs/Ft)
		Hose ID	Hose OD	SAE		Min. Burst Pressure		Min. Bend Radius		Weight (Lbs/Ft)
		in.	in.	bar	PSI	bar	PSI	in.		kg/m	lbs/ft
3TR7-02-250BX	-02	0.12"	0.33"	-	3050 PSI	-	12200 PSI	0.50"	250ft	-	0.3 lbs/ft
3TR7-03-250BX	-03	0.19"	0.425"	-	3050 PSI	-	12200 PSI	0.75"	250ft	-	0.05 lbs/ft
3TR7-04-250BX	-04	0.25"	0.49"	192 bar	2800 PSI	759 bar	11000 PSI	1.25"	250ft	0,09 kg/m	0.06 lbs/ft
3TR7-05-250BX	-05	0.31"	0.57"	175 bar	2550 PSI	690 bar	10000 PSI	1.50"	250ft	0,13 kg/m	0.08 lbs/ft
3TR7-06-250BX	-06	0.38"	0.65"	157 bar	2300 PSI	621 bar	9000 PSI	2.00"	250ft	0,15 kg/m	0.10 lbs/ft
3TR7-08-250BX	-08	0.50"	0.82"	140 bar	2050 PSI	621 bar	9000 PSI	2.75"	250ft	0,21 kg/m	0.14 lbs/ft
3TR7-10-250BX	-10	0.63"	0.93"	105 bar	1525 PSI	421 bar	6100 PSI	4.00"	250ft	0,24 kg/m	0.16 lbs/ft
3TR7-12-200BX	-12	0.75"	1.04"	87 bar	1250 PSI	348 bar	5000 PSI	4.25"	200ft	0,26 kg/m	0.17 lbs/ft
3TR7-16-200BX	-16	1.00"	1.33"	70 bar	1000 PSI	280 bar	4000 PSI	7.50"	200ft	0,40 kg/m	0.27 lbs/ft

250ft / Box (One Continuous Piece)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight (Lbs/Ft)
		Hose ID	Hose OD	SAE		Min. Burst Pressure		Min. Bend Radius		Weight (Lbs/Ft)
		in.	in.	bar	PSI	bar	PSI	in.		kg/m	lbs/ft
3TR7-02-250BC	-02	0.12"	0.33"	-	3050 PSI	-	12200 PSI	0.50"	250ft	-	0.3 lbs/ft
3TR7-03-250BC	-03	0.19"	0.425"	-	3050 PSI	-	12200 PSI	0.75"	250ft	-	0.05 lbs/ft
3TR7-04-250BC	-04	0.25"	0.49"	192 bar	2800 PSI	759 bar	11000 PSI	1.25"	250ft	0,09 kg/m	0.06 lbs/ft
3TR7-05-250BC	-05	0.31"	0.57"	175 bar	2550 PSI	690 bar	10000 PSI	1.50"	250ft	0,13 kg/m	0.08 lbs/ft
3TR7-06-250BC	-06	0.38"	0.65"	157 bar	2300 PSI	621 bar	9000 PSI	2.00"	250ft	0,15 kg/m	0.10 lbs/ft
3TR7-08-250BC	-08	0.50"	0.82"	140 bar	2050 PSI	621 bar	9000 PSI	2.75"	250ft	0,21 kg/m	0.14 lbs/ft
3TR7-10-250BC	-10	0.63"	0.93"	105 bar	1525 PSI	421 bar	6100 PSI	4.00"	250ft	0,24 kg/m	0.16 lbs/ft
3TR7-12-200BC	-12	0.75"	1.04"	87 bar	1250 PSI	348 bar	5000 PSI	4.25"	200ft	0,26 kg/m	0.17 lbs/ft
3TR7-16-200BC	-16	1.00"	1.33"	70 bar	1000 PSI	280 bar	4000 PSI	7.50"	200ft	0,40 kg/m	0.27 lbs/ft

500ft Reel (Two Pieces)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight (Lbs/Ft)
		Hose ID	Hose OD	SAE		Min. Burst Pressure		Min. Bend Radius		Weight (Lbs/Ft)
		in.	in.	bar	PSI	bar	PSI	in.		kg/m	lbs/ft
3TR7-02-500RL	-02	0.12"	0.33"	-	3050 PSI	-	12200 PSI	0.50"	500ft	-	0.3 lbs/ft
3TR7-04-500RL	-04	0.25"	0.49"	192 bar	2800 PSI	759 bar	11000 PSI	1.25"	500ft	0,09 kg/m	0.06 lbs/ft
3TR7-05-500RL	-05	0.31"	0.57"	175 bar	2550 PSI	690 bar	10000 PSI	1.50"	500ft	0,13 kg/m	0.08 lbs/ft
3TR7-06-500RL	-06	0.39"	0.65"	157 bar	2300 PSI	621 bar	9000 PSI	2.00"	500ft	0,15 kg/m	0.10 lbs/ft
3TR7-08-500RL	-08	0.50"	0.82"	140 bar	2050 PSI	621 bar	9000 PSI	2.75"	500ft	0,21 kg/m	0.14 lbs/ft
3TR7-10-500RL	-10	0.63"	0.93"	105 bar	1525 PSI	421 bar	6100 PSI	4.00"	500ft	0,24 kg/m	0.16 lbs/ft
3TR7-12-500RL	-12	0.75"	1.04"	87 bar	1250 PSI	348 bar	5000 PSI	4.25"	500ft	0,26 kg/m	0.17 lbs/ft
3TR7-16-500RL	-16	1.00"	1.33"	70 bar	1000 PSI	280 bar	4000 PSI	7.50"	500ft	0,40 kg/m	0.27 lbs/ft

500ft Reel (One Continuous Piece)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight (Lbs/Ft)
		Hose ID	Hose OD	SAE		Min. Burst Pressure		Min. Bend Radius		Weight (Lbs/Ft)
		in.	in.	bar	PSI	bar	PSI	in.		kg/m	lbs/ft
3TR7-02-500R	-02	0.12"	0.33"	-	3050 PSI	-	12200 PSI	0.50"	500ft	-	0.3 lbs/ft
3TR7-03-500R	-03	0.19"	0.425"	-	3050 PSI	-	12200 PSI	0.75"	500ft	-	0.05 lbs/ft

Twin Line: 250ft / Box (Two Pieces)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight (Lbs/Ft)
		Hose ID	Hose OD	SAE		Min. Burst Pressure		Min. Bend Radius		Weight (Lbs/Ft)
		in.	in.	bar	PSI	bar	PSI	in.		kg/m	lbs/ft
3TR7-04-2-250BX	-04	0.25"	0.49"	192 bar	2800 PSI	759 bar	11000 PSI	1.25"	250ft	0,09 kg/m	0.06 lbs/ft
3TR7-05-2-250BX	-05	0.31"	0.57"	175 bar	2550 PSI	690 bar	10000 PSI	1.50"	250ft	0,13 kg/m	0.08 lbs/ft
3TR7-06-2-250BX	-06	0.38"	0.65"	157 bar	2300 PSI	621 bar	9000 PSI	2.00"	250ft	0,15 kg/m	0.10 lbs/ft
3TR7-08-2-250BX	-08	0.50"	0.82"	140 bar	2050 PSI	621 bar	9000 PSI	2.75"	250ft	0,21 kg/m	0.14 lbs/ft

Quad Line: 250ft Reel (One Continuous Piece)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight (Lbs/Ft)
		Hose ID	Hose OD	SAE		Min. Burst Pressure		Min. Bend Radius		Weight (Lbs/Ft)
		in.	in.	bar	PSI	bar	PSI	in.		kg/m	lbs/ft
3TR7-04-4-250R	-04	0.25"	0.49"	192 bar	2800 PSI	759 bar	11000 PSI	1.25"	250ft	0,09 kg/m	0.06 lbs/ft
