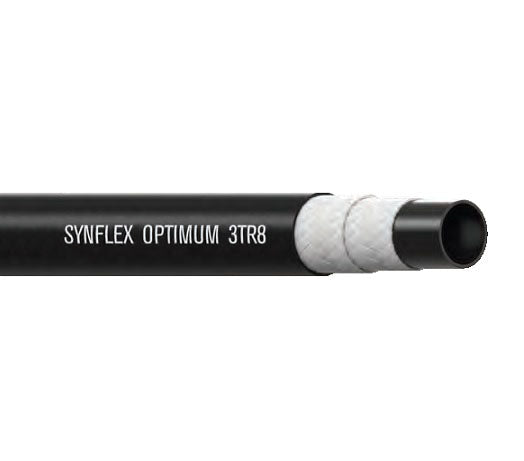

3TR8-16-200BX Synflex Optimum by Danfoss Eaton | 3TR8 Thermoplastic Hydraulic Hose (SAE 100R8) | -16 Hose | 200ft / Box (Two Pieces)

3TR8-16-200BX Synflex Optimum by Danfoss | 3TR8 Thermoplastic Hydraulic Hose | SAE 100R8 | -16 Hose | Old Part # 3R80-16 | 200ft / Box (Two Pieces)

$3,657.12 - $3,657.12

$3,657.12

$3,657.12 - $3,657.12

$3,657.12

Synflex Optimum by Danfoss
3TR8 Thermoplastic Hydraulic Hose - SAE 100R8

3TR8 supersedes 3R80 and 3800

Package Quantity: 200 FT

Quantity

Specifications for Variant SKU: 3TR8-16-200BX Danfoss \| 200 \|
Brand:	Aeroquip, Synflex Optimum
Series:	3TR8 Series
Hose Color(s):	Black
Dash Size:	-16
Internal Diameter:	1.00in
Outer Diameter:	1.43in
Tubing Construction:	Nylon
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R8

SPECIFICATIONS

Other Features:
Applications:	Air tools, Cooling/misting/dust suppression, Forestry delimber, General construction, General hydraulic, High pressure chemical transfer, Marine steering, Mobile machinery, Utility vehicles, Recreational vehicles, Rescue tools & equipment
SAE Rating:	SAE 100R8	Other Ratings:	N/A
Tube:	Nylon	Reinforcement:	2-textile braid
Cover:	Nonstick polyurethane	Temperature Range:	For oil-based fluids: -40°C to +100°C (-40°F to +212°F) For water-based fluids: -40°C to +66°C (-40°F to +150°F)
Approved Fittings:	4TA series, TTC/Z series with sleeve (FF91064)	Part Number Key	BC: Continuous length in box BX: 2 lengths per box, no length less than 20 ft. RL: Random length reel, 2 lengths per reel, no length less than 20 ft. R: Continuous length on reel
UV / Ozone Protection: The thermoplastic polyurethane and polyester outer-cover resists ozone, ultraviolent light and aging. Easier Routing and Installation: Eaton Synflex Optimum 100R7 and 100R8 hose covers were formulated to require 50% less routing force reducing the chance of kinking. Custom Thermoforming: Ability to mold into configurations that match system design. Higher Abrasion Resistance: The new TPU and polyester cover increases abrasion resistant by 10%. Powerful Performance: Lift and handle heavy loads with hose power ranges extending from 1,015 psi to 5,000 psi. Chemical Resistance: Thermoplastic composition paired with nylon lining prevents absorption of most oils and hydraulic fluids. Flexible Design: Lightweight hose design drives performance efficiencies, reducing vehicle power requirements. Lighter Weight: Synthetic reinforced thermoplastic hoses are about 2x lighter then equivalent wire braided rubber hose. Bonding Capabilities: Synflex thermoplastic hoses can be permanently joined without the use of any mechanical devices. System Cleanliness: Thermoplastic hose will not degrade or create contaminants in filters and valves to help you maintain a clean system. Noise Reduction: Special reinforcements on the thermoplastic hoses help reduce machine noise.

50ft Box (Two Pieces)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight
Part Number	Hose Size	in.	in.	bar	PSI	bar	PSI	in.	Standard Length	kg/m	lbs/ft
3TR8-04-050BX	-04	0.25"	0.59"	350 bar	5100 PSI	1400 bar	20400 PSI	1.50"	50ft	0,16 kg/m	0.11 lbs/ft
3TR8-06-050BX	-06	0.38"	0.75"	280 bar	4500 PSI	1120 bar	16200 PSI	2.25"	50ft	0,23 kg/m	0.15 lbs/ft
3TR8-08-050BX	-08	0.50"	0.90"	245 bar	3550 PSI	980 bar	14200 PSI	3.00"	50ft	0,29 kg/m	0.20 lbs/ft
3TR8-12-050BX	-12	0.75"	1.13"	157 bar	2300 PSI	628 bar	9200 PSI	4.50"	50ft	0,38 kg/m	0.25 lbs/ft
3TR8-16-050BX	-16	1.00"	1.43"	140 bar	2050 PSI	560 bar	8200 PSI	7.75"	50ft	0,57 kg/m	0.38 lbs/ft

250ft / Box (Two Pieces)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight
Part Number	Hose Size	in.	in.	bar	PSI	bar	PSI	in.	Standard Length	kg/m	lbs/ft
3TR8-04-250BX	-04	0.25"	0.59"	350 bar	5100 PSI	1400 bar	20400 PSI	1.50"	250ft	0,16 kg/m	0.11 lbs/ft
3TR8-06-250BX	-06	0.38"	0.75"	280 bar	4500 PSI	1120 bar	16200 PSI	2.25"	250ft	0,23 kg/m	0.15 lbs/ft
3TR8-08-250BX	-08	0.50"	0.90"	245 bar	3550 PSI	980 bar	14200 PSI	3.00"	250ft	0,29 kg/m	0.20 lbs/ft
3TR8-12-200BX	-12	0.75"	1.13"	157 bar	2300 PSI	628 bar	9200 PSI	4.50"	200ft	0,38 kg/m	0.25 lbs/ft
3TR8-16-200BX	-16	1.00"	1.43"	140 bar	2050 PSI	560 bar	8200 PSI	7.75"	200ft	0,57 kg/m	0.38 lbs/ft

250ft / Box (One Continuous Piece)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight
Part Number	Hose Size	in.	in.	bar	PSI	bar	PSI	in.	Standard Length	kg/m	lbs/ft
3TR8-04-250BC	-04	0.25"	0.59"	350 bar	5100 PSI	1400 bar	20400 PSI	1.50"	250ft	0,16 kg/m	0.11 lbs/ft
3TR8-06-250BC	-06	0.38"	0.75"	280 bar	4500 PSI	1120 bar	16200 PSI	2.25"	250ft	0,23 kg/m	0.15 lbs/ft
3TR8-08-250BC	-08	0.50"	0.90"	245 bar	3550 PSI	980 bar	14200 PSI	3.00"	250ft	0,29 kg/m	0.20 lbs/ft
3TR8-12-200BC	-12	0.75"	1.13"	157 bar	2300 PSI	628 bar	9200 PSI	4.50"	200ft	0,38 kg/m	0.25 lbs/ft
3TR8-16-200BC	-16	1.00"	1.43"	140 bar	2050 PSI	560 bar	8200 PSI	7.75"	200ft	0,57 kg/m	0.38 lbs/ft

500ft Reel (Two Pieces)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight
Part Number	Hose Size	in.	in.	bar	PSI	bar	PSI	in.	Standard Length	kg/m	lbs/ft
3TR8-04-500RL	-04	0.25"	0.59"	350 bar	5100 PSI	1400 bar	20400 PSI	1.50"	500ft	0,16 kg/m	0.11 lbs/ft
3TR8-06-500RL	-06	0.38"	0.75"	280 bar	4500 PSI	1120 bar	16200 PSI	2.25"	500ft	0,23 kg/m	0.15 lbs/ft
3TR8-08-500RL	-08	0.50"	0.90"	245 bar	3550 PSI	980 bar	14200 PSI	3.00"	500ft	0,29 kg/m	0.20 lbs/ft
3TR8-12-500RL	-12	0.75"	1.13"	157 bar	2300 PSI	628 bar	9200 PSI	4.50"	500ft	0,38 kg/m	0.25 lbs/ft
3TR8-16-500RL	-16	1.00"	1.43"	140 bar	2050 PSI	560 bar	8200 PSI	7.75"	500ft	0,57 kg/m	0.38 lbs/ft

Twin Line: 250ft / Box (Two Pieces)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight
Part Number	Hose Size	in.	in.	bar	PSI	bar	PSI	in.	Standard Length	kg/m	lbs/ft
3TR8-04-2-250BX	-04	0.25"	0.59"	350 bar	5100 PSI	1400 bar	20400 PSI	1.50"	250ft	0,16 kg/m	0.11 lbs/ft
3TR8-06-2-250BX	-06	0.38"	0.75"	280 bar	4500 PSI	1120 bar	16200 PSI	2.25"	250ft	0,23 kg/m	0.15 lbs/ft
3TR8-08-2-250BX	-08	0.50"	0.90"	245 bar	3550 PSI	980 bar	14200 PSI	3.00"	250ft	0,29 kg/m	0.20 lbs/ft

Quad Line: 250ft Reel (One Continuous Piece)
Part Number	Hose Size	Hose ID	Hose OD	Working Pressure		Min. Burst Pressure		Min. Bend Radius	Standard Length	Weight
Part Number	Hose Size	in.	in.	bar	PSI	bar	PSI	in.	Standard Length	kg/m	lbs/ft
3TR8-08-4-250RC	-08	0.50"	0.90"	245 bar	3550 PSI	980 bar	14200 PSI	3.00"	250ft	0,29 kg/m	0.20 lbs/ft

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
