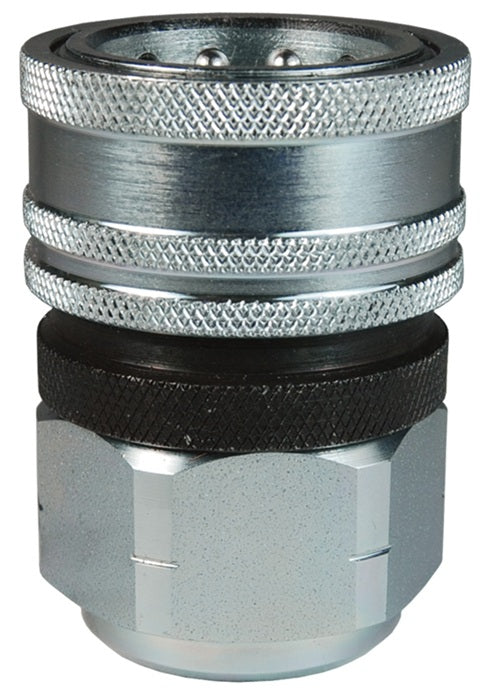

3TRF3 by Dixon Valve | Hydraulic Quick Disconnect Coupling | TR-Series | 3/8" Female NPTF x 3/8" European Interchange | Socket | Nitrile Seal | Steel

Save $30.69

$76.73

$76.73 - $76.73

$76.73

$46.04

$46.04 - $46.04

$46.04

Dixon Valve & Coupling
Hydraulic Coupling: TR-Series European Interchange Coupler (Female Threads)

Specifications for Variant SKU: 3TRF3 Dixon
Series:	TR-Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female TEMA European QD Interchange, 3/8in Female NPTF
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	TEMA European Interchange TEMA 3800, 5000, 7500, 10000 Series CEJN Series 525
Construction:	Machined components are manufactured using solid steel bar stock. Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS-compliant trivalent chrome. Steel coupler sleeves are hardened to resist deformation and maximize service life. Steel plugs are hardened to provide heavy-duty performance.
Seal Components:	Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C). Couplers have a redundant O-ring sealing system (dual O-rings with inner PTFE back-up ring). Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

Rated Pressure Chart \| TR-Series European Interchange (Connected) Steel Coupler/Plug
Body Size	Maximum Working		Burst
3/8"	5,000 PSI	345 bar	20,000 PSI	1,400 bar
1/2"	4,000 PSI	275 bar	16,500 PSI	1,100 bar
3/4"	4,000 PSI	275 bar	15,400 PSI	1,000 bar
1"	3,200 PSI	220 bar	12,800 PSI	900 bar

TR-Series \| European Interchange Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
3TRF3	Socket/Female	3/8"	3/8" - 18 Female NPTF	Steel	2.52" (64.0mm)	1.38" (35.0mm)	30mm
3TRBF3	Socket/Female	3/8"	3/8" - 19 Female BSPP	Steel	2.52" (64.0mm)	1.38" (35.0mm)	30mm
4TRF4	Socket/Female	1/2"	1/2" - 14 Female NPTF	Steel	2.62" (66.5mm)	1.57" (40.0mm)	36mm
4TRBF4	Socket/Female	1/2"	1/2" - 14 Female BSPP	Steel	2.62" (66.5mm)	1.57" (40.0mm)	36mm
6TRF6	Socket/Female	3/4"	3/4" - 14 Female NPTF	Steel	3.35" (85.0mm)	2.05" (52.0mm)	41mm
6TRBF6	Socket/Female	3/4"	3/4" - 14 Female BSPP	Steel	3.35" (85.0mm)	2.05" (52.0mm)	41mm
8TRF8	Socket/Female	1"	1" - 11-1/2 Female NPTF	Steel	3.90" (99.0mm)	2.56" (65.0mm)	55mm
8TRBF8	Socket/Female	1"	1" - 11 Female BSPP	Steel	3.90" (99.0mm)	2.56" (65.0mm)	55mm

TR-Series \| European Interchange Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
TR3F3	Plug/Male	3/8"	3/8" - 18 Female NPTF	Steel	1.59" (40.5mm)	1.00" (25.4mm)	22mm
TR3BF3	Plug/Male	3/8"	3/8" - 19 Female BSPP	Steel	1.59" (40.5mm)	1.00" (25.4mm)	22mm
TR4F4	Plug/Male	1/2"	1/2" - 14 Female NPTF	Steel	1.63" (41.5mm)	1.23" (31.1mm)	27mm
TR4BF4	Plug/Male	1/2"	1/2" - 14 Female BSPP	Steel	1.63" (41.5mm)	1.23" (31.1mm)	27mm
TR4F6	Plug/Male	3/4"	3/4" - 14 Female NPTF	Steel	2.20" (56.0mm)	1.63" (41.5mm)	36mm
TR6BF6	Plug/Male	3/4"	3/4" - 14 Female BSPP	Steel	2.20" (56.0mm)	1.63" (41.5mm)	36mm
TR8F8	Plug/Male	1"	1" - 11-1/2 Female NPTF	Steel	2.48" (63.0mm)	2.09" (53.0mm)	46mm
TR8BF8	Plug/Male	1"	1" - 11 Female BSPP	Steel	2.48" (63.0mm)	2.09" (53.0mm)	46mm

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
