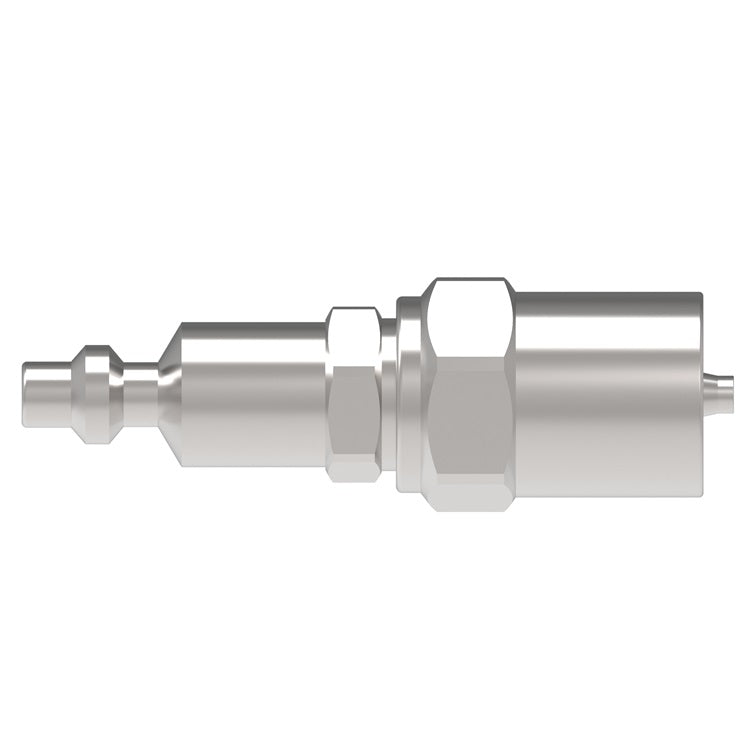

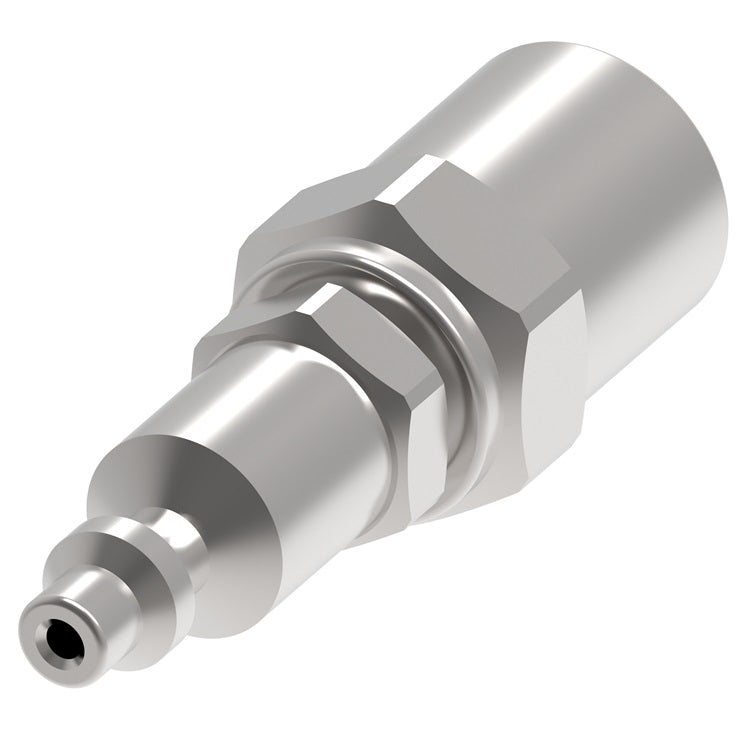

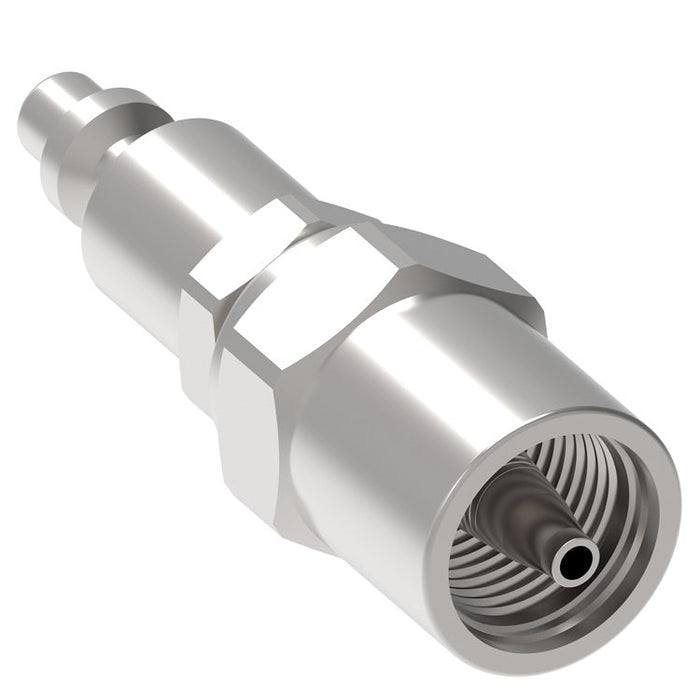

3PB1 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series / 3000 Series | Hose Crimp End | 15/32" Hose OD | 1/4" Hose ID x 1/4" Body Size | Plug | Steel

3PB1 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series / 3000 Series | Hose Crimp End | 15/32" Hose OD | 1/4" Hose ID x 1/4" Body Size | Plug | Steel

$10.07 - $10.07
$10.07
$10.07 - $10.07
$10.07

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 1000 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 1000/400/500 Series is an Industrial Interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases, and liquids.
Specifications for Variant SKU: 3PB1 Danfoss
Brand: Hansen
Series: 1000 Series / 3000 Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Ball latching mechanism.
  • All sizes accept US Industrial Interchange.
Applications & Markets:
  • General Pneumatics
  • Construction
  • Industrial Plants
Materials:
  • Standard body material: Brass, Steel, Stainless Steel, Nickel Plated Steel Sleeve
  • Standard seal material: Nitrile (NBR)
Specifications:
  • 1/4" & 1/2" accept ISO 6150 B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
1000 1/4" 138 bar 2,000 psi 552 bar 8,000 psi 9 lpm 179 gpm
Interchangeability
All Sizes 1/4" & 1/2" 400 Series
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)		 Tru-Flate
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
1000 Series | Sockets
Part Number Coupling Type Body Size Hose ID Hose OD End Type Material Figure Dimensions
A B Hex
1SB1 Socket/Female 1/4" 1/4" 15/32" Hose Crimp Brass 1 2.69"
(68.33mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)
1SB3 Socket/Female 1/4" 1/4" 1/2" Hose Crimp Brass 1 2.69"
(68.33mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)
1SD9 Socket/Female 1/4" 3/8" 11/16" Hose Crimp Brass 1 2.81"
(71.37mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)
1SD11 Socket/Female 1/4" 3/8" 3/4" Hose Crimp Brass 1 2.81"
(71.37mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)
1000 Series | Plugs
Part Number Coupling Type Body Size Hose ID Hose OD End Type Material Figure Dimensions
C D Hex
3PB1 Plug/Male 1/4" 1/4" 15/32" Hose Crimp Steel 2 2.31"
(58.67mm)		 0.70"
(17.78mm)		 0.63"
(16.00mm)
3PB3 Plug/Male 1/4" 1/4" 1/2" Hose Crimp Steel 2 2.31"
(58.67mm)		 0.70"
(17.78mm)		 0.63"
(16.00mm)
3PB5 Plug/Male 1/4" 1/4" 9/16" Hose Crimp Steel 2 2.31"
(58.67mm)		 0.77"
(19.56mm)		 0.69"
(17.53mm)
3PB7 Plug/Male 1/4" 1/4" 5/8" Hose Crimp Steel 2 2.31"
(58.67mm)		 0.84"
(21.34mm)		 0.75"
(19.05mm)
3PC5 Plug/Male 1/4" 5/16" 9/16" Hose Crimp Steel 2 2.38"
(60.45mm)		 0.77"
(19.56mm)		 0.69"
(17.53mm)
3PC7 Plug/Male 1/4" 5/16" 5/8" Hose Crimp Steel 2 2.38"
(60.45mm)		 0.84"
(21.34mm)		 0.75"
(19.05mm)
3PD5 Plug/Male 1/4" 3/8" 9/16" Hose Crimp Steel 2 2.44"
(61.98mm)		 0.77"
(19.56mm)		 0.69"
(17.53mm)
3PD7 Plug/Male 1/4" 3/8" 5/8" Hose Crimp Steel 2 2.44"
(61.98mm)		 0.84"
(21.34mm)		 0.75"
(19.05mm)
3PD9 Plug/Male 1/4" 3/8" 11/16" Hose Crimp Steel 2 2.44"
(61.98mm)		 0.91"
(23.11mm)		 0.81"
(20.57mm)
3PD11 Plug/Male 1/4" 3/8" 3/4" Hose Crimp Steel 2 2.44"
(61.98mm)		 1.01"
(25.65mm)		 0.88"
(22.35mm)
