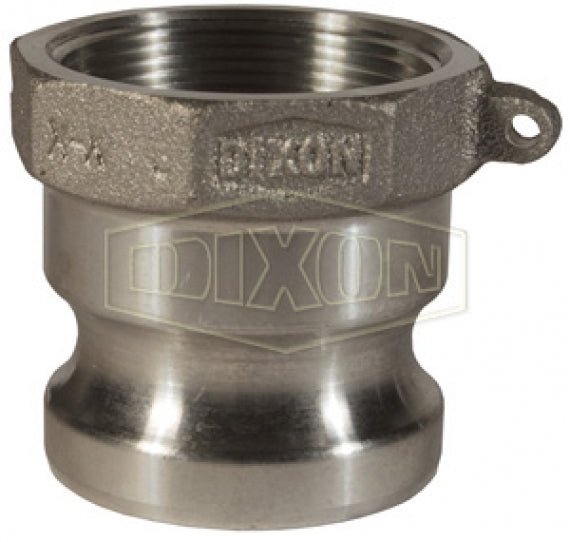

400-A-AL by Dixon Valve | Cam & Groove Adapter | Type A | 4" Adapter x 4" Female NPT | 356T6 Aluminum

Name: 400-A-AL by Dixon Valve | Cam & Groove Adapter | Type A | 4" Adapter x 4" Female NPT | 356T6 Aluminum
Brand: Dixon
SKU: 400-A-AL Dixon
Price: 45.31 USD
Availability: InStock

Save $3.93

$49.24

$49.24 - $49.24

$49.24

$45.31

$45.31 - $45.31

$45.31

Dixon Valve
Cam & Groove Adapter | Type A | Adapter x Female NPT

Designed for use with liquids.

Quantity

Specifications for Variant SKU: 400-A-AL Dixon
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	4in Female NPT, 4in Male Cam & Groove
Material(s):	Aluminum

Features:
Precision machined to rigid tolerances.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Note:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating is based on the seal of the mating part. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon. Dixon and Boss-Lock cam and groove couplings do not interchange in the 1/2" & 8" size.
Specifications:
No standard exists for the 1/2" fittings, and generally does not interchange with other manufacturers.

356T6 Aluminum Part Number	Aluminum Hard Coat Part Number	Brass Part Number	Unplated Malleable Iron Part Number	Plated Malleable Iron Part Number	316 Stainless Steel Part Number	Size	Max. Operating Pressure
50-A-AL*	-	50-A-BR	-	-	50-A-SS	1/2"	150 PSI
7550-A-AL*	-	7550-A-BR	-	-	7550-A-SS	3/4" x 1/2"	250 PSI
75-A-AL*	-	75-A-BR	-	75-A-PM	75-A-SS	3/4"	250 PSI
100-A-AL*	-	100-A-BR	-	100-A-PM	100-A-SS	1"	250 PSI
125-A-AL	-	125-A-BR	-	-	125-A-SS	1-1/4"	250 PSI
150-A-AL	150-A-ALH	150-A-BR	150-A-MI	150-A-PM	150-A-SS	1-1/2"	250 PSI
200-A-AL	200-A-ALH	200-A-BR	200-A-MI	200-A-PM	200-A-SS	2"	250 PSI
250-A-AL	-	250-A-BR	-	-	250-A-SS	2-1/2"	150 PSI
300-A-AL	300-A-ALH	300-A-BR	300-A-MI	300-A-PM	300-A-SS	3"	125 PSI
400-A-AL	400-A-ALH	400-A-BR	400-A-MI	400-A-PM	400-A-SS	4"	100 PSI
500-A-AL	-	500-A-BR	500-A-MI	-	500-A-SS	5"	75 PSI
600-A-AL	600-A-ALH	600-A-BR	-	600-A-PM	600-A-SS	6"	75 PSI
800-A-AL	-	-	-	-	-	8" DIX	50 PSI
801-A-AL	-	-	-	-	-	8" BL	75 PSI

* Made from 6061-T6 aluminum
