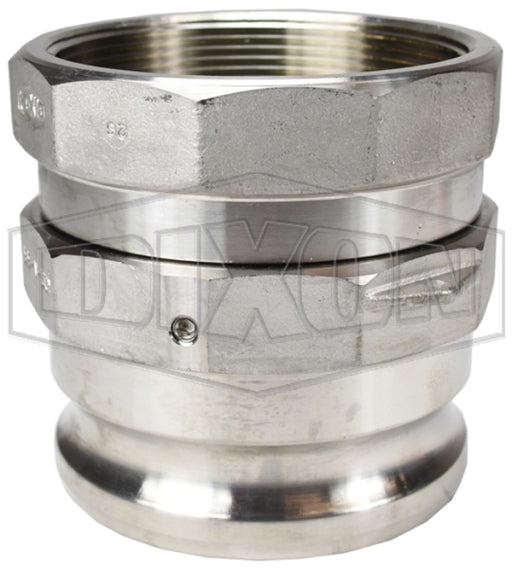

400-A-SSSWIV by Dixon Valve | Swivel Cam & Groove Adapter | Type A | 4" Adapter x 4" Female NPT | 316 Stainless Steel

Name: 400-A-SSSWIV by Dixon Valve | Swivel Cam & Groove Adapter | Type A | 4" Adapter x 4" Female NPT | 316 Stainless Steel
Brand: Dixon
SKU: 400-A-SSSWIV Dixon
Price: 253.65 USD
Availability: InStock

Save $169.10

$422.75

$422.75 - $422.75

$422.75

$253.65

$253.65 - $253.65

$253.65

Dixon Valve
Swivel Coupling Cam & Groove | Type A Adapter | Adapter x Female NPT

Live swivel is capable of 360-degree rotation under pressure.

Quantity

Specifications for Variant SKU: 400-A-SSSWIV Dixon
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	4in Male Cam & Groove, 4in Female NPT
Material(s):	316 Stainless Steel
Special Properties:	Swivel

Features:
Nitrile rubber X-ring seal for reduced friction and high stability in dynamic applications. Couplers inculde EZ Boss-Lock cam arms. Gasket: nitrile rubber.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size	Maximum Operating Pressure
200-A-ALSWIV	200-A-SSSWIV	2"	250 PSI
300-A-ALSWIV	300-A-SSSWIV	3"	125 PSI
400-A-ALSWIV	400-A-SSSWIV	4"	100 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
