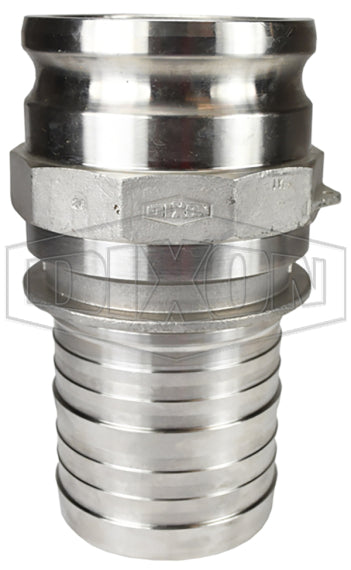

400-E-SSSWIV by Dixon Valve | Swivel Cam & Groove Adapter | Type E | 4" Adapter x 4" Hose Shank | 316 Stainless Steel

Name: 400-E-SSSWIV by Dixon Valve | Swivel Cam & Groove Adapter | Type E | 4" Adapter x 4" Hose Shank | 316 Stainless Steel
Brand: Dixon
SKU: 400-E-SSSWIV Dixon
Price: 251.27 USD
Availability: InStock

Save $167.51

$418.78

$418.78 - $418.78

$418.78

$251.27

$251.27 - $251.27

$251.27

Dixon Valve
Swivel Coupling Cam & Groove | Type E Adapter | Adapter x Hose Shank

Live swivel is capable of 360-degree rotation under pressure.

Specifications for Variant SKU: 400-E-SSSWIV Dixon
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	4in Male Cam & Groove, 4in Hose Barb
Material(s):	316 Stainless Steel
Special Properties:	Swivel

Features:
Nitrile rubber X-ring seal for reduced friction and high stability in dynamic applications. Gasket: nitrile rubber.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size	Maximum Operating Pressure
200-E-ALSWIV	200-E-SSSWIV	2"	250 PSI
300-E-ALSWIV	300-E-SSSWIV	3"	125 PSI 150 PSI with King Crimp ferrule system
400-E-ALSWIV	400-E-SSSWIV	4"	100 PSI 150 PSI with King Crimp ferrule system
