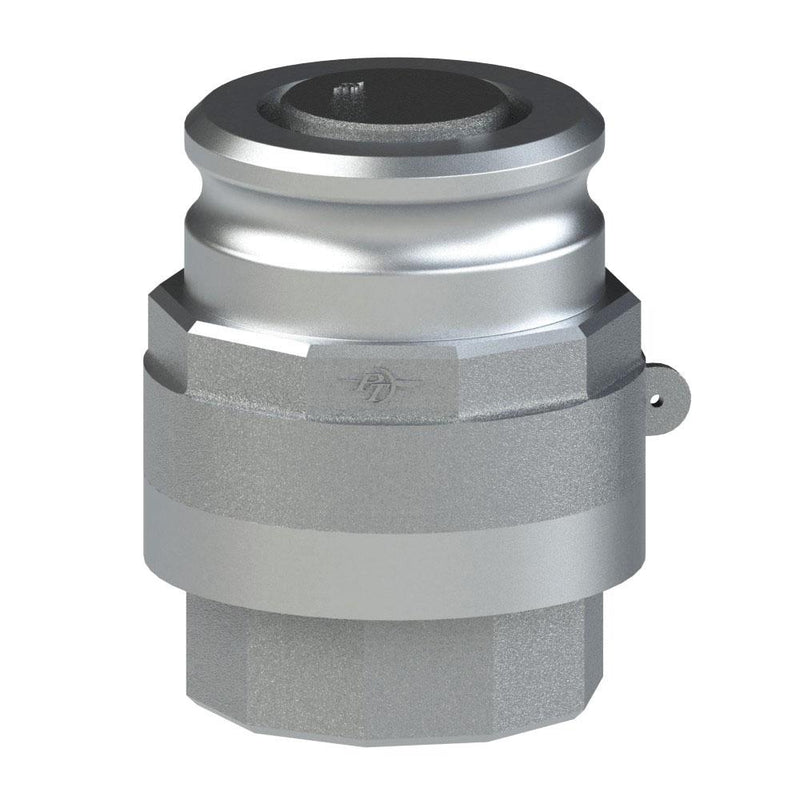

40000230T (MD20A) by PT-Coupling | MAXI-DRY® Dry Disconnect Adapter | 2"Adapter x 2" Female NPT | Aluminum | Teflon Seal

Name: 40000230T (MD20A) by PT-Coupling | MAXI-DRY® Dry Disconnect Adapter | 2"Adapter x 2" Female NPT | Aluminum | Teflon Seal
Brand: PT-Coupling
SKU: 40000230T PT-Coupling
Price: 250.13 USD
Availability: InStock

Save $147.67

$397.80

$397.80 - $397.80

$397.80

$250.13

$250.13 - $250.13

$250.13

PT Coupling
Petroleum Handling | MAXI-DRY® Dry Disconnect Adapter | Type MDA | Adapter x Female NPT

Made in the USA.

Specifications for Variant SKU: 40000230T PT-Coupling
Series:	Petroleum Handling
Shape (Orientation):	Straight
Material(s):	Aluminum
Seal Material(s):	Teflon

Overview:
PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Aluminum with Buna Seal Item #	Aluminum with Viton® Seal Item #	Aluminum with Teflon® Seal Item #	Aluminum with EPDM Seal Item #	Adapter Size	Female NPT Thread (Q)	Overall Length (O)	Width (P)	Coupler Size (R)	Pressure Rating
MD15A	40001530	40001530V	40001530T	40001530E	1-1/2"	1-1/2"	4.3"	3.2"	2"	200 PSI
MD20A	40000230	40000230V	40000230T	40000230E	2"	2"	5.2"	3.7"	2.5"	150 PSI
MD30A	40000330	40000330V	40000330T	40000330E	3"	3"	6.8"	5.6"	4"	125 PSI
MD40A	40000340	40000340V	-	-	4"	4"	6.8"	5.6"	4"	125 PSI

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
