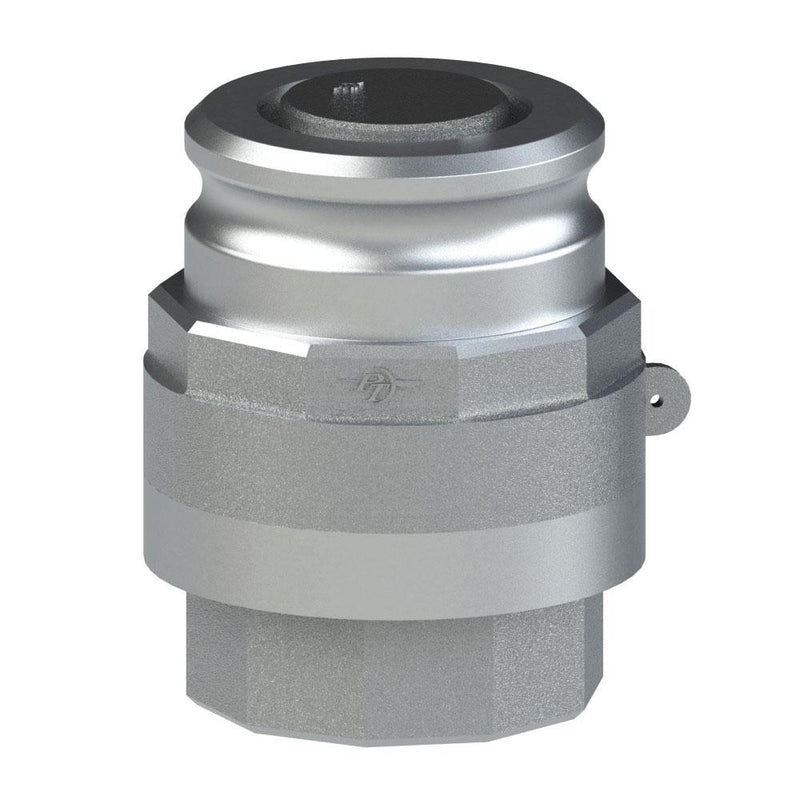

40000230E (MD20A) by PT-Coupling | MAXI-DRY® Dry Disconnect Adapter | 2"Adapter x 2" Female NPT | Aluminum | EPDM Seal

40000230E (MD20A) by PT-Coupling | MAXI-DRY® Dry Disconnect Adapter | 2"Adapter x 2" Female NPT | Aluminum | EPDM Seal

Save $125.61 Save $125.61
$338.40
$338.40 - $338.40
$338.40
$212.79
$212.79 - $212.79
$212.79

PT Coupling
Petroleum Handling | MAXI-DRY® Dry Disconnect Adapter | Type MDA | Adapter x Female NPT

Made in the USA.
Specifications for Variant SKU: 40000230E PT-Coupling
Series: Petroleum Handling
Shape (Orientation): Straight
Material(s): Aluminum
Seal Material(s): EPDM
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Aluminum with
Buna Seal
Item #		 Aluminum with
Viton® Seal
Item #		 Aluminum with
Teflon® Seal
Item #		 Aluminum with
EPDM Seal
Item #		 Adapter
Size		 Female NPT
Thread
(Q)		 Overall
Length
(O)		 Width
(P)		 Coupler
Size
(R)		 Pressure
Rating
MD15A 40001530 40001530V 40001530T 40001530E 1-1/2" 1-1/2" 4.3" 3.2" 2" 200 PSI
MD20A 40000230 40000230V 40000230T 40000230E 2" 2" 5.2" 3.7" 2.5" 150 PSI
MD30A 40000330 40000330V 40000330T 40000330E 3" 3" 6.8" 5.6" 4" 125 PSI
MD40A 40000340 40000340V - - 4" 4" 6.8" 5.6" 4" 125 PSI

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
