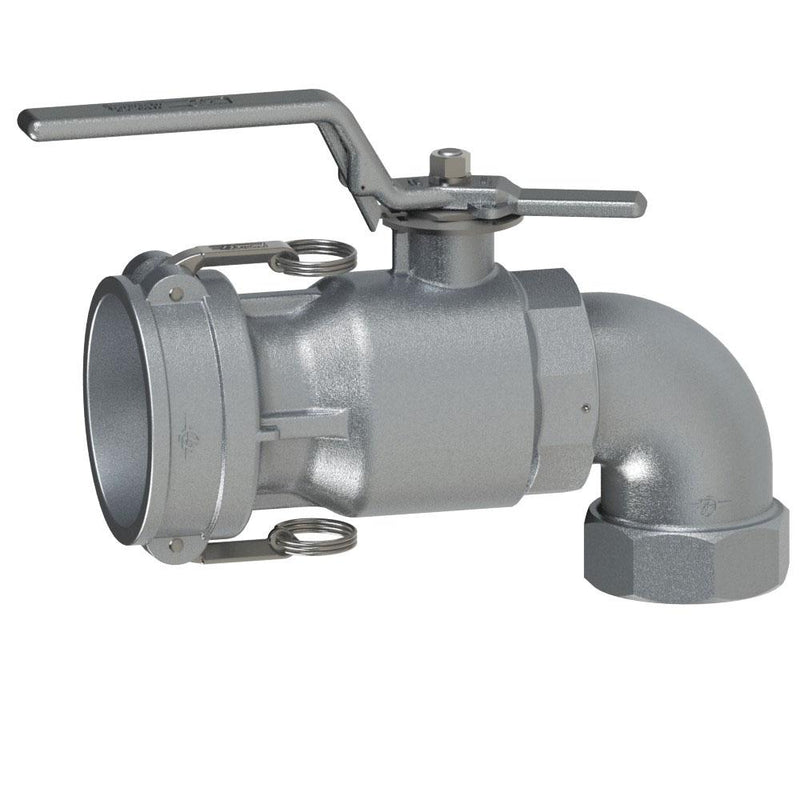

40000300SV (MD30DSW) by PT-Coupling | MAXI-DRY® Dry Disconnect Coupler | Type MDD90 | 90° Swivel Elbow | 3" Coupler x 3" Female NPT | Aluminum | Viton Seal

Save $1,287.96

$3,469.73

$3,469.73 - $3,469.73

$3,469.73

$2,181.77

$2,181.77 - $2,181.77

$2,181.77

PT Coupling
Petroleum Handling | MAXI-DRY® Dry Disconnect Couplers | Type MDD90 | 90° Swivel Elbow | Coupler x Female NPT

Made in the USA.

Specifications for Variant SKU: 40000300SV PT-Coupling
Series:	Petroleum Handling
Shape (Orientation):	90 Degree Elbow
Material(s):	Aluminum
Seal Material(s):	Viton
Special Properties:	Swivel

Overview:
PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Buna Item #	Viton® Item #	EPDM Item #	Coupler Size	Female NPT Thread (H)	A	B	C	D	E	F	G	I	J	Pressure Rating
MD20DSW	40000200S	40000200SV	40000200SE	2"	2"	10.9"	4"	4.4"	6.1"	4.3"	2.5"	5.1"	2.5"	2.8"	150 PSI
MD30DSW	40000300S	40000300SV	-	3"	3"	14.05"	5"	6.85"	9"	5.5"	4"	6.2"	4"	4.4"	125 PSI

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
