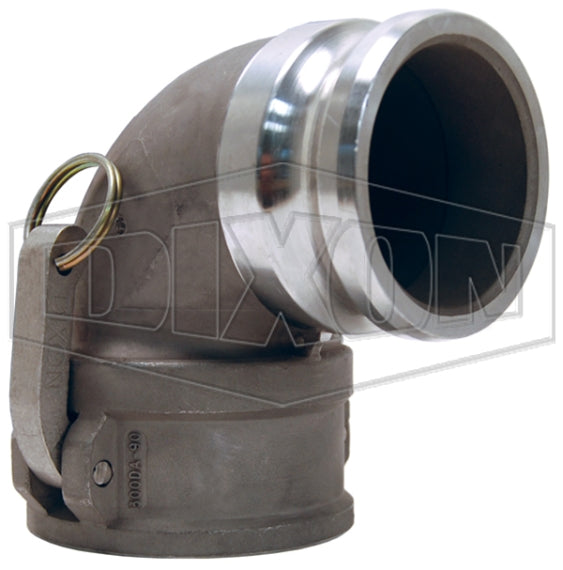

400DA-90SS by Dixon Valve | Cam & Groove Coupler | 90° Elbow | Type DA | 4" Adapter x 4" Coupler | 316 Stainless Steel

Save $57.51

$517.60

$517.60 - $517.60

$517.60

$460.09

$460.09 - $460.09

$460.09

Dixon Valve
Cam & Groove Coupler | 90° Elbow | Type DA | Adapter x Coupler

Designed for use with liquids.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 400DA-90SS Dixon
Shape (Orientation):	90 Degree
Cam Type:	Other
Ends Configuration:	4in Male Cam & Groove, 4in Female Cam & Groove
Material(s):	316 Stainless Steel
Seal Material(s):	Nitrile

Construction:
Seal: Nitrile Rubber
Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size	Maximum Operating Pressure
-	100DA-90SS*	1"	250 PSI
150DA-90AL*	150DA-90SS*	1-1/2"	250 PSI
200DA-90AL	200DA-90SS	2"	250 PSI
300DA-90AL	300DA-90SS	3"	125 PSI
400DA-90AL	400DA-90SS	4"	100 PSI
500DA-90AL*	-	5"	75 PSI
600DA-90AL	RDA90600EZ* (EZ Boss-Lock)	6"	75 PSI

* Parts are produced as a welded fabrication.
