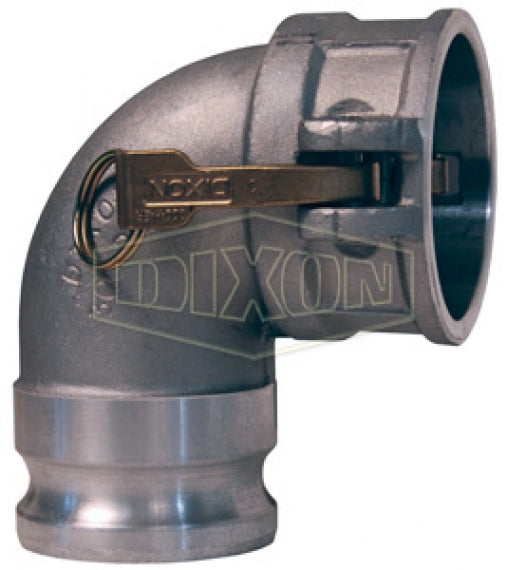

600DA-90AL by Dixon Valve | Cam & Groove Coupler | 90° Elbow | Type DA | 6" Adapter x 6" Coupler | Aluminum

Save $28.77

$359.61

$359.61 - $359.61

$359.61

$330.84

$330.84 - $330.84

$330.84

Dixon Valve
Cam & Groove Coupler | 90° Elbow | Type DA | Adapter x Coupler

Designed for use with liquids.

Quantity

Specifications for Variant SKU: 600DA-90AL Dixon
Shape (Orientation):	90 Degree
Cam Type:	Other
Ends Configuration:	6in Male Cam & Groove, 6in Female Cam & Groove
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Seal: Nitrile Rubber
Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size	Maximum Operating Pressure
-	100DA-90SS*	1"	250 PSI
150DA-90AL*	150DA-90SS*	1-1/2"	250 PSI
200DA-90AL	200DA-90SS	2"	250 PSI
300DA-90AL	300DA-90SS	3"	125 PSI
400DA-90AL	400DA-90SS	4"	100 PSI
500DA-90AL*	-	5"	75 PSI
600DA-90AL	RDA90600EZ* (EZ Boss-Lock)	6"	75 PSI

* Parts are produced as a welded fabrication.
