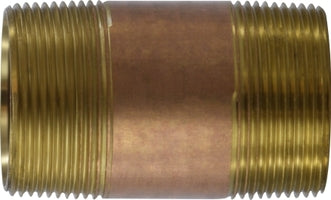

40140 (40-140) Midland Lead Free Schedule 40 Seamless Close Nipple - 1-1/2" Diameter - 1-3/4" (Close) Length - Red Brass

40140 by Midland | Lead Free Schedule 40 Seamless Close Nipple | 1-1/2" Diameter | 1-3/4" (Close) Length | Red Brass

Save $3.32 Save $3.32
$21.33
$21.33 - $21.33
$21.33
$18.01
$18.01 - $18.01
$18.01

Midland Industries
Brass Nipple - Lead Free Schedule 40 Seamless Nipple - 1-1/2" Diameter

Certified by NSF to NSF/ANSI 61 for use in drinking water supplies of pH 6.5 and above.

Inventory @ Manufacturers Warehouse: 2506 Units
Specifications for Variant SKU: 40140 Midland
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPT, 1-1/2in Male NPT, Some Ends Match
Material(s): Lead Free Brass
Applicable Specs & Approvals: ASTM B43, ANSI B1.20.1, WW-N-351, ANSI/ASTM B687-96, NSF-61 Approved, MS51846 STD, RoHS Compliant, Lead Free as per the Safe Drinking Water Act
Special Properties: Lead Free
Statement From Midland Industries:
  • We hereby certify that to the best of our knowledge and belief the CDA 230 alloy seamless Red Brass Pipe from which our nipples are produced meet the requirements of ASTM Specifications B43 and is free of mercury contamination. The chemical analysis is 85% copper, 15% Zinc and conforms to federal Specifications WWN-351. Our brass nipples meet ANSI/ASTM B687-96 and MS51846 for standard brass nipples, and MS51872 for extra heavy brass nipples.
  • Threads: Nipples are threaded with American Standard taper pipe threads (NPT) in accordance with screw-thread standard for Federal Services Handbook H-58. ANSI B1.20.1
Specifications:
  • ASTM B43
  • ANSI B1.20.1, WW-N-351
  • ANSI/ASTM B687-96
  • NSF-61 Approved
  • MS51846 STD Brass Nipples
  • RoHS compliant
Standard Red Brass 85%
Pipe With Threaded Ends Specifications:
Pipe Size
in		 Dimensions Allowable Pressure
Pounds per Square Inch
OD ID Wall Thickness at 100° at 200° at 300° at 400°
1/8" .405" .281" .062" 370 370 320 140
1/4" .540" .376" .082" 870 870 760 330
3/8" .675" .495" .090" 890 890 780 340
1/2" .840" .626" .107" 900 900 790 340
3/4" 1.050" .822" .114" 810 810 710 310
1" 1.315" 1.063" .126" 630 630 560 240
1-1/4" 1.660" 1.368" .146" 690 690 610 260
1-1/2" 1.900" 1.600" .150" 630 630 560 240
2" 2.375" 2.063" .156" 540 540 480 210
2-1/2" 2.875" 2.501" .187" 450 450 390 170
3" 3.500" 3.062" .219" 510 510 450 190
3-1/2" 4.000" 3.500" .250" 570 570 500 220
4" 4.500" 4.000" .250" 510 510 440 190
4-1/2" 5.000" 4.500" .250" - - - -
5" 5.563" 5.063" .250" 410 410 360 160
6" 6.625" 6.125" .250" 340 340 300 130
Part Number Length Approx. Wt.
lbs.
40140
(40-140)		 Close (1-3/4") 0.46
40141
(40-141)		 2" 0.53
40142
(40-142)		 2-1/2" 0.66
40143
(40-143)		 3" 0.79
40144
(40-144)		 3-1/2" 0.93
40145
(40-145)		 4" 1.06
40146
(40-146)		 4-1/2" 1.19
40147
(40-147)		 5" 1.32
40148
(40-148)		 5-1/2" 1.46
40149
(40-149)		 6" 1.59
40150
(40-150)		 7" 1.85
40151
(40-151)		 8" 2.12
40152
(40-152)		 9" 2.38
40153
(40-153)		 10" 2.65
40154
(40-154)		 11" 2.91
40155
(40-155)		 12" 3.18
40156
(40-156)		 18" 4.77
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
