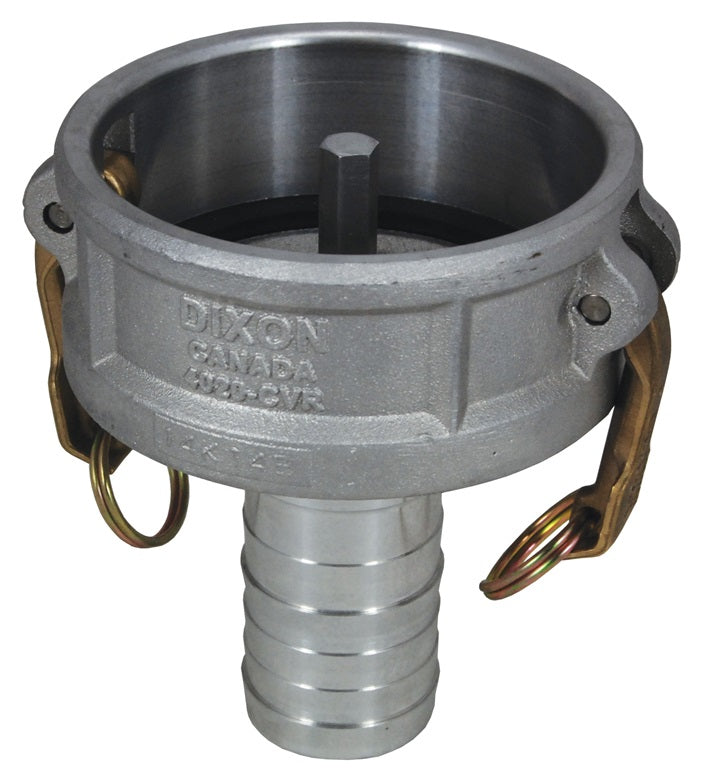

4020-CVR-AL by Dixon Valve | Vapor Recovery Coupler with Probe | 4" Coupler x 2" Hose Shank | Aluminum

4020-CVR-AL by Dixon Valve | Vapor Recovery Coupler with Probe | 4" Coupler x 2" Hose Shank | Aluminum

Save $47.10 Save $47.10
$117.75
$117.75 - $117.75
$117.75
$70.65
$70.65 - $70.65
$70.65

Dixon Valve
Tank Truck | Coupler with Probe x Hose Shank

For use with 3" vapor hose.

Not intended for liquid service, for vapor recovery only.
Specifications for Variant SKU: 4020-CVR-AL Dixon
Brand: Bayco
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 4in Female Cam & Groove, 2in Hose Barb
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Cast aluminum body.
  • Bronze arms.
  • Stainless steel pins and finger rings.
  • Nitrile Rubber gasket. (VR4030CS-AL has an FKM O-ring poppet seal).
  • Probe.
Material:
  • Aluminum
Safety Notes:
  • The Dixon replacement handle assemblies will not work on these fittings
  • Not intended for liquid service, for vapor recovery only.
Aluminum
Part Number		 Coupler Size Hose Shank Size Description Fuel Compatibility
VRC3000AL 3" 3" - Gasoline, Diesel, up to E100 and B20 biofuels
4020-CVR-AL 4" 2" - Gasoline, Diesel, up to E100 and B20 biofuels
4030-CVR-AL 4" 3" No Poppet Gasoline, Diesel, up to E100 and B20 biofuels
VR4030CS-AL* 4" 3" Poppet Gasoline, Diesel, up to E100 and B20 biofuels
VR4030CS-SH** 4" 3" Floating Bridge Poppet Gasoline, Diesel, up to E100 and B20 biofuels
400-CVR-AL 4" 4" No Poppet Gasoline, Diesel, up to E100 and B20 biofuels
VR4040CS-AL** 4" 4" Floating Bridge Poppet Gasoline, Diesel, up to E100 and B20 biofuels

* Interchanges with all competitor vapor valves except Civacon #633LVH (special bulb design).
** 2 Superior interface with air interlock
