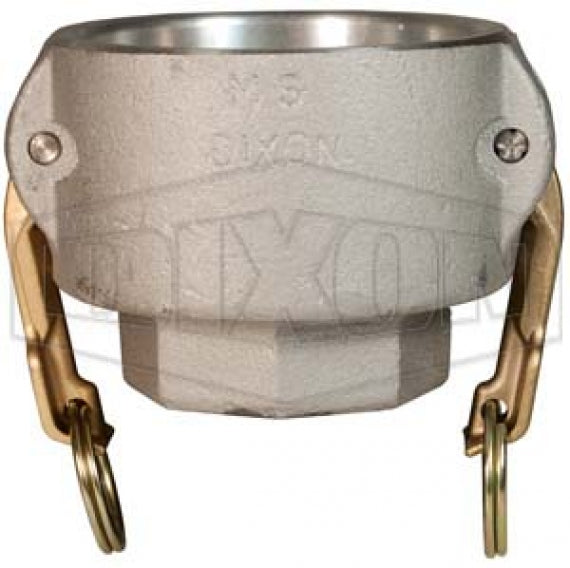

4030-D-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupler | Type D | 4" Coupler x 3" Female NPT | Aluminum

4030-D-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupler | Type D | 4" Coupler x 3" Female NPT | Aluminum

$74.96

Dixon Valve
Cam & Groove Reducer (Jump Size) Coupler | Type D | Coupler x Female NPT

Designed for use with liquids.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 4030-D-AL Dixon
MAWP: 100
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 4in Female Cam & Groove X 3in Female NPT
Material(s): Aluminum
Features:
  • Precision machined to rigid tolerances.
  • Stainless pins will not rust or bind, providing great strength and safety.
  • Recess holds gasket firmly in place - ensures proper placement.
Construction:
  • Nitrile Rubber gasket.
  • Durable stainless steel cam arm pins.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 Brass
Part Number		 316 Stainless Steel
Part Number		 Size
Coupler x Female NPT		 Maximum Operating Pressure
1510-D-AL - 1510-D-SS* 1-1/2" x 1" 250 PSI
2015-D-AL - 2015-D-SS 2" x 1-1/2" 250 PSI
3020-D-AL - 3020-D-SS 3" x 2" 125 PSI
4030-D-AL 4030-D-BR 4030-D-SS* 4" x 3" 100 PSI
5040-D-AL* - - 5" x 4" 75 PSI
6040-D-AL* - - 6" x 4" 75 PSI

* Parts are produced as a welded fabrication.
