406-20S Aeroquip by Danfoss | Female SAE PTT Swivel 100R5 Reusable Hose Fitting | -20 Female SAE PTT Swivel x -20 Reusable Hose End | Steel

406-20S Aeroquip by Danfoss | Female SAE PTT Swivel 100R5 Reusable Hose Fitting | -20 Female SAE PTT Swivel x -20 Reusable Hose End | Steel

Name: 406-20S Aeroquip by Danfoss | Female SAE PTT Swivel 100R5 Reusable Hose Fitting | -20 Female SAE PTT Swivel x -20 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 406-20S Danfoss
Price: 158.53 USD
Availability: InStock

$158.53 - $158.53

$158.53

$158.53 - $158.53

$158.53

Aeroquip® by Danfoss

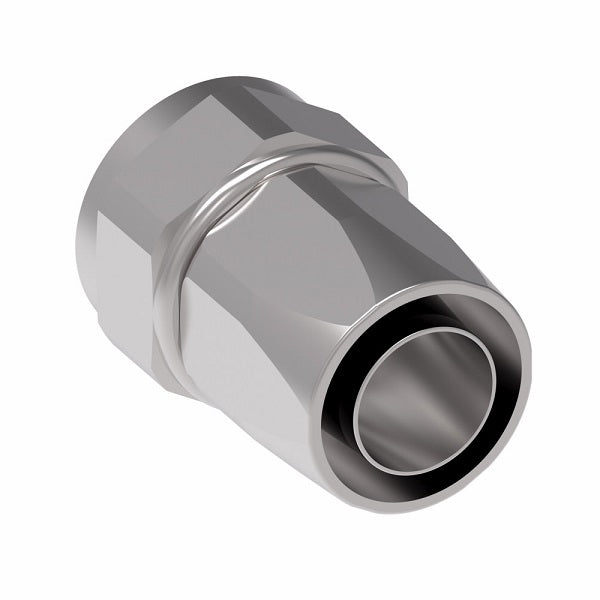

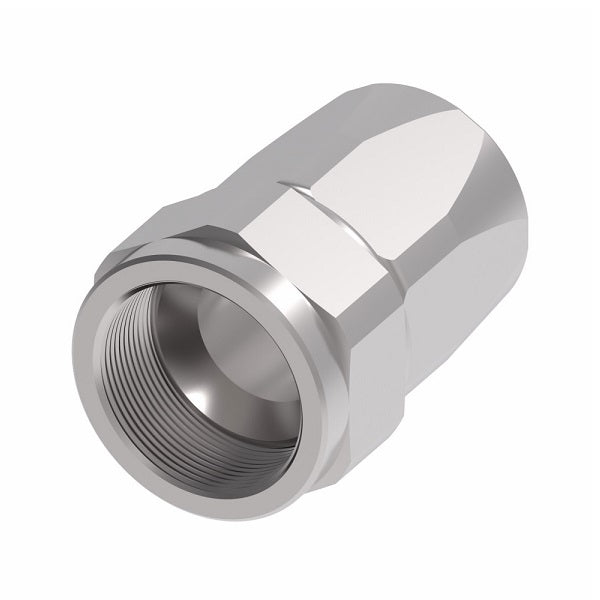

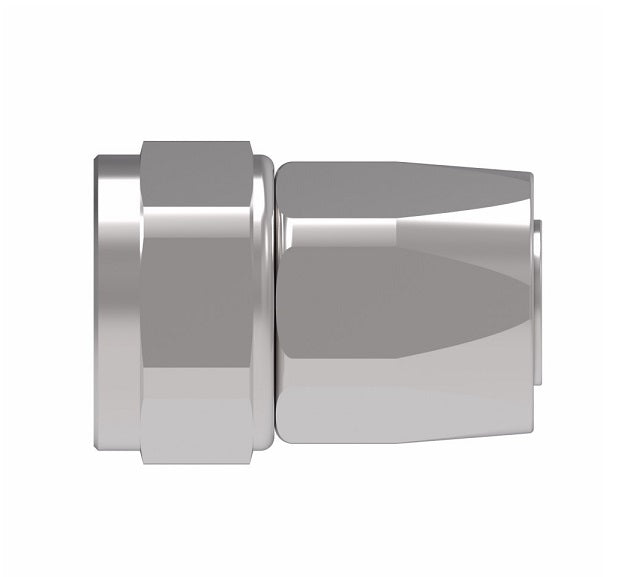

SAE 100R5 Style Reusable Hose Fitting - Female SAE PTT Swivel - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 406-20S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Female SAE PTT, 1-1/4in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 Series \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Brass Part Number	Hose Size	Thread	A	D	EØ
406-16S*	-	-16	1-5/16-14	2.60"	1.33"	0.82"
406-20S*	-	-20	1-5/8-14	2.86"	1.50"	1.05"

*Requires tools for assembly

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
