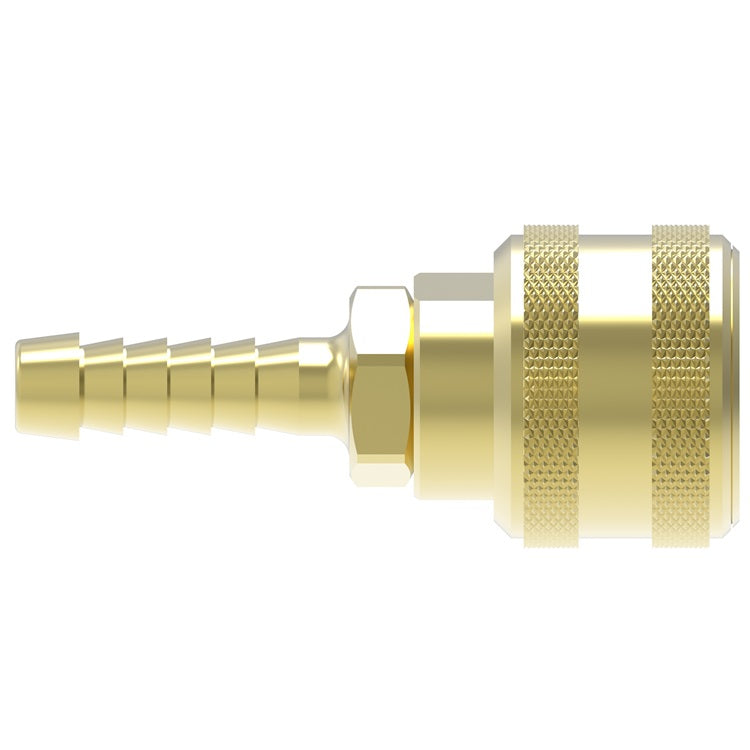

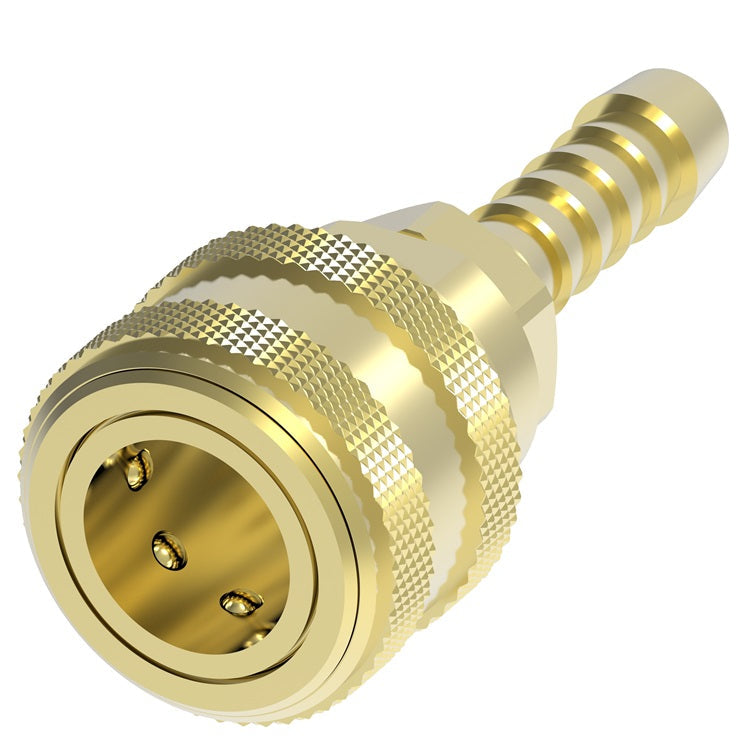

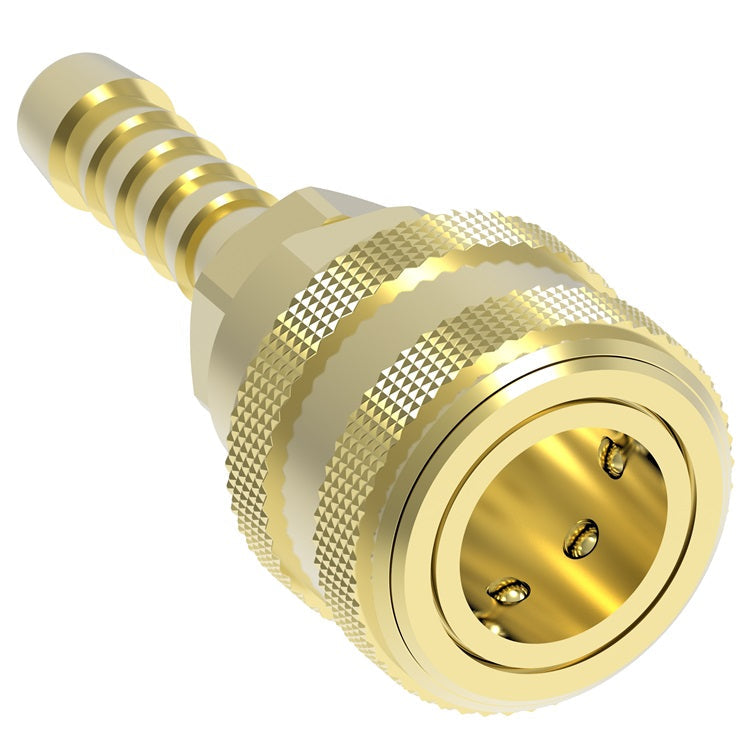

40800 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 4000 Series | Hose Barb End | 1/2" Hose ID x 3/8" Body Size | Socket | NBR Seal | Brass

$39.38 - $39.38

$39.38

$39.38 - $39.38

$39.38

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 4000 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 3000/4000/5000/6000 Series Industrial Interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids.

This series sets the industry standard for pin lock style pneumatic couplings.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 40800 Danfoss
Brand:	Hansen
Series:	4000 Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Features:	Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
Applications & Markets:	Industrial Breathing Air General Pneumatics Maintenance & Repair Fluid Transfer
Materials:	Standard body material: Brass Standard seal material: Nitrile (NBR)
Specifications:	All sizes accept US industrial Interchange; 1/4" & 1/2" also accept ISO 6150 Series B and A-A-59439 plugs/males.

Series	Body Size	Max. Operating Pressure		Min. Burst Pressure		Rated Flow
4000	3/8"	69 bar	1,000 psi	276 bar	4,000 psi	1,274 lpm	45 gpm

Interchangeability
All Sizes	1/4" & 1/2"
US Industrial Interchange	ISO 6150 Series B A-A-59439 (former MIL-C-4109)


Socket/Female (Figure 1)				Plug/Male (Figure 2)
4000 Series \| Sockets
Part Number	Coupling Type	Body Size	Hose ID	End Type	Material	Figure	Dimensions
Part Number	Coupling Type	Body Size	Hose ID	End Type	Material	Figure	A	B
40400E	Socket/Female	3/8"	1/4"	Hose Stem	Brass	1	2.82" (71.63mm)	1.38" (35.05mm)
40600	Socket/Female	3/8"	3/8"	Hose Stem	Brass	1	2.82" (71.63mm)	1.38" (35.05mm)
40800	Socket/Female	3/8"	1/2"	Hose Stem	Brass	1	2.82" (71.63mm)	1.38" (35.05mm)
4000 Series \| Plugs
Part Number	Coupling Type	Body Size	Hose ID	End Type	Material	Figure	Dimensions
Part Number	Coupling Type	Body Size	Hose ID	End Type	Material	Figure	C	D
404	Plug/Male	3/8"	1/4"	Hose Stem	Steel	2	2.34" (59.44mm)	0.72" (18.29mm)
406	Plug/Male	3/8"	3/8"	Hose Stem	Steel	2	2.34" (59.44mm)	0.63" (16.00mm)
408	Plug/Male	3/8"	1/2"	Hose Stem	Steel	2	2.34" (59.44mm)	0.81" (20.57mm)
B406E	Plug/Male	3/8"	3/8"	Hose Stem	Brass	2	2.34" (59.44mm)	0.63" (16.00mm)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
