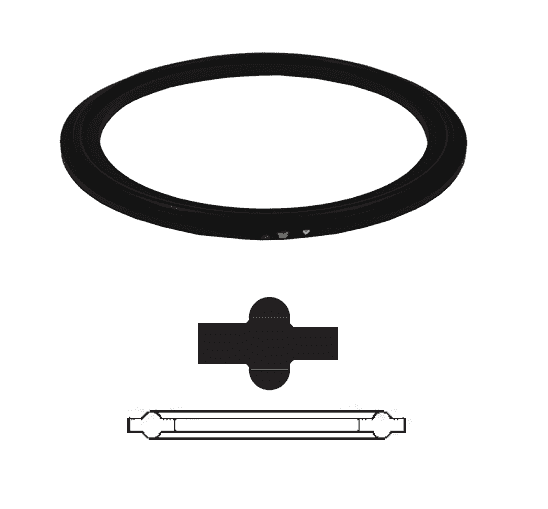

40MP-E300 Dixon 3" EPDM Sanitary Clamp Gasket - Black

40MP-E300 Dixon Valve 3" EPDM Sanitary Clamp Gasket - Black - Pack of 25

Save $3.72 Save $3.72
$33.47
$33.47 - $33.47
$33.47
$29.75
$29.75 - $29.75
$29.75

Dixon Sanitary Fittings Sanitary Clamp Gasket - EPDM Clamp Gasket - Black

Package Quantity: 25 Gaskets

Specifications for Variant SKU: 40MP-E300 Dixon | 25 |
Seal Material(s): EPDM
Features:
  • Color Code: Three green dots
  • Meets 21CFR 177.2600
  • Passed U.S.P. Class VI Cytotoxicity testing.
  • Peroxide cured.
  • Gasket material approved by (3A), USDA.
  • PSI Service Ratings for the sanitary clamps DO NOT APPLY to connections (1" and above) using any PTFE gaskets, due to the potential for cold flow under normal operating conditions.
  • PTFE gaskets, when used with any clamp, are likely to leak at pressures far below the published service ratings. This restriction does not apply to the fractionally sized 1/2" and 3/4" connections, due to their recessed, fully contained design.
Sanitary Size Gasket ID Gasket OD OD of Clamp End ID of Fitting Sanitary Size Gasket ID Gasket OD OD of Clamp End ID of Fitting
1/2" 0.46 0.86 0.992 0.370 3" 2.870 3.579 3.579 2.870
3/4" 0.64 0.86 0.992 0.620 4" 3.834 4.682 4.682 3.834
1" 0.870 1.984 1.984 0.870 6" 5.782 6.562 6.562 5.782
1-1/2" 1.370 1.984 1.984 1.370 8" N/A N/A 8.602 7.782
2" 1.870 2.516 2.516 1.870 10" N/A N/A 10.570 9.782
2-1/2" 2.370 3.047 3.047 2.370 12" N/A N/A 12.570 11.760
Part Number Size Color Code Weight (Lbs.)
42MP-E50 1/2" Three green dots 0.0050
42MP-E75 3/4" Three green dots 0.0020
40MP-E100 1" Three green dots 0.0100
40MP-E150 1-1/2" Three green dots 0.0070
40MP-E200 2" Three green dots 0.0050
40MP-E250 2-1/2" Three green dots 0.0115
40MP-E300 3" Three green dots 0.0200
40MP-E400 4" Three green dots 0.0250
40MP-E500 5" Three green dots 0.0350
40MP-E600 6" Three green dots 0.0300
