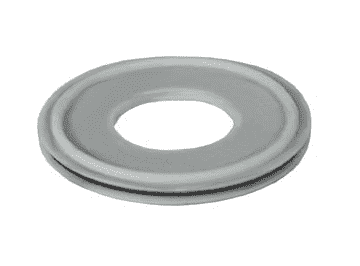

40MPF-XW100 Dixon 1" Silicone Flanged Sanitary Clamp Gasket - White

40MPF-XW100 Dixon Valve 1" Silicone Flanged Sanitary Clamp Gasket - White

Save $2.19 Save $2.19
$5.47
$5.47 - $5.47
$5.47
$3.28
$3.28 - $3.28
$3.28

Dixon Sanitary Clamp Gaskets - Silicone Flanged Clamp Gaskets - White

Specifications for Variant SKU: 40MPF-XW100 Dixon
Seal Material(s): Silicone
Features:
  • Color Code: Pink dot
  • Peroxide cured.
  • Meets 21CFR 177.2600
  • Passed USP Class VI Cytotoxicity testing.
  • Not recommended for use with bolted clamps.
Sanitary Size Gasket ID Gasket OD OD of Clamp End ID of Fitting Sanitary Size Gasket ID Gasket OD OD of Clamp End ID of Fitting
1/2" 0.46 0.86 0.992 0.370 3" 2.870 3.579 3.579 2.870
3/4" 0.64 0.86 0.992 0.620 4" 3.834 4.682 4.682 3.834
1" 0.870 1.984 1.984 0.870 6" 5.782 6.562 6.562 5.782
1-1/2" 1.370 1.984 1.984 1.370 8" N/A N/A 8.602 7.782
2" 1.870 2.516 2.516 1.870 10" N/A N/A 10.570 9.782
2-1/2" 2.370 3.047 3.047 2.370 12" N/A N/A 12.570 11.760
Part Number Size Color Code Weight (Lbs.)
40MPF-XW100 1" Pink dot 0.0150
40MPF-XW150 1-1/2" Pink dot 0.0140
40MPF-XW200 2" Pink dot 0.0115
40MPF-XW250 2-1/2" Pink dot 0.0175
40MPF-XW300 3" Pink dot 0.0200
40MPF-XW400 4" Pink dot 0.0300
40MPF-XW600 6" Pink dot 0.0400
40MPF-XW800 8" Pink dot 0.1000
40MPF-XW1000 10" Pink dot 0.0700
40MPF-XW1200 12" Pink dot 0.5000
