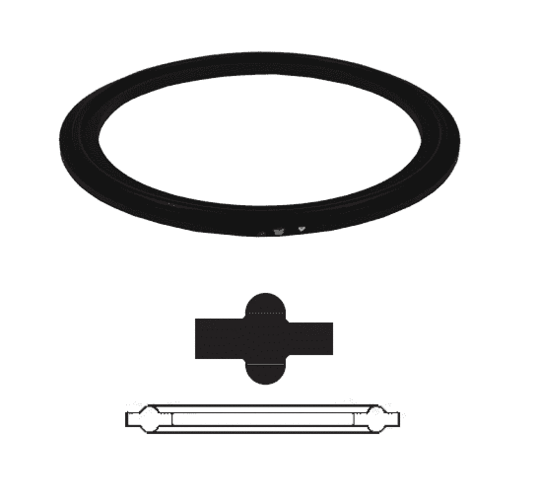

40MP-E500 Dixon Valve 5" EPDM Sanitary Clamp Gasket - Black

Save $1.20 Save $1.20
Original price $10.81
Original price $10.81 - Original price $10.81
Original price $10.81
Current price $9.61
$9.61 - $9.61
Current price $9.61

Dixon Sanitary Fittings Sanitary Clamp Gasket - EPDM Clamp Gasket - Black

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 40MP-E500 Dixon
Seal Material(s): EPDM
Features:
  • Color Code: Three green dots
  • Meets 21CFR 177.2600
  • Passed U.S.P. Class VI Cytotoxicity testing.
  • Peroxide cured.
  • Gasket material approved by (3A), USDA.
  • PSI Service Ratings for the sanitary clamps DO NOT APPLY to connections (1" and above) using any PTFE gaskets, due to the potential for cold flow under normal operating conditions.
  • PTFE gaskets, when used with any clamp, are likely to leak at pressures far below the published service ratings. This restriction does not apply to the fractionally sized 1/2" and 3/4" connections, due to their recessed, fully contained design.
Sanitary Size Gasket ID Gasket OD OD of Clamp End ID of Fitting Sanitary Size Gasket ID Gasket OD OD of Clamp End ID of Fitting
1/2" 0.46 0.86 0.992 0.370 3" 2.870 3.579 3.579 2.870
3/4" 0.64 0.86 0.992 0.620 4" 3.834 4.682 4.682 3.834
1" 0.870 1.984 1.984 0.870 6" 5.782 6.562 6.562 5.782
1-1/2" 1.370 1.984 1.984 1.370 8" N/A N/A 8.602 7.782
2" 1.870 2.516 2.516 1.870 10" N/A N/A 10.570 9.782
2-1/2" 2.370 3.047 3.047 2.370 12" N/A N/A 12.570 11.760
Part Number Size Color Code Weight (Lbs.)
42MP-E50 1/2" Three green dots 0.0050
42MP-E75 3/4" Three green dots 0.0020
40MP-E100 1" Three green dots 0.0100
40MP-E150 1-1/2" Three green dots 0.0070
40MP-E200 2" Three green dots 0.0050
40MP-E250 2-1/2" Three green dots 0.0115
40MP-E300 3" Three green dots 0.0200
40MP-E400 4" Three green dots 0.0250
40MP-E500 5" Three green dots 0.0350
40MP-E600 6" Three green dots 0.0300
