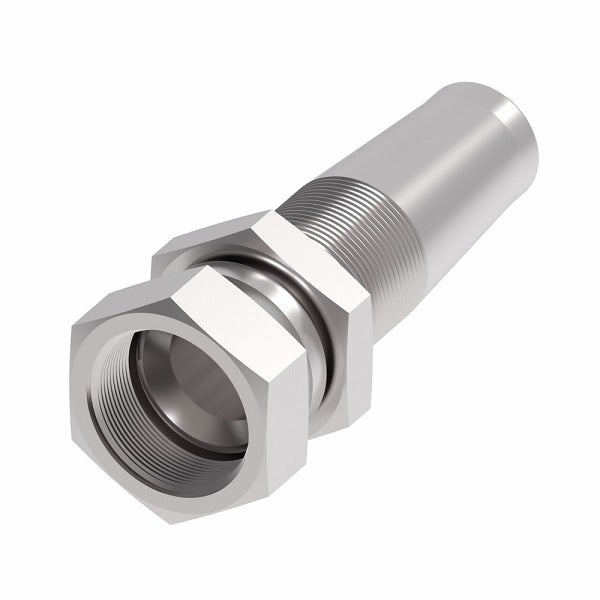

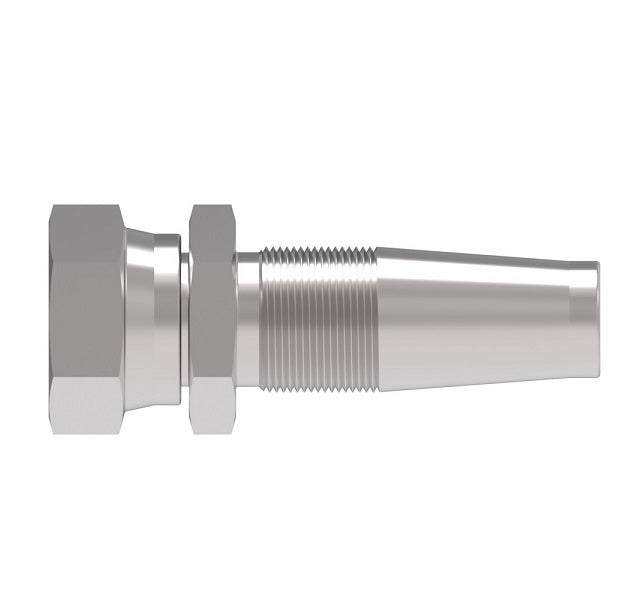

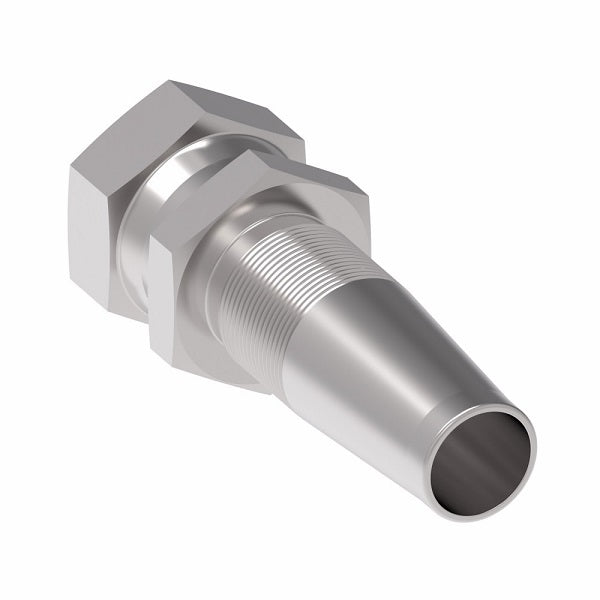

4103-4-4-4S Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel
4103-4-4-4S Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel | Pack of 10
4103-4-4-4S Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel | Pack of 10
4103-4-4-4S Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel

4103-4-4-4S Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$118.20 - $118.20
$118.20
$118.20 - $118.20
$118.20

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Male Pipe - Straight
Specifications for Variant SKU: 4103-4-4-4S Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 1/4in Female JIC, 1/4in Reusable Hose End
Material(s): Steel
Compatible with the following Series: H180 Series  |   1509 Series  |   H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number
Steel 		Nipple Assembly
Part Number
Stainless Steel		 Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash
1RA4FJ4 4103-4-4-4S 259-4103-4-4-4 1RA4 7/16-20 -04 2.50" 1.46" 0.17"
- 4103-4-6-6S 259-4103-4-6-6 - -06 - - -
- 4103-4-8-8S 259-4103-4-8-8 - -08 - - -
- 4103-4-6-4S 259-4103-4-6-4 - -04 - - -
1RA6FJ6 - - 1RA6 9/16-18 -06 2.91" 1.78" 0.31"
- 4103-4-8-6S - - -06 - - -
1RA8FJ8 - - 1RA8 3/4-16 -08 3.18" 1.70" 0.39"
- 4103-4-10-8S - - -08 - - -
- 4103-4-10S - - -10 - - -
1RA12FJ12 4103-4-12S 259-4103-4-12 1RA12 1-1/16-12 -12 3.80" 2.20" 0.61"
- 4103-4-12-10S - - -10 - - -
- 4103-4-16-12S - - -12 - - -
1RA16FJ16 4103-4-16S 259-4103-4-16 1RA16 1-5/16-12 -16 4.33" 2.21" 0.82"
- 4103-4-24S - - -24 - - -
