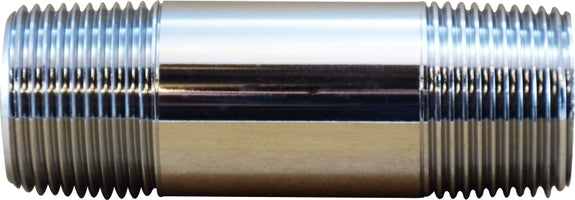

41081 by Midland | Lead Free Nipple | 3/4" Diameter | 1-1/2" Length | Straight | Chrome Plated Brass

Save $6.49

$16.22

$16.22 - $16.22

$16.22

$9.73

$9.73 - $9.73

$9.73

Midland Industries
Chrome Plated Brass Nipple - Lead Free Schedule 40 Seamless Nipple - 3/4" Diameter

Certified by NSF to NSF/ANSI 61 for use in drinking water supplies of pH 6.5 and above.

Inventory @ Manufacturers Warehouse: 50 Units

Specifications for Variant SKU: 41081 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male NPT, 3/4in Male NPT, Some Ends Match
Material(s):	Lead Free Chrome Plated Brass
Applicable Specs & Approvals:	ASTM B43, ANSI B1.20.1, WW-N-351, ANSI/ ASTM B687-96, NSF-61 Approved, MS51846 STD, RoHS Compliant, Lead Free as per the Safe Drinking Water Act
Special Properties:	Lead Free

Statement From Midland Industries:
We hereby certify that to the best of our knowledge and belief the CDA 230 alloy seamless Red Brass Pipe from which our nipples are produced meet the requirements of ASTM Specifications B43 and is free of mercury contamination. The chemical analysis is 85% copper, 15% Zinc and conforms to federal Specifications WWN-351. Our brass nipples meet ANSI/ASTM B687-96 and MS51846 for standard brass nipples, and MS51872 for extra heavy brass nipples. Threads: Nipples are threaded with American Standard taper pipe threads (NPT) in accordance with screw-thread standard for Federal Services Handbook H-58. ANSI B1.20.1
Specifications:
ASTM B43 ANSI B1.20.1, WW-N-351 ANSI/ASTM B687-96 NSF-61 Approved MS51846 STD Brass Nipples RoHS compliant

Standard Red Brass 85% Pipe With Threaded Ends Specifications:
Pipe Size in	Dimensions			Allowable Pressure Pounds per Square Inch
Pipe Size in	OD	ID	Wall Thickness	at 100°	at 200°	at 300°	at 400°
1/8"	.405"	.281"	.062"	370	370	320	140
1/4"	.540"	.376"	.082"	870	870	760	330
3/8"	.675"	.495"	.090"	890	890	780	340
1/2"	.840"	.626"	.107"	900	900	790	340
3/4"	1.050"	.822"	.114"	810	810	710	310
1"	1.315"	1.063"	.126"	630	630	560	240
1-1/4"	1.660"	1.368"	.146"	690	690	610	260
1-1/2"	1.900"	1.600"	.150"	630	630	560	240
2"	2.375"	2.063"	.156"	540	540	480	210
2-1/2"	2.875"	2.501"	.187"	450	450	390	170
3"	3.500"	3.062"	.219"	510	510	450	190
3-1/2"	4.000"	3.500"	.250"	570	570	500	220
4"	4.500"	4.000"	.250"	510	510	440	190
4-1/2"	5.000"	4.500"	.250"	-	-	-	-
5"	5.563"	5.063"	.250"	410	410	360	160
6"	6.625"	6.125"	.250"	340	340	300	130

Crossover Series:
81300-12

Part Number	Length	Approx. Wt. lbs.
41081	1-1/2"	0.16
41082	2"	0.21
41083	2-1/2"	0.27
41084	3"	0.32
41085	3-1/2"	0.37
41086	4"	0.43
41087	4-1/2"	0.48
41088	5"	0.53
41089	5-1/2"	0.59
41090	6"	0.64

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
