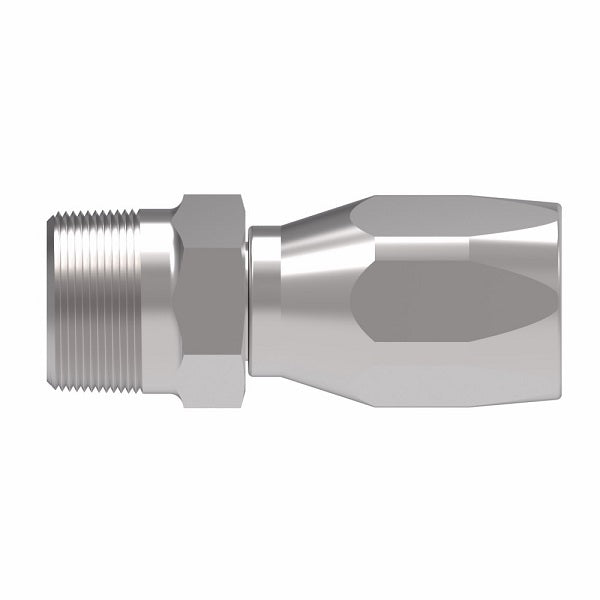

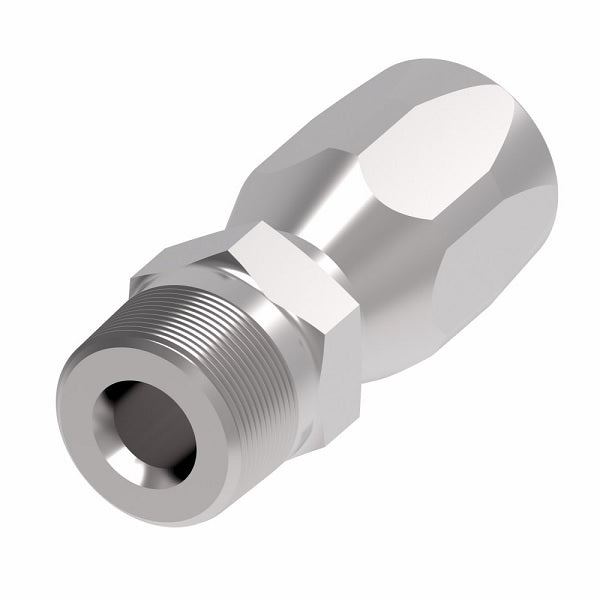

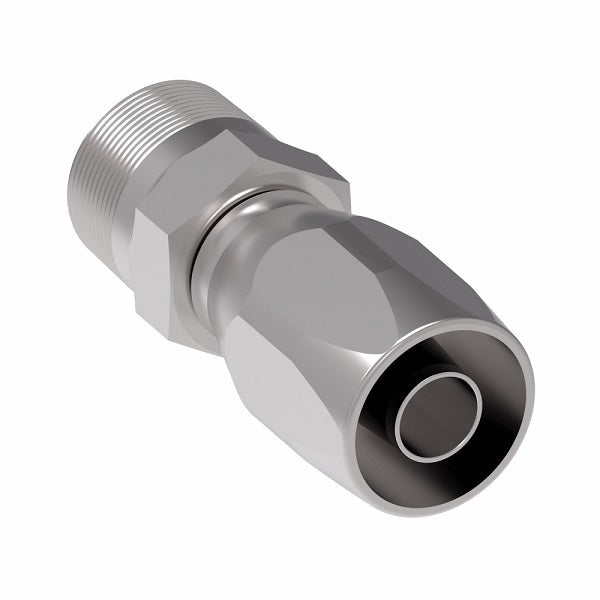

412-2-5S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (3 Piece) | -02 Male Pipe x -05 Reusable Hose End | Steel

412-2-5S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (3 Piece) | -02 Male Pipe x -05 Reusable Hose End | Steel

Name: 412-2-5S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (3 Piece) | -02 Male Pipe x -05 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 412-2-5S Danfoss
Price: 36.24 USD
Availability: InStock

$36.24 - $36.24

$36.24

$36.24 - $36.24

$36.24

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Male Pipe - Straight

Three Piece Fitting.

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 412-2-5S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/8in Male NPT, 5/16in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Brass Part Number	Brass & Bronze Part Number	Stainless Steel Part Number	Hose Size	Thread	A	D	EØ
412-2-4S*	412-2-4B*	-	-	-04	1/8-27	1.68"	0.92"	0.17"
412-4-4S*	412-4-4B*	-	-	-04	1/4-18	1.86"	1.11"	0.17"
412-2-5S*	-	-	-	-05	1/8-27	1.78"	1.00"	0.23"
412-4-5S*	412-4-5B*	-	-	-05	1/4-18	1.96"	1.18"	0.23"
412-4-6S*	412-4-6B*	-	-	-06	1/4-18	2.13"	1.23"	0.30"
412-6-6S*	412-6-6B*	-	-	-06	3/8-18	2.13"	1.23"	0.24"
412-6-8S*	412-6-8B*	-	-	-08	3/8-18	2.48"	1.33"	0.39"
412-8-8S*	412-8-8B*	-	-	-08	1/2-14	2.73"	1.58"	0.36"
412-8-10S*	412-8-10B*	-	-	-10	1/2-14	2.88"	1.59"	0.48"
412-12-10S*	-	-	-	-10	3/4-14	2.94"	1.65"	0.48"
412-12-12S*	412-12-12B*	-	-	-12	3/4-14	3.24"	1.67"	0.61"
412-12-16S	412-12-16B	-	-	-16	3/4-14	2.80"	1.53"	0.82"
412-16-16S	412-16-16B	-	-	-16	1-11-1/2	2.99"	1.72"	0.82"
412-16-20S	412-16-20B	-	-	-20	1-11-1/2	3.20"	1.72"	0.95"
412-20-20S	412-20-20B	-	-	-20	1-1/4-11-1/2	3.23"	1.87"	1.05"
412-20-24S	-	-	-	-24	1-1/4-11-1/2	3.58"	2.12"	1.28"
412-24-24S	412-24-24B	-	259-412-24-24	-24	1-1/2-11-1/2	3.48"	2.03"	1.28"
412-32-32S	412-32-32B	-	-	-32	2-11-1/2	4.05"	2.20"	1.75"

* Requires tool for assembly.
