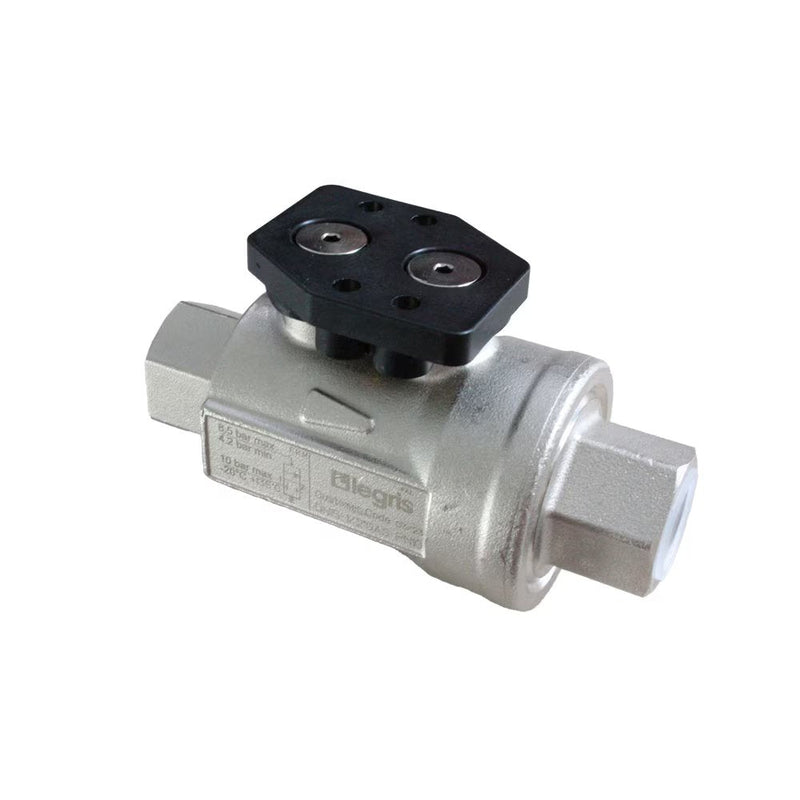

4202 10 17 30 by Parker | Normally Closed Axial Valve w/ EPDM Seal | 3/8" Female BSPP Thread | 22 mm Hex | 98 mm Length | Straight | Nickel-Plated Brass

4202 10 17 30 by Parker | Normally Closed Axial Valve w/ EPDM Seal | 3/8" Female BSPP Thread | 22 mm Hex | 98 mm Length | Straight | Nickel-Plated Brass

Save $53.98 Save $53.98
$470.30
$470.30 - $470.30
$470.30
$416.32
$416.32 - $416.32
$416.32

by Parker Hannifin
Axial Valves:4202..30 Normally Closed Axial Valve with EPDM seal, Female BSPP Thread
Specifications for Variant SKU: 4202 10 17 30 Parker
Series: 4202 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Technical Characteristics:
  • Compatible Fluids: Compressed air, water, industrial fluids, etc.
  • Working Pressure: 10 bar max
  • Working Temperature: -20°C to +150°C (suffix 20 FKM)
    -20°C to 150°C (suffix 30 EPDM)
Advantages:
  • Very compact
  • Simple to install: ready-to-use
  • Two seal materials (FKM, EPDM) for wider chemical and temperature range
  • Pneumatic or electro-pneumatic
  • Three versions: normally closed, normally open and double-acting
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Sub-base: Technical Polymer
  • O-ring: EPDM or FKM
  • Body: Nickel-plated shot blasted brass
  • Lip seal: EPDM or FKM
  • Seat: Nickel-plated brass
  • Seat seal: EPDM or FKM
  • Piston: Chemical nickel-plated brass
Part Number C F G H H1 L Kg
4202 10 17 30 3/8" 22 mm 46 mm 53.5 mm 30.5 mm 98 mm .650 Kg
4202 15 21 30 1/2" 27 mm 52 mm 59 mm 33 mm 113 mm .850 Kg
4202 25 34 30 1" 41 mm 69 mm 76 mm 41.5 mm 144 mm 1.700 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
